Each user gives a totally different use to their equipment, so there are infinite configurations. On this occasion we bring you the analysis of ACEPC T11, which offers a very compact design and designed for an advanced use.
In this particular case, the ACEPC T11 has a Cherry Trail processor in the Intel catalog, specifically the Intel Cherry Trail Atom Z8350 with a base frequency of 1.44 GHz. Together with the processor we will find 4GB DDR3. Finally, being a cheaper computer, has an integrated graphics card, specifically the Intel HD Graphics.

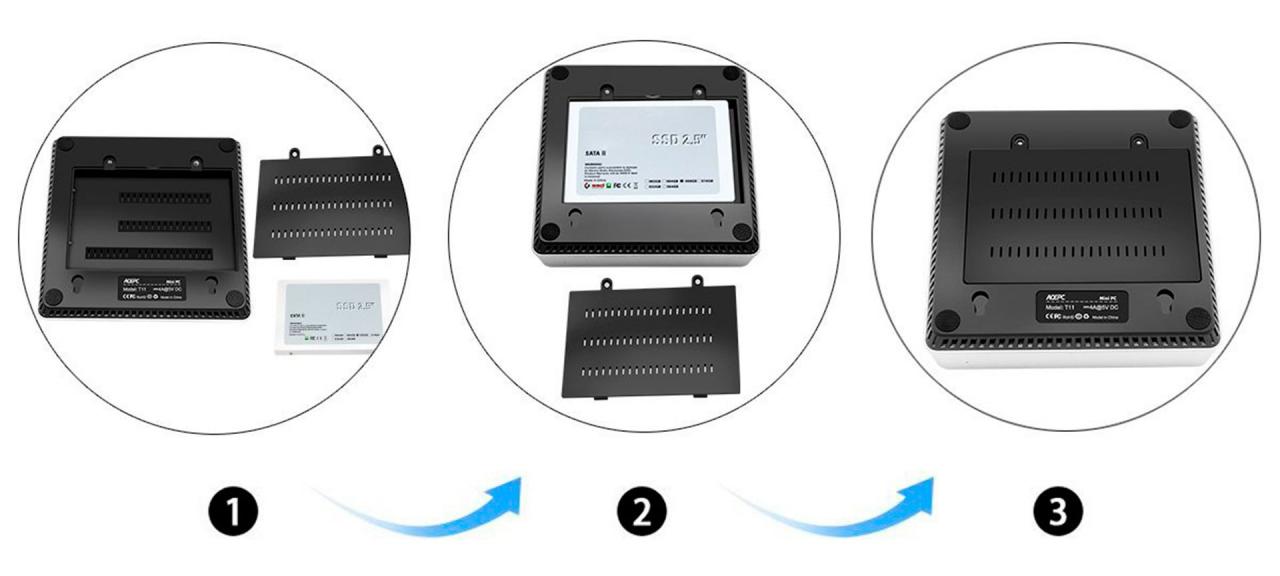

The device itself has a 32GB memory in eMMC format, which allows it to be silent in terms of reading data and occupy the least possible size. In addition, it is allowed to install hard disks using 2.5″ sata with a maximum size of up to 2TB. It is also possible to expand storage through three USB 2.0 connections, a USB 3.0 connection, via microSDcards or with the OTG connection .
As it is a very compact product, its power supply is external to allow the equipment to have the smallest possible size. The power supply itself has an input of 100-240V AC50 / 60Hz and an output of DC5V-4A.
Being connected to the network is essential to play with our friends or to be informed of everything. Therefore, it has a LAN port (100M) and the possibility to connect via WiFi Dual Band (2.4 / 5GHz). It also includes Bluetooth 4.0 wireless connection to connect any device and even the controls of the Xbox One S or the PlayStation 4 without the need to buy any adapter.

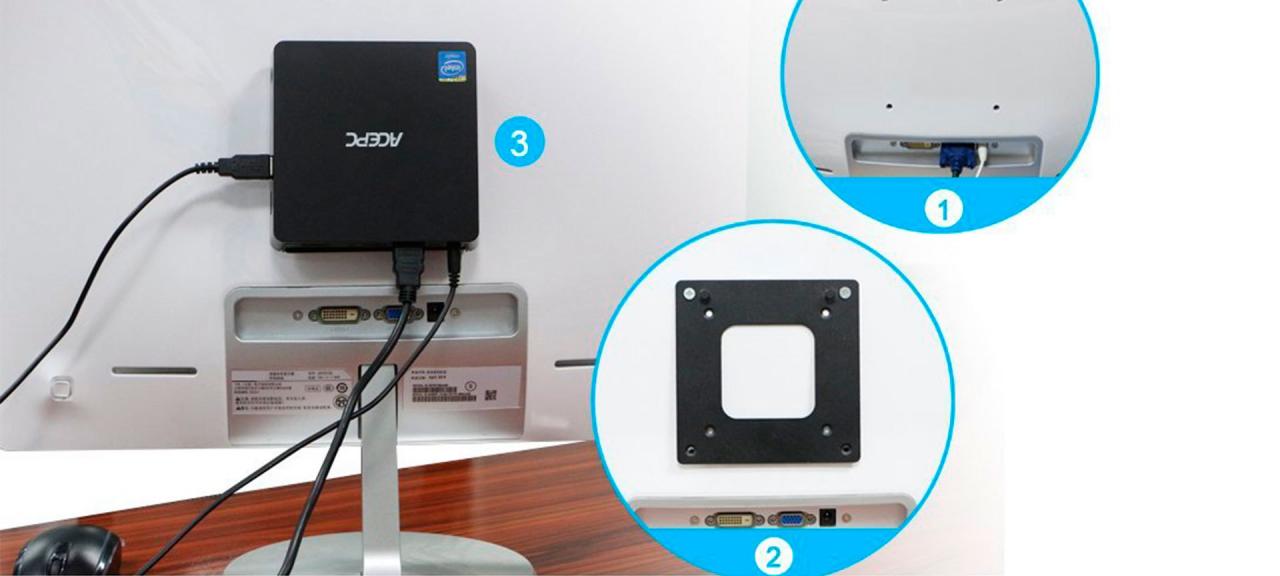

The package itself is equipped with a VESA support to hang the product behind any monitor (compatible with VESA). In this way, everything will be much more hidden and collected, perfect for any office or for the living room of your home.
As usual, we will talk about the content of the packaging and that we will find inside it. The packaging stands out for its predominance of black and blue. In the front we will find an aerial image of ACEPC, along with some features. Both the left and right side is for the name of the product and in the back we will find the rest of the specifications.

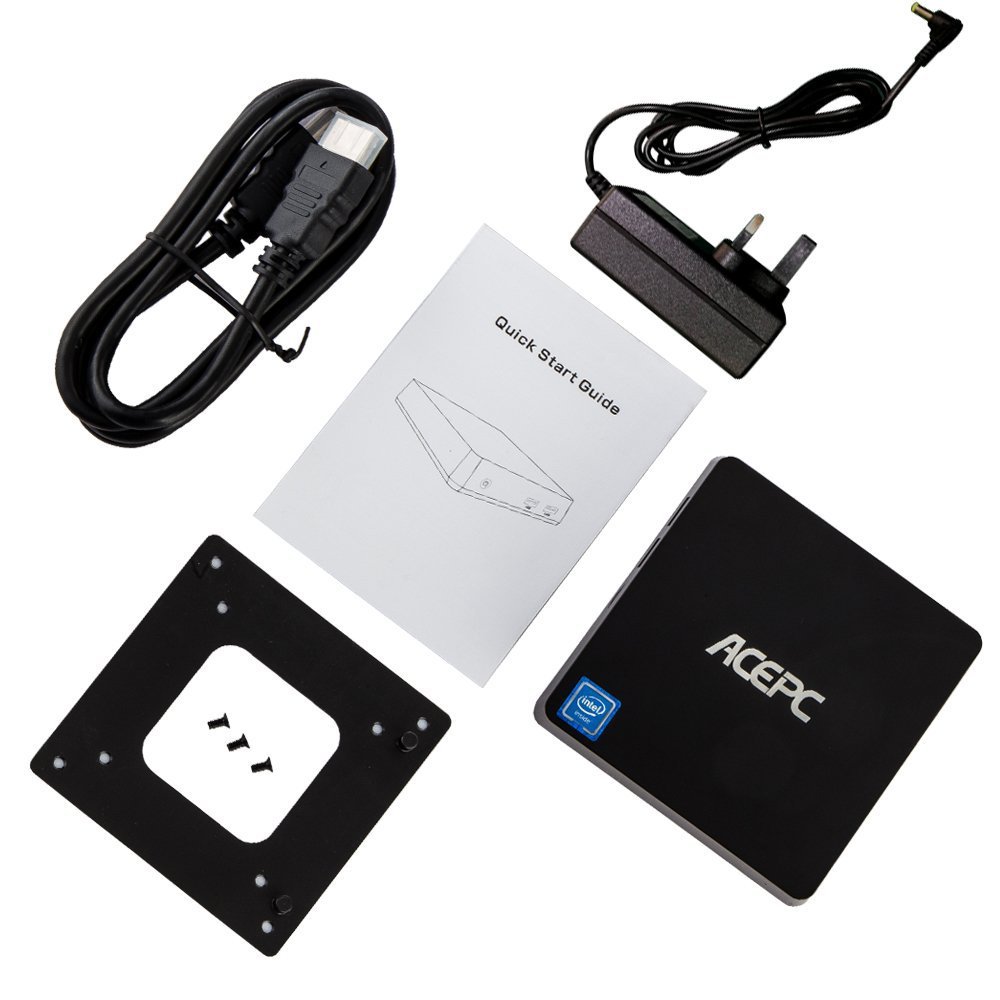

Inside the box we will find the ACEPC T11 computer, the power supply, an HDMI cable, the VESA support and the user guide.

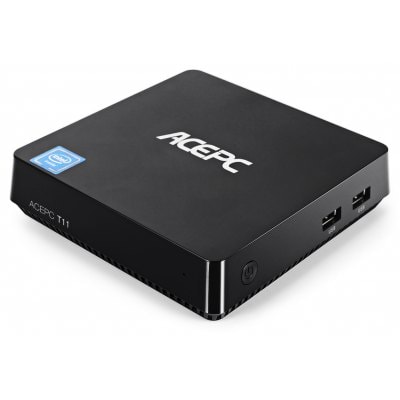

What stands out most from the design of the ACEPC T11 is that it has a compact formatto be as portable as possible. Therefore, its measurements are 12.50 x 12.50 x 3.00 centimeters and only 320 grams .
The equipment itself is only equipped with a single button and several connections. On the front we only have the model printed and a LED status indicator. On the left side we will find a USB 2.0 port, a USB 3.0 port and the microSD reader. On the right side we will find two USB 2.0 ports and the power button.
Like any computer, it has several connections in the back, so we have the following connections:
Like any laptop or PC, you must pass a series of tests to see if its performance is ideal or not. Therefore I will show you some Benchmarks made.

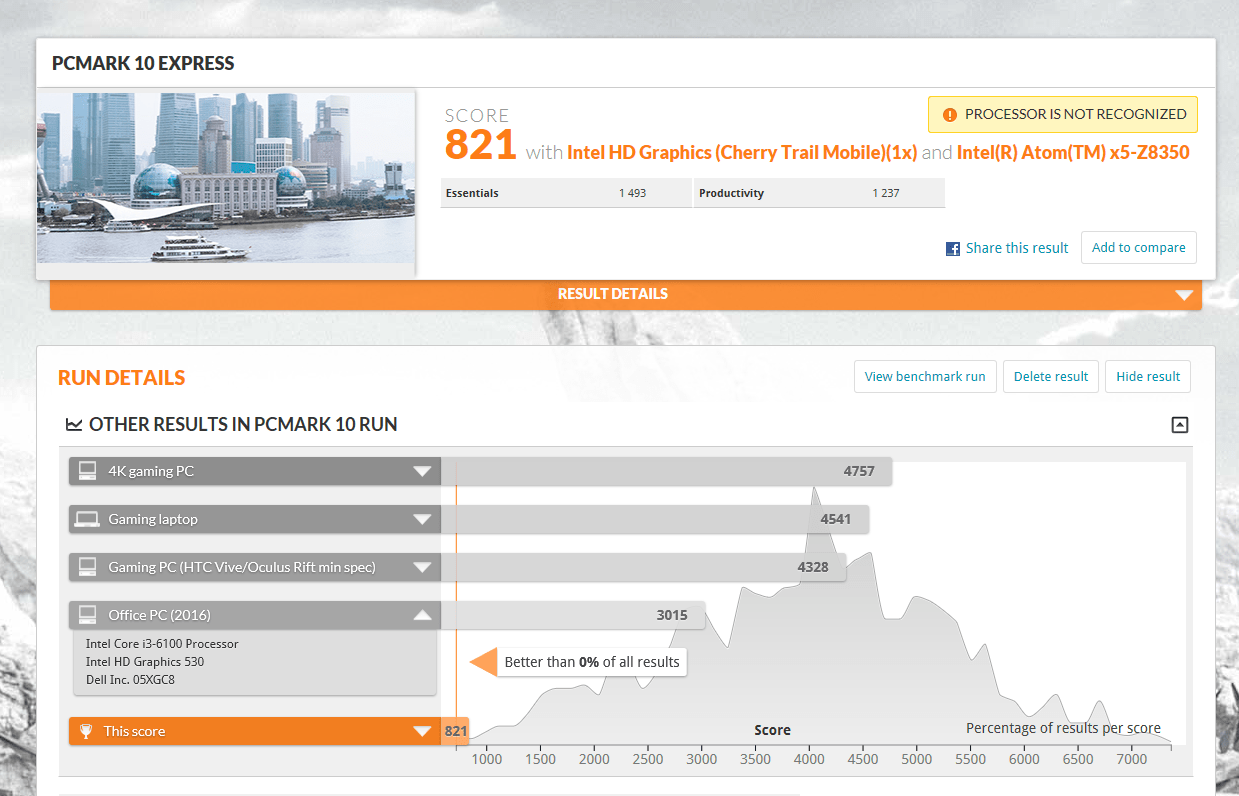

PCMark 10 allows us to create different situations to check the performance of our team. The PCMARK 10 test focuses on essential programs, productivity and content creation, so the result has been 821.
No doubt it does not offer great results, but still perfectly meets for an office use.

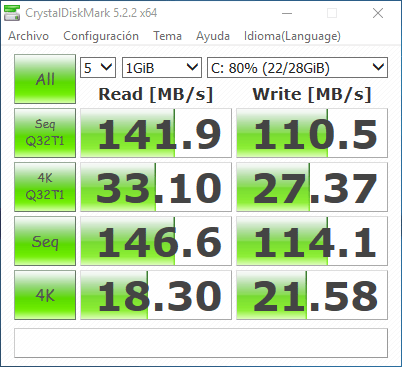

Since the computer is prepared with an eMMC memory and the possibility of connecting a hard disk by S-ATA, I wanted to pass the speed tests to get the results. Only tests have been passed to the eMMC memory because it is included and the speeds have been 142 MB / s in the reading and 110 MB / s in the writing .
Honestly I expected other speeds because the system loads pretty fast. But with tests in hand I can assure you that your internal memory does not offer great speed.

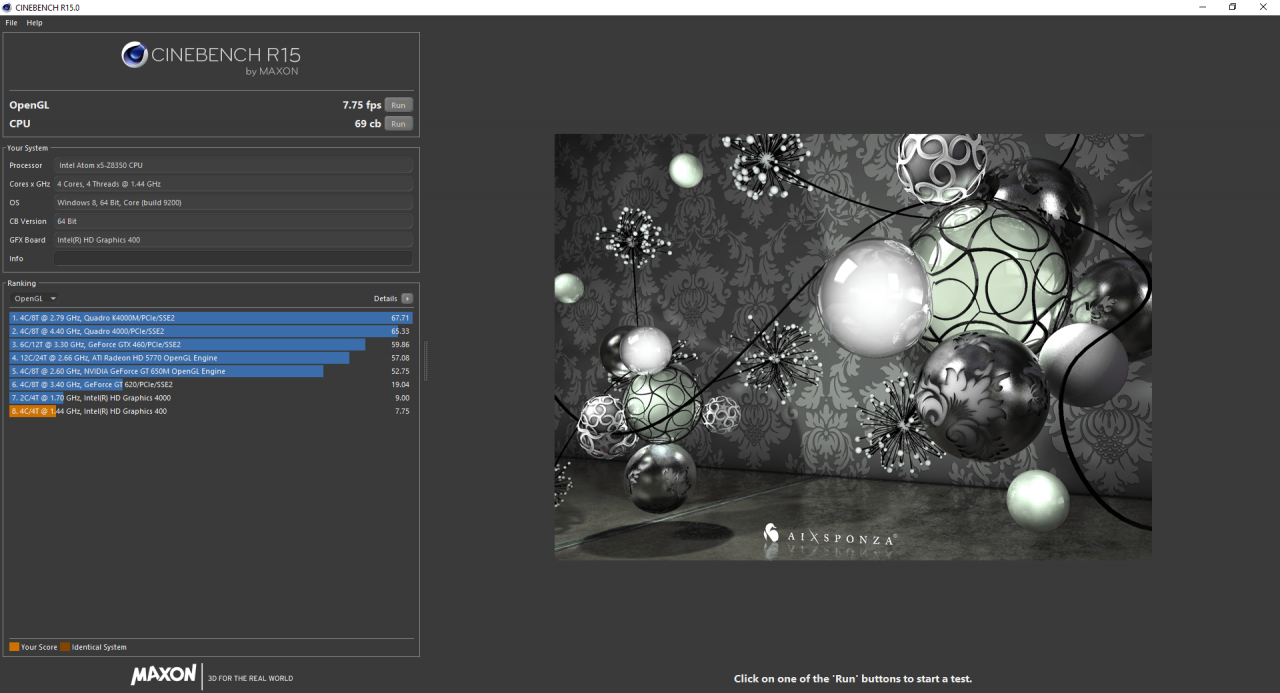

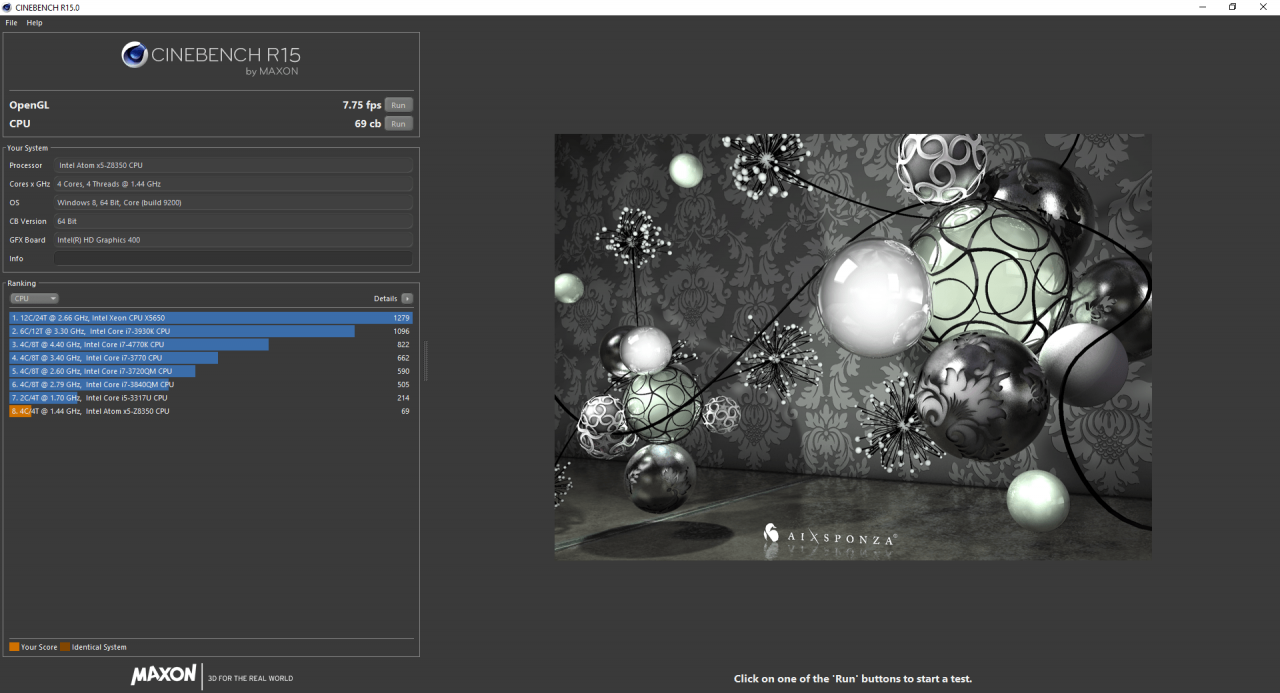

The test has been passed for both the OpenGL and the CPU. In both tests good results have been obtained as can be seen below:
Today anyone can use a computer for the needs they need, in this case AEPC allows users to enjoy a computer for office automation and multimedia use at a very affordable price, allowing it to be very affordable to everyone. In addition, being compact allows it to be carried anywhere and even placed behind the monitor / television.
Since it is a very focused team for multimedia use, it has good connectivity through sufficient USB connections and having WiFi and Bluetooth. Coupled with the fact that the equipment itself is very silent and barely emits noise.
The most negative is that its connection by Ethernet network , since this is not Gigabit and therefore will only reach 100MB of connection at most. Another of its negative points is the speed of the eMMC memory , since it is a bit limited.
In conclusion, the ACEPC T11 is a good option if you are looking for a low-priced equipment for multimedia and basic office automation.
● Built-in Intel Atom Z8350 processor 4GB RAM 32GB eMMC, supports dual-band WiFi, dual display HDMI and VAG, 4K, SATA for 2.5 inch hard disk
● Has 4 USB ports including a USB 3.0, an HDMI output, a VGA output for traditional monitors
● Integrates WiFi and Bluetooth
● The running speed is good. Even 4K Youtube videos work without interruption
● Install behind the old LCD TV and turn it into a multimedia PC
● USB 3.0 port for high-speed data transfer
● With HDMI 1.4 to enjoy 4K x 2K video
● Support standard 2.5 inch SATA HDD up to 2TB
● Mounting design for more convenient. Your monitor must have VESA standard holes
● T11 supports two independent displays without the need for an additional graphics card
Type: Mini PC
System: Windows 10
Processor: Intel Atom X5-Z8350
CPU: Intel Atom X5-Z8350
Core: Quad Core
GPU: Intel Gen 8-LP
RAM: 4G RAM
RAM Type: LPDDR3
ROM: 32G ROM
Maximum External Hard Drives Capacity: 2TB
Decoder Format: H.263,H.264,H.265,HD MPEG4
Video format: 1080P,4K,AVS,H.263,H.264,VP8
Audio format: AAC,AC-3,MP3,WAV
Photo Format: BMP,GIF,JPEG,PNG,TIFF
Support 5.1 Surround Sound Output: No
5G WiFi: Yes
Power Supply: Charge Adapter
Interface: 3.5mm Audio,DC Power Port,HDMI,Micro USB,RJ45,TF card,USB2.0,USB3.0
HDMI Version: 1.4
Other Functions: Others
Power Consumption.: 1100mA
RJ45 Port Speed: 100M
System Bit: 64Bit
WiFi Chip: AP6255
Power Type: External Power Adapter Mode
Product weight: 0.3200 kg
Package weight: 0.8360 kg
Product size (L x W x H): 12.50 x 12.50 x 3.00 cm / 4.92 x 4.92 x 1.18 inches
Package size (L x W x H): 16.00 x 16.00 x 9.00 cm / 6.3 x 6.3 x 3.54 inches
