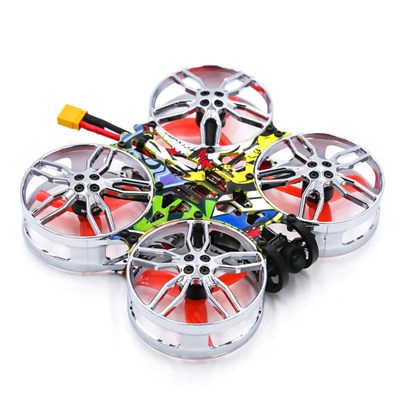

Here is a new Cinewhoop, small format, with a lot of effort put into the packaging: the ducts / propeller protections are painted in silver, the upper carbon plate is displayed in a very colorful pattern – Desigual style. Small size because the camera is based on 2-inch three-bladed propellers, Gemfan 2040. They are powered by AtomRC Photon 1105 to 5000KV brushless motors presented upside down driven by an AtomRC Exceed F405 Mini. This electronics is composed of a flight controller based on an F4 processor, flashed with Betaflight, with 5 UARTs, associated with an ESC 4 in 1 of 20A. AtomRC ensures that the motors are easily replaceable: they are connected with connectors to avoid soldering, and the propeller protections are uncoupled and removable.
It is provided by a RunCam Split 3 Nano camera capable of recording in 1080p at 60 frames per second and a 5.8 GHz analog video transmitter AtomRC Mini with a dipole antenna, capable of transmitting at 25 mw, but also to push the transmission power to 300 mW. There is no battery supplied with the device. AtomRC recommends Lipo 4S from 450 to 850 mAh with an XT30 connector. It also remains to add a radio receiver to take off. The price ? The Cineflex CF100 HD is offered at $178.99 at Banggood.
