AuroraRC FUNNY125

AuroraRC FUNNY125

Brand: Other
Category: Drones
  • 1: Flight control: F411 13A AIO
  • 2: Chip: stm32f411
  • 3: OSD: BETAFLIGHT OSD
  • 4: BEC: 5V 2.5A
  • 5: Gyroscope: mpu6000

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

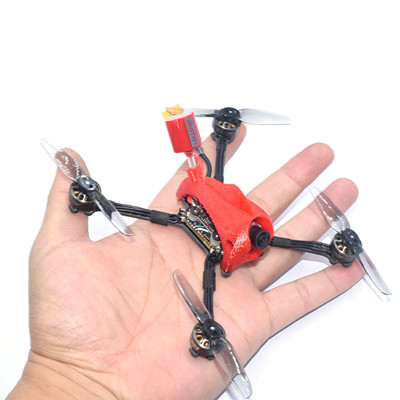

AuroraRC FUNNY125 2.5 Inch 3S Toothpick FPV Racing Drone

The AuroraRC manufacturer proposes a new Toothpick for freestyle flights. It is based on a minimalist carbon structure with a thickness of 2.5 mm and a motor-to-engine diagonal of 12.5 cm. The overall dimensions, without propellers, are 10 x 10 x 3.8 cm. The flight controller is an F411 flashed with Betaflight. It pilots a ESC 4 in 1 of 13A for brushless motors 1103 to 8000KV and 2.5 inch two-bladed propellers HQ T65MMGR. In the box are also HQ T65MMX3GR three-bladed propellers.

The video part is provided by a Caddx 1200TVL FPV Ant camera associated with a 5.8 GHz analog transmitter capable of transmitting at 25 mW, but also at 200 mW, with a Lollipop polarized antenna fixed with an IPEX connector. There is no battery supplied with the Funny125, but AuroraRC recommends Lipos 2S or 3S from 300 to 500 mAh with an XT30 connector (equipped with a capacitor). The unit is delivered either without radio receiver, or with a FrSky XM+ receiver, Flysky AFHDS 2A compatible or a TBS Crossfire Nano RX.

SPECS

Product Details

Features Flight control: F411 13A AIO
Chip: stm32f411
OSD: BETAFLIGHT OSD
BEC: 5V 2.5A
Gyroscope: mpu6000
ESC firmware: blehli_ S (GH30) 13A all in one
VTX: 5.8G 25-200mW
Camera: Caddx ant 1200tvl global WDR mini Cam
Motor: 1103 8000kv brushless motor
Blades: HQ T65MMGR and HQ T65MMX3GR
Specification Brand Name: AuroraRC
Wheelbase: 125mm
Size: 100x100x38mm
Weight: 56g (excluding battery weight)
Frame Bottom Plate Thickness: 2.5mm
Applicable blade: 65mm/2.5inch blade
Applicable battery: 2-3s lipo 300-500mah 70-120c
