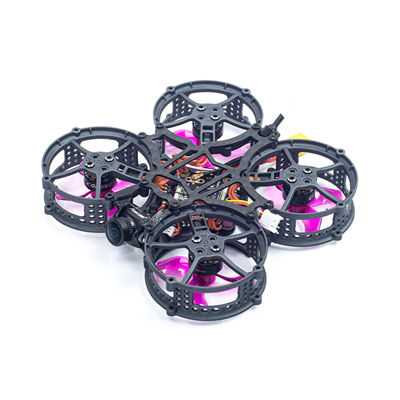

This Tinywhoop offers an unusual structure with propeller protections as high as ducts, but hollowed out. The motors, Mamba Racing 1103 to 8500KV brushless, are placed upside down, with the 1.6 inch quadruple propellers facing downwards.The flight controller is a Mamba F411 AIO apparently flashed with FalcoX from FlightOne, and coupled to a 4 in 1 ESC of 13A DShot600.
It is ensured by a RunCam Nano2 FPV camera associated with a 5.8 GHz Mamba TX400MW video transmitter capable of transmitting at 25 mW (the maximum authorized in France), but also up to 400 mW. Power must be supplied, since there is no battery supplied with the Tina Whoop163. Diatone recommends a 2S or 3S, probably 300 or 450 mAh, with an XT30 connector. The device is available in a version without radio receiver, or with an R-XSR (Non-EU) receiver from FrSky. The price? The Tiny Whoop163 will be offered on Banggood from $152.99.
