Eachine Tyro89

Eachine Tyro89
Brand: Eachine
Category: Drones
  • Feature 1: Drone Wheelbae: 115mm
  • Feature 2: Arm Plate Thickness: 3mm
  • Feature 3: Material: 3K Carbon Fiber
  • Feature 4: Max. Prop Support: 2.5 Inch
  • Feature 5: Motor Mount Hole: 9mm
  • Feature 6: KV: 5500KV

Eachine Tyro89 - Price

Eachine Tyro89 - Specs

Product Details

  • Features
    KV: 5500KV
    Lipo cell: 2-4S
    Weight: 6.2g
    Maximum power: 148W
    Configu-ration: 9N/12P
    Shaft Diameter: 1.5mm
    Motor Stator Diameter: 12mm
    Motor Stator Thickness: 4mm
    Mounting holes distance: 9*9mm
    Mounting holes: φM2
  • Specification
    Brand Name: Eachine
    Model: Tyro89
    Item Name: 15mm F4 DIY 2.5 Inch Toothpick FPV Racing Drone
    Version: PNP ( Without Receiver, Battery, Radio Transmitter)

    Main Chip: STM32F411
    IMU: MPU6000 6-AIX Sensor
    Integrated with OSD
    Input Voltage: 2-4S Lipo
    BEC: 5V 2A
    Support DSMX/ IBUS/ SBUS Receiver UAR Share: UART1-RX
    Mounting Hole: 20x20mm
    Weight: 3.3g

    FOV: 160°
    DNR: 2DNR
    WDR: D-WDR
    Lens: 2.1mm
    TV System: NSTC
    Latency: min 3ms
    Resolution: 1200TVL
    Illumination: 0.005LUX
    Schutter: Rolling Schutter
    Power Input: 3.3V-9V
    Image Sensor: 1/3 inch COMS
    Aspect Ration: 4:3
    Net weight: 5g
    Dimension: 14 * 14 * 16mm
    Package weight: 41g
    Package dimension: 66 * 66 * 32mm

    Transmitting power: 25mW
    Channel: 48CH
    Input voltage: 2.9V~5.5V
    Size: 15x14mm
    - Onboard mini Antenna

    Mounting hole: 1.5mm
    Color: Transparent White
    Quantity: 4 CW & 4 CCW
    Weight: 2.2g/ Pair
  • Package content
    1x Eachine Tyro89 DIY FPV Drone

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

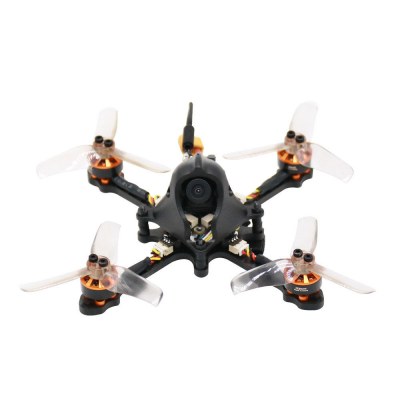

Eachine Tyro89 DIY 115mm F4 2.5 Inch Toothpick FPV Racing Drone

Eachine’s Tyro range includes a new addition, the Tyro89. For the record, the Tyros have the particularity of being delivered as spare parts, to be assembled yourself. It therefore takes a little time, patience, sometimes sweat, soldering before it takes off. On the other hand, the price of the device is ultra-light! The structure is made of carbon, in one piece, 3 mm thick, with a motor motor diagonal of 11.5 cm. The motors are 1204 to 6000KV brushless motors for 2.5 inch 2540 three-bladed propellers.

The motors are controlled by a 4 in 1 ESC of 20A BLheli_S DShot600 via easily disconnected connectors for quick replacement. This ESC is associated with an F411 flight controller based on an F4 processor, with an active OSD, flashed with Betaflight. The video part is based on a Caddx EOS2 1200TVL Turbo camera with an adjustable inclination between 15 and 45°, and a 5.8 GHz transmitter compatible with 48 channels with a power of 25 mW (the maximum authorized in France) equipped with a dipole antenna. To take off with the Tyro89, you need to add a radio receiver and a battery.

Eachine recommends a 350 to 450 mAh Lipo 4S with an XT30 connector – enough to fly fast! The central fairing is designed to protect the electronics from shocks. With its fin, it facilitates the turning manoeuvre of the Flip Over After Crash function. If you have the courage to start micro-welding, you can enjoy a nano racer for a very low price: the Tyro89 is offered at $89.99 at Banggood Store.
