Geelang Titan 120x HD

Geelang Titan 120x HD

Brand: Other
Category: Drones
  • 1: Wheelbase: 120mm
  • 2: Size: 144mm *164mm * 46mm
  • 3: Weight: 97.25g
  • 4: Sensor: MPU-6000
  • 5: Motor Mode: GL1204 KV4500

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

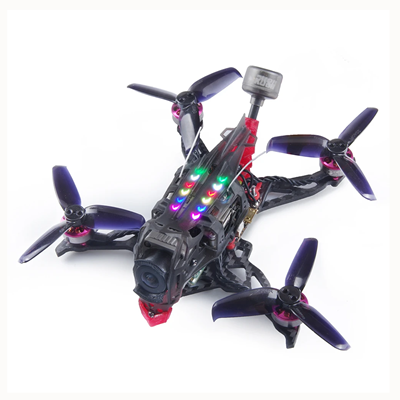

GEELANG DJI Titan 120x HD 120mm 2.5 Inch 3-4S Whoop FPV Racing Drone

This device hides its equipment rather well under a fairing which is very openworked to ensure air circulation. It is equipped with the digital video return system compatible with the DJI Digital FPV System. The camera is DJI’s, but the housing is the Vista from Caddx with its Cherry polarized antenna. The dimensions of the camera are 14.4 x 16.4 x 4.6 cm with a diagonal motor-to-engine distance of 12 cm and a weight of 97.3 grams (without battery). Equipped with the supplied propeller guards, it measures 15.2 x 17.2 x 4.6 cm. The motors are brushless 1204 to 4500KV for 2.5 inch three-blade propellers, Emax Avan or HQProp depending on availability.

It is based on a Geelang GHF411AIO flight controller based on an F4 processor, flashed with Betaflight, coupled with an ESC 4 in 1 of 20A BLheli_S and DShot600. The whole is protected by a central fairing equipped with rows of LEDs. Geelang provides a support made with spacers, a carbon plate and a part to place an Insta360 GO camera. Interesting, especially since this camera has evolved a lot since its release (see here). The device can be delivered without a radio receiver, in which case it can be used with the DJI radio control. If you prefer to use another radio, you can choose a version equipped with an XM+ receiver from FrSky, Crossfire Nano from TBS or S-FHSS from Futaba. Geelang recommends a 4S battery from 650 mAh to 850 mAh to power this device.

SPECS

Product Details

Features Flight controller:GEELANG FC GHF411AIO Version:MATEKF411
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size:33 * 33MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 20A(each) BL he li S 4in1 ESC Dshot600 ready
Built-in Beta flight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 20A continuous peak 25A(5 seconds)
Support BL Heli Suite programmable
Factory firmware: G_H_30_REV16_7.HEX
Default protocol: DSHOT600
Specification Brand name: GEELANG
Item name: Titan DJI 120x HD Whoop Drone
Wheelbase:120mm
Size:144mm *164mm * 46mm
Join the protection circle Size:152mm *172mm * 46mm
Weight: 97.25g (without battery)
Weight:116g(without battery Join the protection circle)
