HK1 R1 TV Box

HK1 R1 TV Box

Brand: Other
Category: TV Box
  • 1: OS:Android 10.0
  • 2: GPU: Penta-Core Mali-450 Up to 750Mhz+
  • 3: CPU: RK3318 Quad-Core 64bit Cortex-A53
  • 4: RAM: DDR3 4GB + ROM: EMMC 128GB
  • 5: WiFi: Built in 2.4G /5G

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

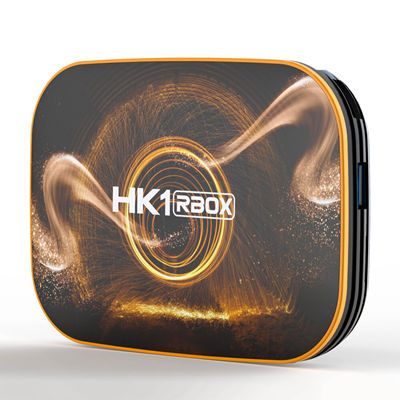

HK1 R1 TV BOX With RK3318 4GB RAM 128GB ROM And Android 10.0

A new model of TV set-top box called HK1 R1 BOX, based on Rockchip RK3318 chipset and running Android 10 operating system, is now available. This is a typical smart TV box, which comes with the usual configuration for such devices, which provides comfortable operation of most modern applications and services. A remarkable feature of this model, in addition to its bright design, is the use of Android 10 as an OS, which is gradually being introduced on the most popular TV boxes based on SoC RK3318.

In the TV Box HK1 R1 BOX integrated the new SoC Rockchip RK3318, which has four ARM Cortex-A53 processors capable of up to 1.5 GHz, and a graphics processor Mali-450mp5, which decodes H.265 and VP9 video at 60 k/s HDR. The set-top box has 2/4 GB of DDR3 RAM and 16/32/64/128 GB of eMMc storage, which we can further expand by inserting a microSD card into the card reader on one of the sides of its case.

It supports dual-band WiFi 2.4G /5G with internal antenna and Bluetooth 4.0. On the perimeter of the case are: USB 3.0 port, a second USB 2.0 port, LAN port 10/100, digital audio output SPDIF, analog AV connector and HDMI 2.0a port, which allows you to output video at a resolution of up to 4K at 60 frames per second. It comes standard with an infrared remote control, HDMI cable, power supply and user manual.


Product Details

Features CPU: RK3318 Quad-Core 64bit Cortex-A53
GPU: Penta-Core Mali-450 Up to 750Mhz+
OS: Android 10.0
Ethernet: 10/100 standard RJ-45
WiFi: Built in 2.4G /5G
bluetooth: 4.0
Video Decode: 4K VP9 Video Decoder, H.265/H.264 Video Decoder, VC-1, MPEG-1/2/4, VP6/8
3D: Support 3D Video Formats
Specification HDR:HDR10 and HLG modes
USB Host :1 x High speed USB 3.0, 3 x USB 2.0
Card Reader:TF cards
HDD File System:FAT16/FAT32/NTFS
Support Subtitle:SRT/SMI/SUB/SSA/IDX+USB
High Definition Video Output:4K (4096x2160 pixel )
LAN:Ethernet: 10/100 standard RJ-45
Wireless:WiFi 2.4G/5G
HD:HD 2.0a for 4k@60Hz
3D:3D video formats
