Holybro Kopis 2 FPV Racing Drone
-
1: 5mm full 3k carbon fiber twill
-
2: 35A Dshot1200 Quadcopter
-
3: Output Power: 0.5mW, 25mW, 200mW, 500mW, 800mW
-
4: Atlatl HV V2 video transmitter
-
5: RunCam Swift Micro FPV camera
Holybro Kopis 2 FPV Racing RC Drone Kakute F7 OSD Atlatl HV V2 800M
The first version of the Holybro Kopis quadrocopter was equipped with a flight controller F4, while Holybro Kopis 2 was equipped with the latest flight controller Kakute F7. On design, we liked the first version, there was a pink-black design. Kopis 2 is all black, even propellers.

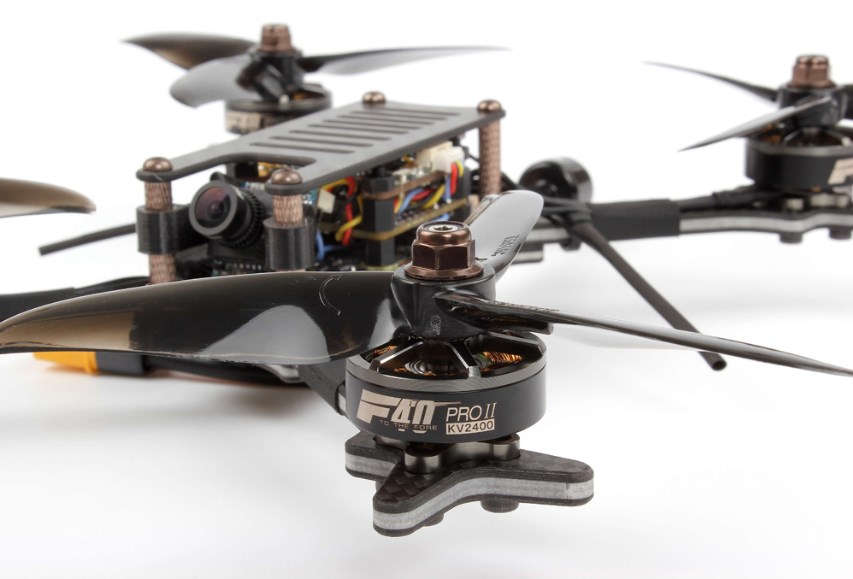

In order to make this drone as powerful as possible, the manufacturer has installed on it brushless motors T-motor F40 PRO2 2400KV with propellers DALPROP Cyclone T5046C.
Description of Kopis 2

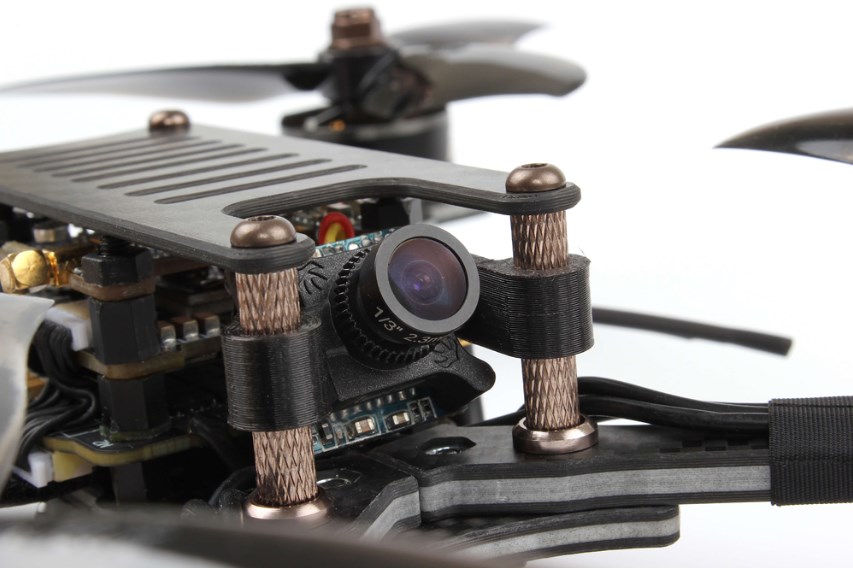

In the first version of the quadrocopter HolyBro installed on board its own FPV camera, but this time they decided to abandon this practice and installed the popular and proven RunCam Swift Mini. Depending on the flight style, the pilot can adjust the angle of the camera. The faster you fly, the more you need the angle of the camera.

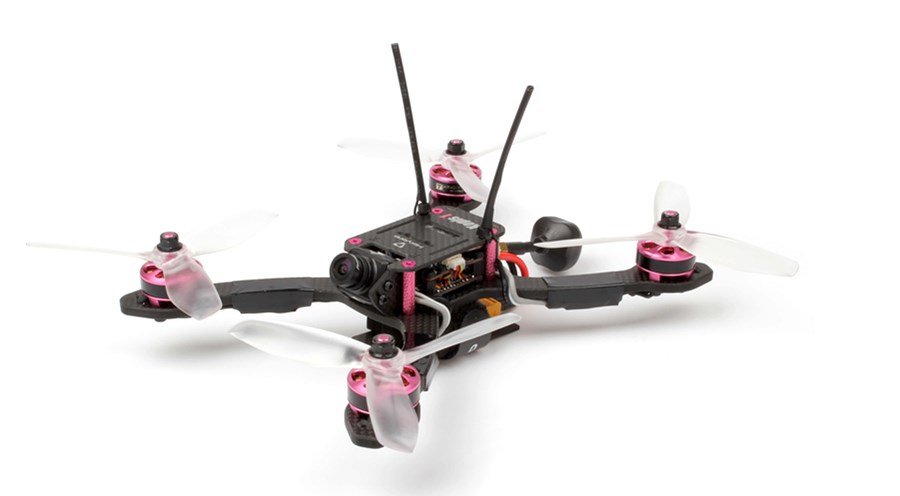

In the photo below the first version:

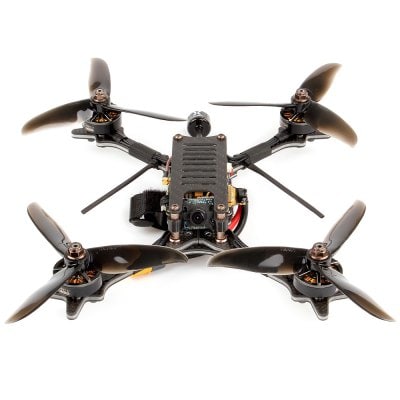

And the second version:
Like its predecessor, Kopis 2 at the top has a large and spacious platform for installing an additional action camera, for example, GoPro Session or Hero. The battery is installed under the bottom of the quadrocopter. According to the manufacturer, the drone can fly on LiPo 4, 5 and 6S batteries. But remember that the engines are optimized for 4S.
Since the video transmitter is very powerful, the broadcast range will not be a problem. It (the name Holybro Atlatl HV V2) has 40 channels and an output power of 800mW. Of course, that it is not necessary to include maximum power, for races there will be enough and 25mW, but for freestyle at long distances you already need to put 800mW. PIT mode in order to make the settings of the video transmitter and not interfere with other pilots.
The first version of Kopis had LEDs behind, and Holybro Kopis 2 does not have light at all, there are no LEDs either front or behind. If you participate in races with other pilots, the light on the back is still needed to identify the pilot.

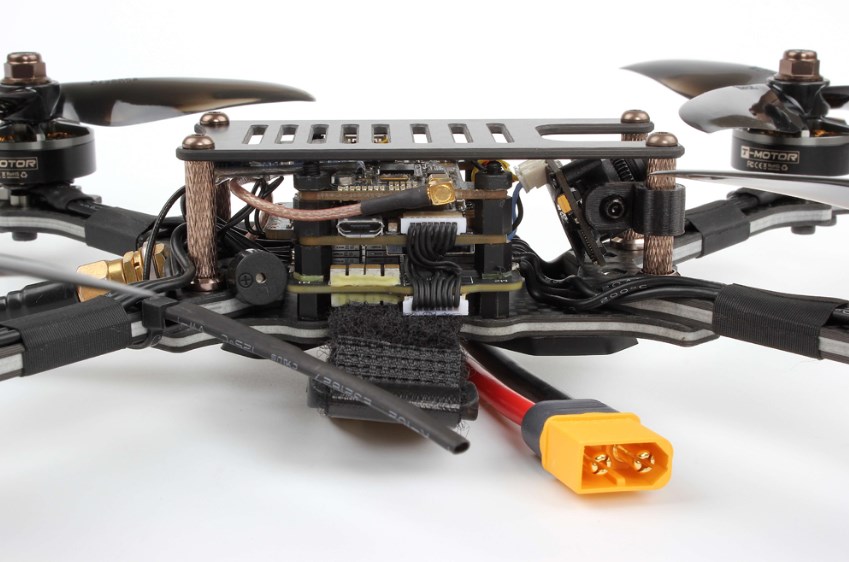

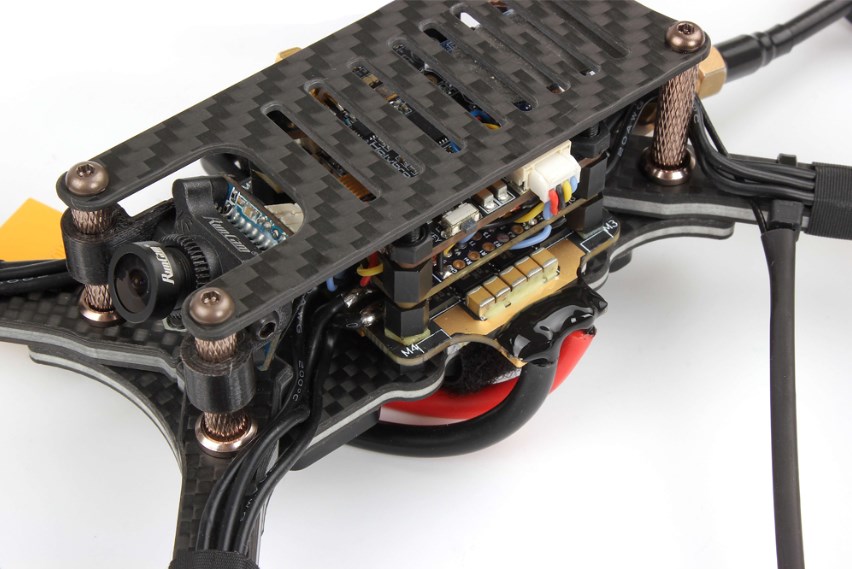

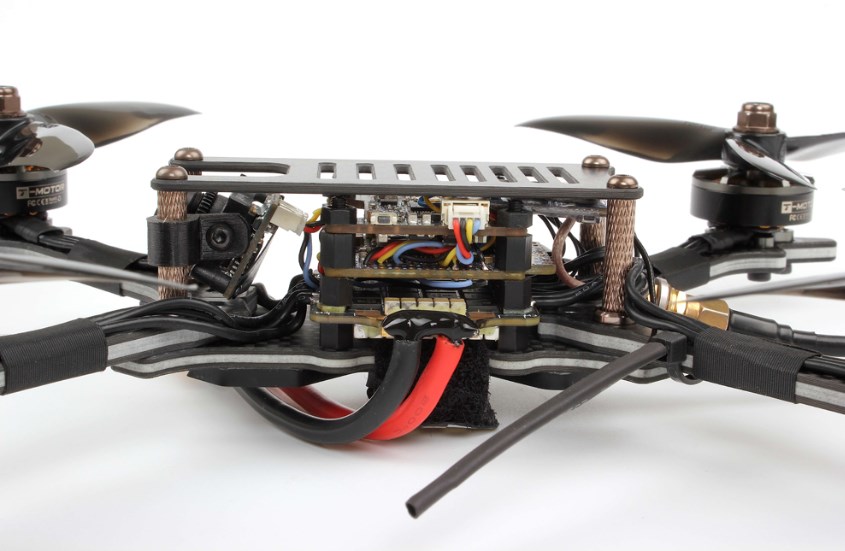

Holybro 2 pictures
SPECS
Product Details
| Features |
● 5mm full 3k carbon fiber twill. ● Counter-sunk screws on base for a great appearance and protection of battery against damage. ● Kakute F7 flight controller with soft-mounted gyro for mechanical filtering of vibration. Means you can disable more software filters for the best flight handling. ● Improved soft-mounting foam for KakuteF7 gives an optimal balance of stiffness and damping for even better gyro performance than before. ● BetaFlight OSD included. Monitor voltage and battery capacity in your FPV goggles. Change PIDs and Rates using your transmitter sticks. ● Atlatl HV V2 video transmitter: - 5.8GHz - Standard 40-channel set. However 5645MHz and 5925MHz, 5945MHz are illegal in many areas, so they are not supported. If you select one of these channels, it will simply fail to work. - Output Power: 0.5mW ( pit mode ), 25mW, 200mW, 500mW, 800mW. - MMCX antenna connector for easy, secure connection. Won't break or come loose like the IPEX connector used on other VTX. - Control the VTX channel and transmit power from the OSD using your transmitter sticks or from your Transmitter. No more picking up the quad to change VTX settings. ● Buzzer included. ● RunCam Swift Micro FPV camera. ● Adjustable camera uptilt from 0 degrees to 90 degrees. ● Serial receiver supported ( SBUS, iBUS, Spektrum). Legacy PPM and PWM receivers not supported. |
| Specification |
Brand name: Holybro Item name: Kopis 2 FPV racing drone Flight controller: Kakute F7 VTX: Atlatl HV V2 ESC: Tekko32 4 in 1 35A ( Dshot1200 compatible ) Brushless motor: T-motor F40 PRO2 2400KV Propeller: DALPROP Cyclone T5046C ( 4 pairs ) Camera: RunCam Micro Swift Antenna: Foxeer Lollipop 5.8G RHCP Receiver: Frsky XSR ( BNF version only ) MCU: STM32F745VGT6 32-bit processor IMU: ICM20689 ( SPI ) 32KHz capable Barometer: BMP280 TF card for Blackbox logging Supports 4 - 6S battery ( motors are optimized for 4S ) Weight 299 grams without battery or props Product weight: 0.3050 kg Package weight: 1.0000 kg Product size (L x W x H): 23.40 x 20.40 x 4.60 cm / 9.21 x 8.03 x 1.81 inches Package size (L x W x H): 33.50 x 29.00 x 6.70 cm / 13.19 x 11.42 x 2.64 inches |
