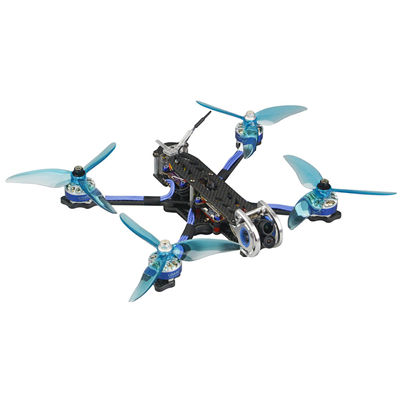

This DJ200 is a 5 inch propeller racer based on a carbon and aluminum structure with a motor-to-motor diagonal of 21.9 cm. It is based on a KKT30-F4D flight controller based on an F4 processor, flashed with Betaflight, and associated with a 40A KK30-E40A 4 in 1 ESC. The pair drives 2306 to 2500KV brushless motors for 51499 three-bladed propellers. LDARC recommends a 4S battery from 1300 to 1800 mAh.
It is provided by an FPV Air Unit, comprising the DJI camera and the FPV Air Unit module to broadcast HD digital video feedback in real time to DJI headphones. To save images on board, too. The endowment can stop here, since the FPV Air Unit can be used as a radio receiver if it is used with the DJI radio remote control. If you prefer to use your own radio, you can equip the device with an SBUS receiver.
LDARC DJ200-Digital ensures that the propellers do not appear in the image field, that the DJI camera is protected from vibrations with shock absorbers, and that the frame is delivered with guides to maintain and orient the antennas of the FPV Air Unit. At the back are 12 LEDs for a nice light effect.
FC: KKT30-F4D (Old name: F4+VTX)
ESC: KKT30-E40A Old name: ESC 40A(KK supper part)
DJ220-Digital : DJI FPV Digital+Camera
DJ220 : NO CAM+VTX
Recommend battery: 14.8V 1300-1800mAh
Receiver: DJ220-Digital(Include DJI RX, it canable to use DJI transmitter),
FC can use AC2000, XM+ etc. receiver, it can use Frsky ,Futaba transmitter
Package size: 275*205*90mm
top plate 2.5mm; bottom plate 2.5mm.
arm frame 5mm; bottom plate 3mm.
Mounting size: Flytower 30.5*30.5mm,
motor Φ16 M3*8 ; camera 19mm/20mm
KK tower new name
KKT16 mounting size 16*16mm
KKT20 mounting size 20*20mm
KKT30 mounting size 30.5*30.5mm
