Skystars 2019 G730L

Skystars 2019 G730L

Brand: Other
Category: Drones
  • 1: Wheelbase: 300mm
  • 2: Arm Plate Thickness: 4mm
  • 3: TOP and Bottom Plate Thickness: 2mm
  • 4: Side Plate Thickness: 2mm
  • 5: Material: 3k Carbon Fiber

Our Rating

The overall rating is based on review by our experts

9
  • Design 10 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

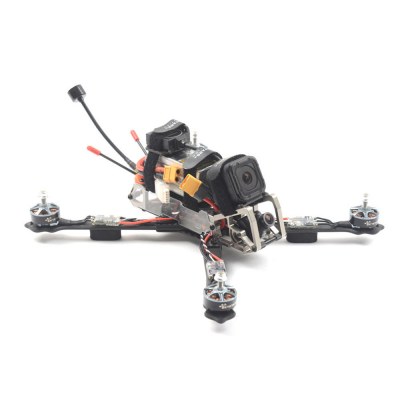

Skystars 2019 G730L GPS INAV 300mm F4 8K OSD FPV Racing Drone

It is impossible to ignore the success of the Tiny Whoop, which shines by its discretion in flight. One of the next trends may be racers for longer distance flights. In France, this is a prohibited practice since flights must be made in direct view of the pilot, and in the case of immersion flights, in direct view of an observer. Banned in France does not mean banned anywhere in the world: choose your destination carefully for this summer!

The 2019 G730L from Skystars is a 300 class device based on a carbon structure with 4 mm thick arms. It is equipped with Skystars 2306 V2 to 1750KV engines powered by a 50A BLheli_32 4-in-1 ESC for 7-inch Dalprop DP7056C transparent propellers. The camera is a Swift RunCam 2 600TVL, with D-WDR to increase image dynamics, associated with a 40 channel 5.8 GHz video transmitter capable of transmitting at 25 mW (the maximum allowed in France – but no matter, this device is not intended for use in France), 200 mW, 500 mW or 800 mW to go much further. It is equipped with a long polarized antenna for better radio transmission.

To orchestrate the whole thing, Skystars chose a flight controller based on an F4 processor, with an altimeter barometer, a Black box to refine the settings of the PIDs, SmartAudio and IRC Tramp compatible, with the RSSI radio, with a current sensor. It is flashed, according to the technical data sheet, with Beta flight and offers an active OSD. It remains to be seen why Skystars repeatedly mentions the word “Inav”, which suggests that Betaflight could have been replaced by the Inav software… Odd. On board, there is also a buzzer to make it easier to find the device in case of a crash and especially a GPS receiver (Mini M8N).

The device can be delivered with a FrSky XM+ receiver (limited range), or FrSky R9 MM (longer range), or without a receiver – in this case it is up to you to install yours (a TBS Crossfire for example). Skystars’ 2019 G730L will be available from $262 at Banggood (excluding port and taxes). It will be interesting to check if this camera is not too prone to vibrations: it is the disease of propeller racers of 6 inches and more… It would be a shame, since the goal of mid-range flights is to come back with beautiful images shot with a GoPro (or another sports camera).

SPECS

Product Details

Features Drone Wheelbase: 300mm
Arm Plate Thickness: 4mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Material: 3K Carbon Fiber & Aluminium alloy
Weight: 221g
Specification MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/ gyro (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2, S5 or S6 optional
Camera control on S6 or DAC optional
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes

PDB Specifications:
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x50A , 4 layers*2oz copper PCB
BEC: 5V 3A cont.
LDO 3.3V: for Spektrum RX
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)

Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Peak Current: 60A
BEC Output: no
CPU: STM32F051 BLHeli _32 firmware
Size: 26 x 15 x 6MM
Weight: 7.4g
MOS Tube: TOP QUALITY MOSFET
- Support Dshot 1200 in default out from factory
- Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
- Ultra light and ultra small ESC
- The color of RGB LED can be set by Blhelisuite.
- Powered by high performance STM32 MCU frequency up t0 48 MHZ
- Composed of 3Oz gold plated PCB
- Flashed with the latest BLheli_32 firmware
- Supports higher KV motor and more power load, more suitable for violent flight of racing drone
- Aluminum heat sink effectively slow down the temperature rise

Brand Name: Skystars
Model: 2306 v2
KV:1750KV
- More strong and light

Model: DP7056C
Quantity: 4 CW & 4 CCW
Color: Transparent White

Item Name: RunCam Swift 2
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Lens: 2.1mm 160-degree
Signal system: PAL
Integrated OSD: yes
Integrated MIC: yes
S/N Ratio: more than 60dB ( AGC OFF )
Electronic Shutter Speed PAL: 1/50 - 100,000; NTSC:1/60 - 100,000
AutoGain Control ( AGC ): yes
Back light compensation ( BLC ): yes
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B and W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm x 26mm x 26mm
Color: Sending Randomly

RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Weight: 7.4g
Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antenna
- Upgrade with longer antenna

- Support Strobe flashing
- Built-in Lipo Battery

PNP Version: Without Receiver
Frsky R9 MM Receiver Version: with Frsky R9 MM RX
Frsky XM+ Receiver Version: with Frsky XM+ RX
