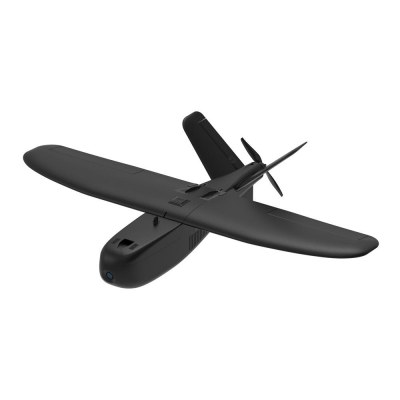

ZOHD Nano Talon Black OP

ZOHD Nano Talon Black OP
Brand: Other
Category: Drones
  • 1: Quantity: 1set
  • 2: Motor: Sunnysky 2204-1870KV
  • 3: ESC: 30A w/5V 2A BEC (Switch)
  • 4: Servos: 9g Metal Gear
  • 5: Propeller: 6x3
  • 6: Flying Weight: 361g (w/o FPV gear)

ZOHD Nano Talon Black OP - Specs

Product Details

  • Features
    * EPP molded wing, built-in CF spar for enhancement, light, flexible and crash-resistant.
    * Straight wing instead of an anhedral wing to get more stable and agile attitude.
    * Updated SunnySky motor with a longer shaft, compatible with regular propellers.
    * Updated 9g servos from plastic gear to metal gear.
    * Updated ESC from 30A with 5V 1A Linear BEC to 30A with 5V 2A Switch BEC.
    * Detachable main wing and tail wing for easy transport, easy to install. Improve connections for better aileron and tails stability
    * Enlarged battery bay for Lipos from 3S to 4S, and Li-Ions 18650 4S 2P 3500mAh
    * Bigger NACA air-inlet provides more air cooling for FPV gear inside the fuselage.
    * Built-in carbon fiber spar and extended plywood inside the fuselage for more strength in case of an impact.
    * Optional belly mapping camera bay and camera mount for mapping.
    * Texture marked on both sides of fuselage for a more secure hand launch grip.
    * Optional Tefl0n cover for fuselage bottom, super durable, protecting the fuselage bottom from scratches on landing
  • Specification
    Brand: ZOHD
    Item Name: Nano Talon Black OP
    Version: PNP/ PNP With FPV Ready (With Kopilot,VC400 AIO Camera,Motor,ESC,Servos,Propeller,hardware)
    Color: Black
    Quantity: 1set
    Material: Crash Resistant EPP
    Wingspan: 860mm (33.85'')
    Length: 570mm (22.44in'')
    Motor: Sunnysky 2204-1870KV
    ESC: 30A w/5V 2A BEC (Switch)
    Servos: 9g Metal Gear
    Propeller: 6x3
    Flying Weight: 361g (w/o FPV gear)
    CG: 3.5cm from the wing leading edge (marked under the wing)
    Recommended Battery: Lipo from 3S to 4S 1300-2200mAh, Li-Ion 18650 4S 2P 3500mAh
    Package Weight: 0.94KG
    Package Size (L x W x H): 54.5 X 13.5 X 18cm
  • Package content
    1x Nano Talon Black OP plane PNP with pre-installed motor, esc, servos, propeller, hardware
    1x ZOHD Kopilot Lite
    1x ZOHD VC400 All-in-one Video Camera

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

ZOHD Nano Talon Black OP 860mm Wingspan AIO V-Tail EPP FPV Wing RC Airplane

Could the Nano Talon Black OP replace Parrot’s Disco fire and its ease of use? This V-shaped aircraft, with a wingspan of 86 cm, is designed to be easily transported: it can be dismantled to fit in a bag. The main structure is made of EPP, with a carbon fibre linkage. If you are not satisfied with the assembly and settings, the device is available in a very complete and almost ready-to-use FPV version.

The ZOHD Nano Talon in FPV version is equipped with a flight controller called Kopilot. Forget about Inav and other wing tools, says ZOHD, the software is easy to use with disengageable stabilization, geofencing and automatic return to the takeoff point, without the need for a smartphone for control. This software tool drives the 30A ESC, the 2204 to 1870KV SunnySky engine and its 6-inch propeller. The aileron control is based on two 9g servos. The FPV part is provided by the VC400 Piggyback combo, a 600TVL FPV camera with a 120° FOV associated with a video transmitter capable of transmitting with a power of 0 mW (pitmode), 25 mW (the maximum allowed in France), 200 mW and 400 mW.

It seems that the GPS is not included in the kit, it is up to you to install yours in the trapdoor provided for this purpose. It also adds a radio receiver and a battery, 3S to 4S, from 1300 to 2200 mAh (or 18650 batteries). The device is able to carry a GoPro camera. The ZOHD Nano Talon Black OP is available in FPV version by Banggood at $155.99, a little less if you are fast at pre-order, with availability from 19 September 2019.
