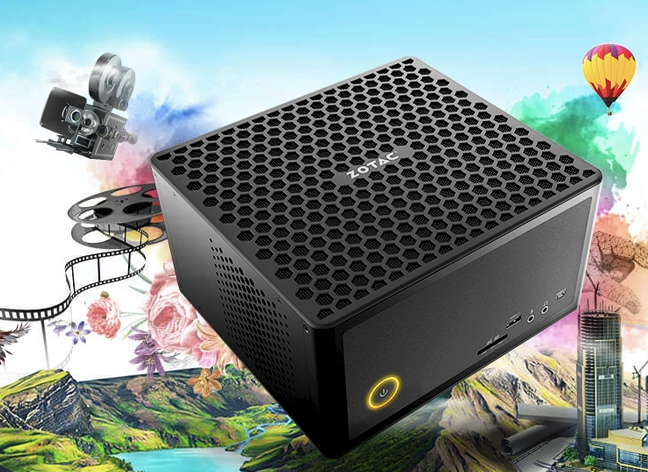

Zotac QX Mini-PC with Intel Xeon CPUs and Nvidia Quadro GPUs

ZOTAC Technology has announced the ZBOX Q Series Mini Creator PC, a small form factor designed for visualization, content creation, design and other professionals.

The Zotac QX are enclosed in a case with dimensions of 225 × 203 × 128 mm. The basis is the Intel Xeon E-2136 processor with six computing cores with a frequency of 3.3 GHz (increased to 4.5 GHz). There are two slots for RAM modules DDR4-26666/2400 SODIMM total capacity up to 64 GB.

The video subsystem uses an NVIDIA professional graphics accelerator. It can be a Quadro P3000 adapter with 6GB of GDDR5 memory or a Quadro P5000 adapter with 16GB of GDDR5 memory. Inside the case, there’s room for one 2.5-inch drive. In addition, a 2242/2260/2280/22110 format NVMe/SATA M.2 SSD solid state module can be installed.

10/100/1000 Ethernet and 10/100/1000/2500 Killer Ethernet network controllers are provided. In addition, there are Wi-Fi 6 Killer AX1650 and Bluetooth 5 wireless modules available of Zotac QX. Among the available interfaces there are four HDMI 2.0 connectors and six USB 3.1 (1 × Type-C) ports. Windows 10 operating system is supported.
