AlfaRC Herbie 112mm
-
1: Wheelbase: 112mm
-
2: Plate Thickness: 3mm
-
3: Support camera: 14X14mm
-
4: 2.5 Inch Propeller
-
5: Flight Time: 7-10 mins
-
6: Drone Weight: 55g
AlfaRC Herbie 112mm - Price
-
AlfaRC Herbie
$129.99
View Offer
AlfaRC Herbie 112mm - Specs
Product Details
-
Features2.5 Inch 2-3S Toothpick FPV Racing Drone PNP/BNF Caddx.us Turbo Eos2 Cam SucceX Micro F4 FC 12A ESC 1103 8000KV Motor 200mW VTX
-
SpecificationBrand Name: AlfaRC
Model: Herbie 112
Wheelbase: 112mm
Plate Thickness: 3mm
Support camera: 14X14mm
Version: PNP ( Without Receiver, Battery, Radio Transmitter) / With Frsky XM+ Receiver / With FLYSKY Fli14+ Receiver
Flight control installation holes: 25.5*25.5mm/16*16mm/20*20mm
Brushless Motor: AlfaRC 1103 8000KV Motor
FC:SucceX Micro F4 Flight controller
ESC:SucceX Micro 12A Brushless ESC
VTX:PIT/25/100/200mW VTX
FPV Camera: Caddx.us Turbo Eos2 1200TVL FPV Camera
Propeller: 2.5 Inch Propeller
Lipo Battery: Recommend 2-3S 300-650mAh Lipo Battery
Flight Time: 7-10 mins ( Take example as 3S 450mAh Lipo w/2.5 Inch Prop)
Material: 3K Carbon Fiber & Nylon sintered parts
Drone Weight: 55g -
Package content1x 112mm Frame Kit
1 x SucceX Micro F4 Flight controller
1 x SucceX Micro 12A Brushless ESC
1 x PIT/25/100/200mW VTX
4x AlfaRC 1103 8000KV Motor
1x Caddx.us Turbo Eos2 1200TVL FPV Camera
20x LDARC 65MM Racer Propeller
1x IPEX Antenna
1x Receiver ( Optional)

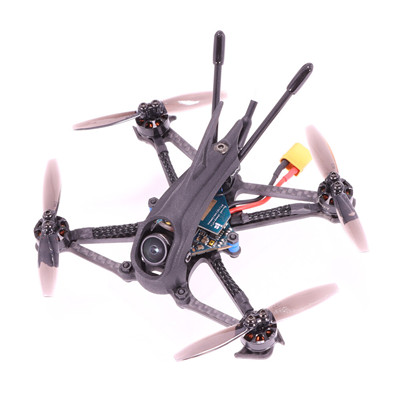

AlfaRC Herbie 112mm 2.5 Inch 2-3S Toothpick FPV Racing Drone
It is nevertheless devoid of interest: it is an aircraft equipped with brushless motors 1103 to 8000KV for LDARC two-bladed propellers of 6.5 cm diameter. The flight controller is a SucceX Micro F4 from iFlight combined with a 12A SucceX Micro 4-in-1 ESC. The video part is provided by a Caddx EOS2 Turbo FPV camera, 1200TVL, whose images are broadcast by a 5.8 GHz analog video transmitter capable of transmitting with a power of 25 mW, but also 100 mW and 200 mW. Its antenna is of dipole type.
It is installed on a 3 mm thick unibody carbon structure with a central fairing to protect the electronics. The weight of the set is about 55 grams without the battery. AlfaRC recommends Lipo 3S of 450 mAh with an XT30 connector, for an autonomy of about 7 minutes. The unit can be delivered without a radio receiver, or with a pre-installed receiver type XM from FrSky or Fli14 from Flysky. What is the price? The Herbie 112 is available from $129.99 at Banggood Store.
