Alfawise U20 Mix

Alfawise U20 Mix
Brand: Alfawise
Category: 3D Printer
  • 1: Power-on Self-test
  • 2: Automatic Shutdown After A Print is Finished
  • 3: Safe Mode, Smart Power Management
  • 4: One Key To Turn on
  • 5: 4.3 inch Color Touchscreen
  • 6: TMC2208 mute chip

Alfawise U20 Mix - Specs

Product Details

  • Features
    1. The two extruder, a nozzle, to achieve color printing
    2. Double Z screw to ensure stable operation
    3. Self-leveling
    4. Detachable heating stage
    5. TMC2208 mute chip
    6. Large size 300x300x400mm
    7. Slice activity model software can be divided, arbitrarily selected parts of the model print heads, WYSIWYG.
  • Specification
    Material: Aluminium Extrusion, Sheet-metal structure
    Platform board: Aluminum Base, PCB
    Nozzle quantity: Single
    Nozzle diameter: 0.4mm
    Nozzle temperature: 0 to 260 degree
    Product forming size: 300*300*400mm
    Layer thickness: 0.1-0.4mm
    Memory card offline print: TF card
    Print speed: <90mm/s recommend 30-60mm/s
    Platform temperature: 100 Degree Celsius
    Supporting material: ABS, Nylon, PLA, TPU, Wood
    Material diameter: 1.75mm
    File format: G-code, STL
    XY-axis positioning accuracy: 0.0125mm
    Z-axis positioning accuracy: 0.0025mm
    Voltage: 110-240V
    Working Power: 24V
    Host computer software: Cura, Repetier-Host, Simplify3D
    Packing Type: Assembled packing
    System support: Windows, MAC
    Connector Type: SD card, USB, Wi-Fi
  • Package content
    1 x 3D Printer

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

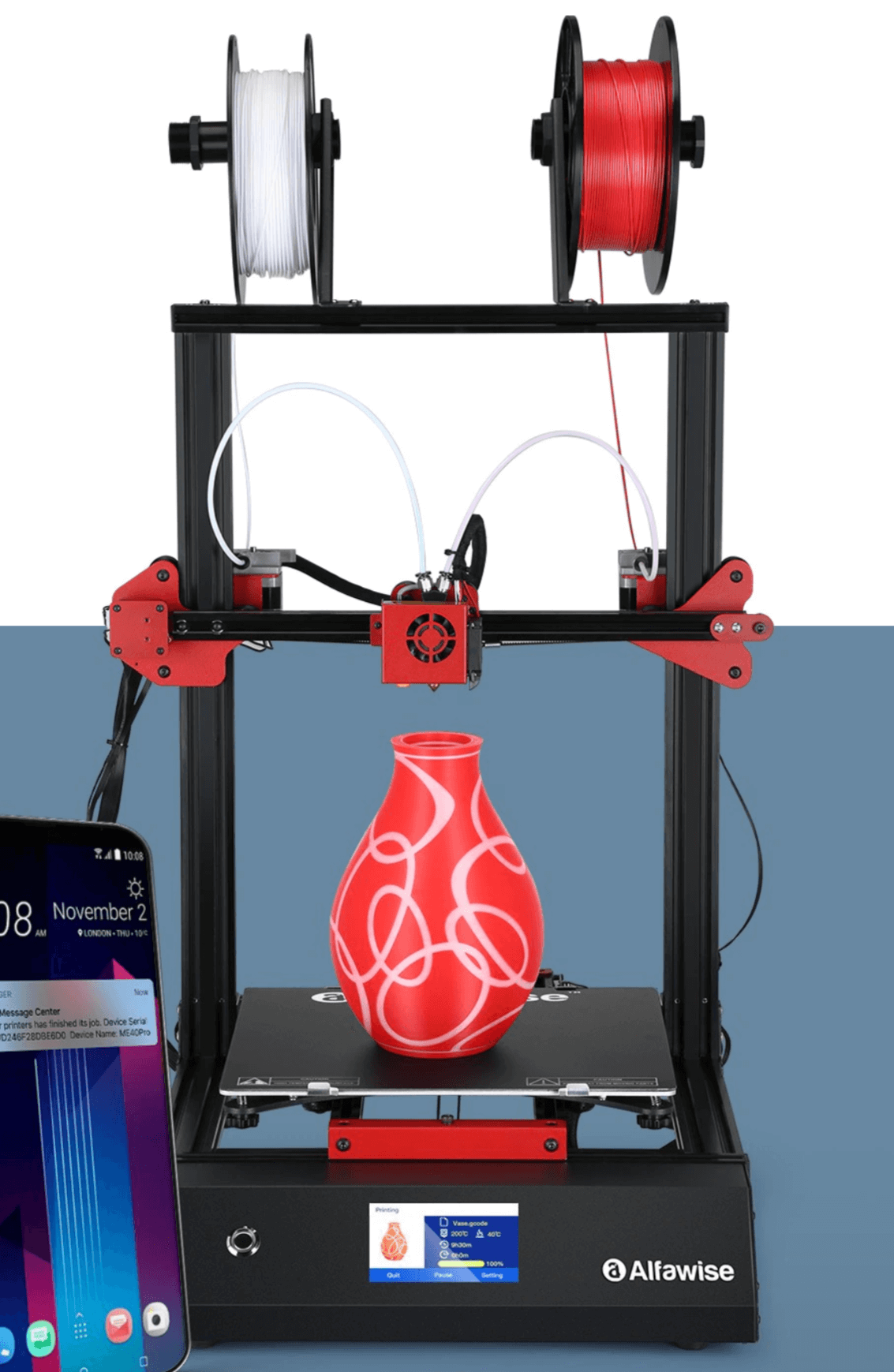

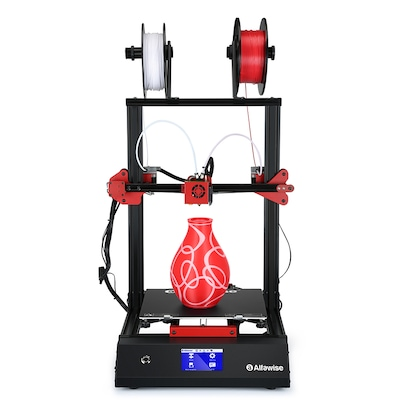

Alfawise U20 Mix 3D Printer

Gearbest was very successful with the launch of its U20, a 3D printer clone of the Creality CR10 which had the advantage of a much more aggressive price positioning. Today, the brand is back with the U20 Mix, a two-color variant of its printer that offers a color mixing solution.

The U20 Mix takes up bases launched with the U50, i.e. electronics housed under the winery with a folded steel semi-casing, all combined with a large 4.3-inch color touch screen.

The machine features a double Z-axis, a heating bed level correction system, print resumption in case of power failure, and a cyclops type print head.

There are two MK8 extruders which allow printing in two colors (double extruder, single nozzle), or two materials (provided that the glass transition phase is close) or even to make a mixture to propose gradients, like what Geeetech has been offering with all its double extrusion machines for a few years.

As always at Alfawise, one of the main sales arguments remains the price of the machines: the Alfawise U20 Mix is currently offered at $499.99.
