Alfawise U50

Alfawise U50
Brand: Alfawise
Category: 3D Printer
  • 1: Five-step installation
  • 2: Full metal body
  • 3: 260 x 260 x 270mm large size printing
  • 4: Automatic feeding and unloading function
  • 5: Aluminum substrate hotbed + glass panel
  • 6: Adjustable Y-axis belt design

Alfawise U50 - Price

Alfawise U50 - Specs

Product Details

  • Features
    Five-step installation, assembly takes only 15 minutes
    Full metal body, accurate and stable printing
    260 x 260 x 270mm large size printing
    Automatic feeding and unloading function, easy to solve by feeding and refueling
    Z-axis dual motor, Y-axis dual-axis design, solid and stable structure, more precise printing accuracy

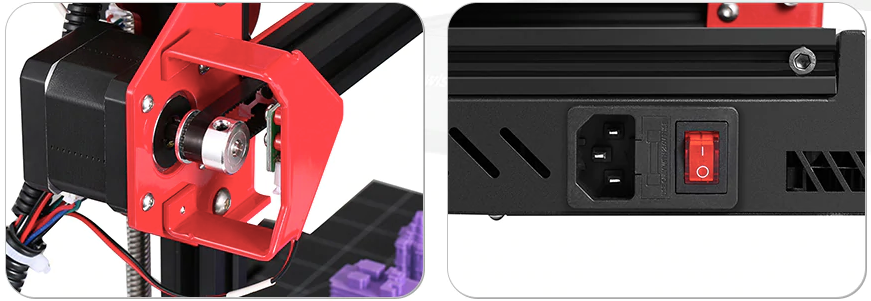

    Adjustable Y-axis belt design, belt tension can be adjusted freely to improve print quality
    Special pulley + profile design, the pulley and the profile are perfectly matched, and the printing precision is higher

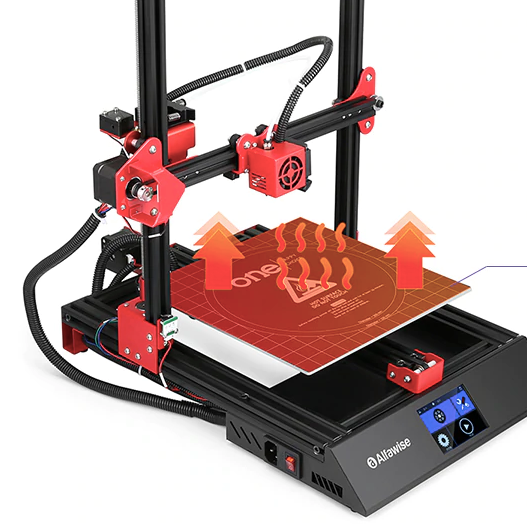

    Aluminum substrate hotbed + glass panel, the printing is flat and not warped, easy to take out the model

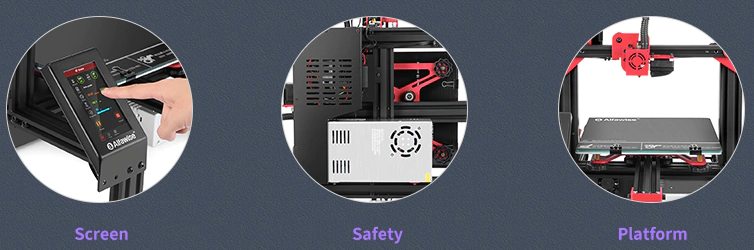

    The latest upgrade of the motherboard, increase the over-current protection, short-circuit protection and other circuit design, configure a smaller current, safe and reliable
  • Specification
    Brand: Alfawise
    Model: U50
    Type: DIY
    Material (Frames): Aluminium Extrusion,Sheet-metal structure
    Platform board: Aluminum Base
    Engraving Area: 260*260*270
    Engraving Accuracy: 0.1mm
    Nozzle quantity: Single
    Nozzle diameter: 0.4mm
    Nozzle temperature: 0 to 260 degree
    Product forming size: 260*260*270
    Layer thickness: 0.02 to 0.2 mm
    Memory card offline print: TF card
    LCD Screen: Yes
    Print speed: 20~200mm/s (recommended 30~60mm/s)
    Supporting material: Flexible PLA,PLA,Wood Filled
    Material diameter: 1.75mm
    Language: Chinese,English
    File format: G-code,OBJ,STL
    Model supporting function: Yes
    XY-axis positioning accuracy: 0.012mm
    Z-axis positioning accuracy: 0.004mm
    Voltage: 110V/220V
    Working Power: 300W
    Host computer software: Cura,Repetier-Host
    Packing Type: unassembled packing
    System support: Windows7/Windows10/XP
    Connector Type: TF card
    Certificate: CE,FCC
  • Package content
    1 x Flat Shovel, 1 x Power Cord, 1 x Diagonal Pliers, 1 x Pass Pin, 1 x Wire, 1 x Hotbed Sticker, 1 x Tools Kit, 1 x Screws Bag, 1 x Belt, 1 x TF Card Bag, 1 x Nozzle, 1 x Cable Tie, 1 x Y Motor Component, 1 x Z Motor Component, 4 x 2020 Aluminum Gantry, 2 x Sheet Metal Component, 1 x Print Head Component, 1 x Rod, 1 x Rack, 1 x Extruder Component

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

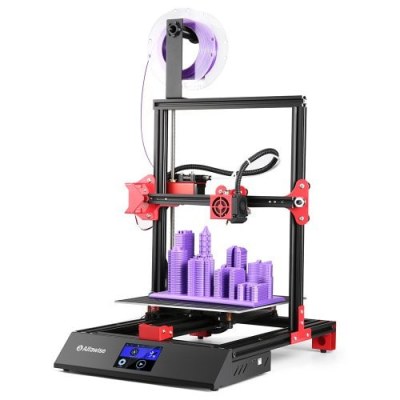

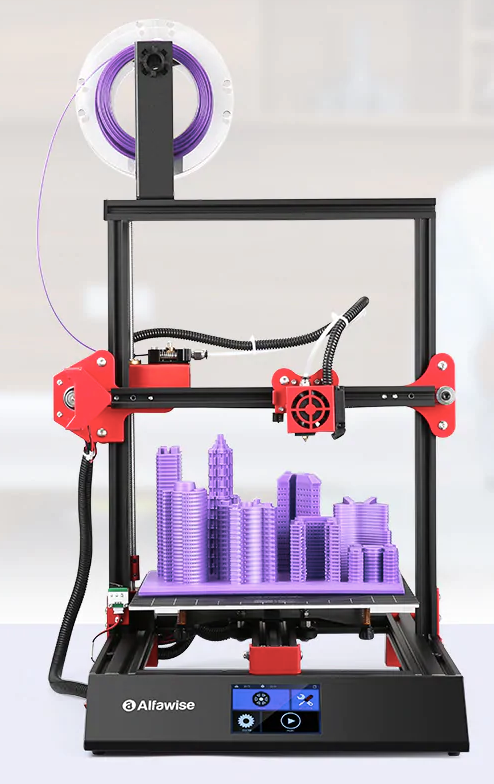

Alfawise U50 DIY 3D Printer With 3.5 inch Touch Screen

The Alfawise U50 3D printer is coming on the market as a follow-up to the famous Alfawise U30, which was strongly inspired by the Creality CR-10S and its 260 x 260 x 270 mm volume. The Chinese manufacturer is not revolutionizing its range of 3D printers and remains on the same architecture as the U30 but by improving some interesting points and reducing the volume of printing. The power supply goes under the tray to integrate into the aluminium frame, Alfawise provides a real on top coil holder compatible with small and large filament coils.

A single extruder to print layers of 100 microns minimum with a 0.4mm nozzle and 1.75mm diameter filament. Detectors are used to pause the printing job in the event of a power failure or if the yarn reel is empty. Filament type PLA, ABS, PVA, PVA, PP, PP, TPU and even wood for a maximum extrusion temperature of 250°C and a bed that heats up to 100°C.

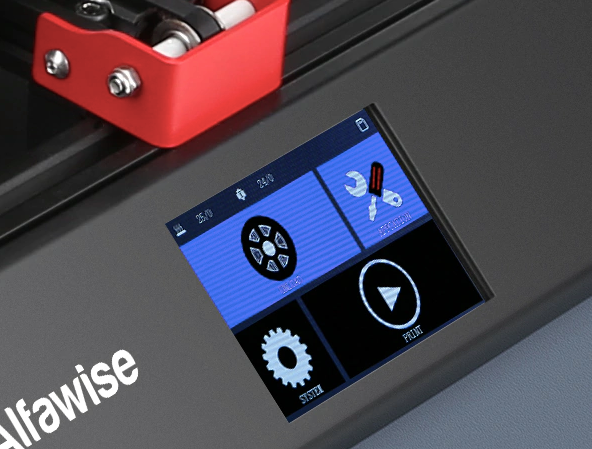

An 8GB microSD card is provided with the U50 printer, which contains an assembly manual in English and a gcode file to test the printer. This SD card can therefore be used to print autonomously on the Alfawise, actions carried out from the 3.5″ touch screen that equips the U50. A USB port also allows you to connect the printer to a computer to control it from Cura, Simplify3D or other software.

If we can think that the U50 is an evolution of the U30, we should rather consider it as a reduced model since the printing volume falls to 260 x 260 x 270mm. Sufficient for most cases, it also allows you to display a more aggressive price for this 3D DIY printer which can be installed in 1 hour. By its characteristics, the Aflawise U50 is in competition with the Creality Ender 3.

The Alfawise U50 is displayed at about $195.99, $30 More than the U30, with the main difference being the printing volume.

With the Alfawise U50, we see that the Chinese manufacturer has taken into account the comments of the community (except for the funny idea of having placed the micro SD card reader on the back of the machine).
