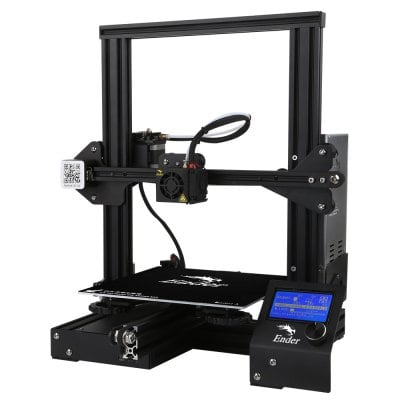

Creality3D Ender-3

Creality3D Ender-3

Brand: Creality3D
Category: 3D Printer
  • 1: MK - 10 extruder greatly reduces plugging risk
  • 2: V-slot with POM wheel
  • 3: One-piece structure
  • 4: Semi-knockdown package
  • 5: Safety protected power supply

Our Rating

The overall rating is based on review by our experts

9
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 10 / 10

Creality3D Ender – 3 DIY 3D Printer Kit

The printers of Creality3D were already good, but they learn hard! Almost everything I have complained about the CR-10 is already considered here. The advance laurels are not in vain! This is the best printer out of the box I had so far and that at a competitive price!

The printer is pre-assembled in large parts and quickly mounted with the enclosed instructions (A2 format on both sides). The small parts individually packed in clean labeled bags. Nothing is missing and there are more screws left than I have installed. Creality3D adds a second nozzle . Unfortunately, I can not find any information about the diameter.

The documentation on the enclosed memory is exemplary! Creality3D really astonished me. No Chinese gibberish! Cura is included in relatively recent version 3.0.2 and all printer settings are documented.

The nameplate is probably from Ender 2 but I can still handle that. The printer comes with a strong 220W print bed and 360W 24V power supply. That’s better than my CR-10. Only the direct connection of USB socket for Raspi and LED lighting should be a bit more difficult at 24V.

The Ender3 comes with a cable management that makes the label almost superfluous. Only the 3 sockets on the display require a look into the manual. The Heizbettkabel comes with strain relief and large nuts M4 facilitate the leveling if not there … Something I must complain yes! The screw heads on the print bed are hidden by the print bed foil and not countered. Promptly, the screw on the cable turns in leveling with the nut and can not be aligned. 4 nuts and the problem is eliminated.

The cable from the Z-limit switch was jammed but also that is fixed faster than written down. There is no possibility of connecting a filament sensor or bed level sensor. All connections on the board are occupied. The limit switches Y and Z are adjustable.

A few things are not optimal. When installed, you do not get to the screws to align the X-axis and a threaded hole is almost sitting next to the profile.

The timing belt deflections are again without teeth with ball bearings on M8 screw. There are no timing belt pulleys G2 to buy. The threaded spindle is missing the fixed bearing.

After I scolded almost all printers about the pause function I noticed immediately positive. It does exactly what I expect. She moves to a waiting position. Very beautiful! A fan replacement due to noise is not required. Everything nice and quiet. The Benchy from the first print looks perfect without adjustments. The settings from the default of Creality3D are already very good. Since you also notice the component fan opposite the Ender 2.

The Ender 3 shows Creality 3D, a good printer does not need expensive electronics for a good print. A good mechanic does it without electronic tricks. The extremely stable frame and the good roller guide with adjustable rollers are a good basis. If I called the premature as an A8 killer, I would like to correct that. This should be a headache for all Prusa printers in the market. The wears the 3 of the i3 rightly in the name! Even though the introductory price is no longer valid, $200 is a really fair price!

SPECS

Product Details

Features ● MK - 10 extruder greatly reduces plugging risk and bad extrusion
● V-slot with POM wheel makes it move noiseless, smoothly and durable
● One-piece structure provides large printing size
● Semi-knockdown package ensures quick assemble
● Safety protected power supply, reaching 110 Deg.C in about 5 minutes
● Additional power cut protection function to meet the needs of fast heating and longtime printing
● CNC machining of Y - rail mounting groove to ensure precise positioning and printing quality
● New viscose platform sticker solves warping problem
Specification Brand: Creality3D
Type: DIY
Model: Ender - 3
Engraving Accuracy: 0.1mm
Nozzle quantity: Single
Nozzle diameter: 0.4mm
Product forming size: 220 x 220 x 250mm
Layer thickness: 0.1-0.4mm
Print speed: Max. 180mm/s
Supporting material: ABS,PLA,TPU
File format: G-code,OBJ,STL
Packing Type: unassembled packing
Voltage Range: AC 100 - 265V ( input )
Connector Type: SD card

Product weight: 7.8000 kg
Package weight: 8.0000 kg
Product size: 44.00 x 41.00 x 46.50 cm / 17.32 x 16.14 x 18.31 inches
Package size: 50.50 x 39.00 x 17.50 cm / 19.88 x 15.35 x 6.89 inches
