Alfawise U30

Alfawise U30
Brand: Alfawise
Category: 3D Printer
  • 1: Engraving Area: 220 x 220 x 250mm
  • 2: Nozzle diameter: 0.4mm
  • 3: LCD Screen: Yes
  • 4: XY-axis positioning accuracy: 0.0125mm
  • 5: Z-axis positioning accuracy: 0.0025mm
  • 6: Voltage: 24V

Alfawise U30 - Specs

Product Details

  • Features
    ●220 x 220 x 250mm maximum build volume to print exciting models
    ●Precision printing with standard 0.4mm diameter nozzle, accurate alignment, and up to 120mm/s speed
    ● More successful in 3D printing with filament run-out protectionandpower outage protection
    ●2.8'' full color touchscreen for more intuitive control
    ●Great DIY project for any beginners to train hands-on ability, only 1 hour needed
    ●Reinforced aluminum alloy construction, durable, in classical black and red colors
    ●Powerful heat bed using safety voltage for fast heating. With heat-resistant heat bed sticker, easier to use and clean
    ● 100 Deg.C max. heat bed temperature, 250 Deg.C max. nozzle temperature for various filaments, such as PLA, ABS, PVA, PP, TPU, wood filled, etc.
  • Specification
    Brand: Alfawise
    Type: DIY
    Model: U30
    Engraving Area: 220 x 220 x 250mm
    Frame material: Aluminum Alloy
    Nozzle quantity: Single
    Nozzle diameter: 0.4mm
    Nozzle temperature: Room temperature to 250 degree
    Layer thickness: 0.1-0.4mm
    Memory card offline print: TF card
    LCD Screen: Yes
    Print speed: 120mm/s (max.), 30 - 70mm/s ( recommended )
    Platform temperature: Room temperature to 100 degree
    Supporting material: ABS,PLA,PP,PVA,TPU,Wood Filled
    Material diameter: 1.75mm
    File format: G-code,OBJ,STL
    XY-axis positioning accuracy: 0.0125mm
    Z-axis positioning accuracy: 0.0025mm
    Voltage: 24V
    Host computer software: Cura,Repetier-Host,Simplify3D
    Packing Type: unassembled packing
    System support: Windows / Mac / Linux
    Connector Type: TF card,USB

    Product weight: 7.8000 kg
    Package weight: 8.6000 kg
    Product size: 42.50 x 40.20 x 50.50 cm / 16.73 x 15.83 x 19.88 inches
    Package size: 46.70 x 41.20 x 18.70 cm / 18.39 x 16.22 x 7.36 inches
  • Package content

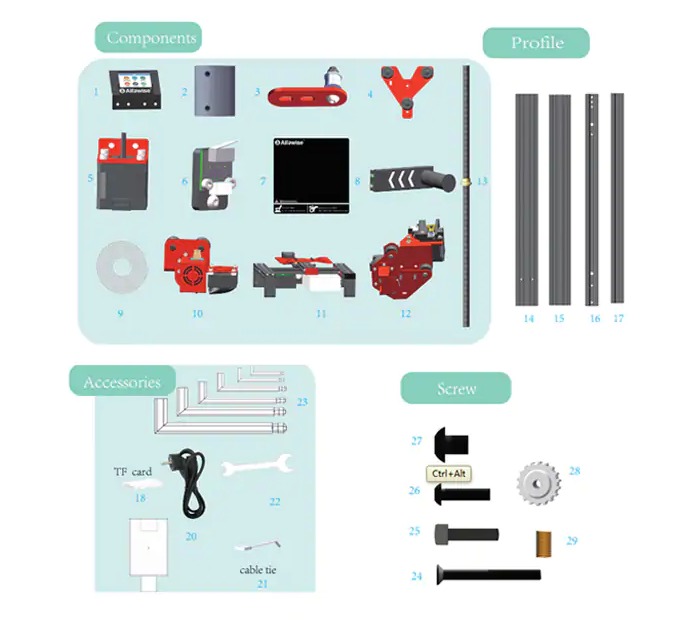

    1 x Alfawise U30 3D Printer Kit ( Semi-assembled )
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 8 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

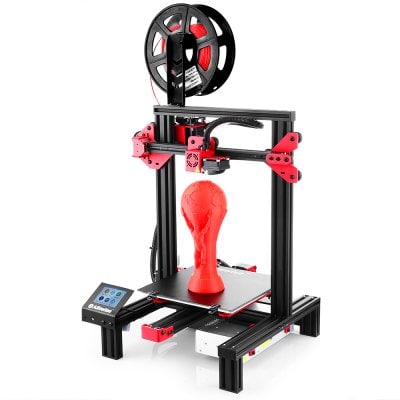

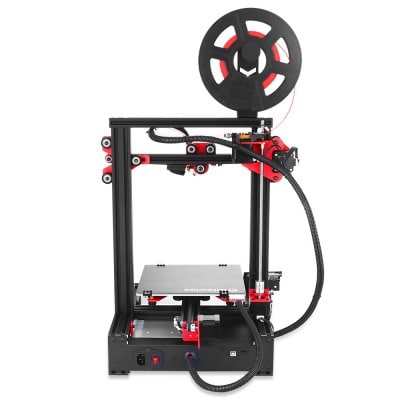

Alfawise U30 2.8 inch Touch Screen DIY Desktop 3D Printer

The Alfawise U30 3D printer arrives on the market to follow the famous Alfawise U20 which was inspired by the Creality CR-10S and its volume of 300 x 300 x 400 mm. The Chinese manufacturer does not revolutionize its range of 3D printers and remains on the same architecture as the U20 but improving some interesting points and reducing the volume of printing. The power goes under the tray to integrate with the aluminum chassis, Alfawise provides a real support coil on top compatible with small and large filament coils.

Alfawise provides household solutions which consist of in-home robotic gadgets ranging from kitchen stand mixers, hand blenders, meat grinders all the way to ice cream makers, wireless doorbells, and vacuum cleaners for windows and floors.

A single extruder to print layers of 100 microns minimum with a 0.4mm nozzle and 1.75mm diameter filament. Sensors allow you to pause the print job in the event of a power failure or if the thread spool is empty. Filament type PLA, ABS, PVA, PP, TPU and even wood for a maximum extrusion temperature of 250 °C and a bed that heats up to 100 °C.

Alfawise U30

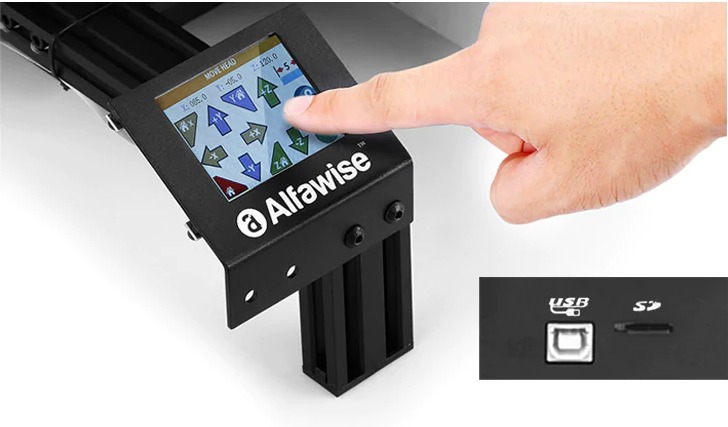

An 8GB microSD card comes with the U30 printer, which contains an assembly manual in English and a G-code file to test the printer. This SD card can be used to print autonomously on the Alfawise, actions taken from the 2.8 “touch screen that equips the U30. A USB port can also connect the printer to a computer to drive from Cura, Simplify3D or other software.

If one would have thought that the U30 was an evolution of the U20, it should rather be considered as a reduced model since the print volume falls to 220 x 220 x 250 mm. Sufficient for most cases, it also allows to display a more aggressive price for this 3D DIY printer that is built in 1 hour. By its characteristics, the Aflawise U30 competes with the Creality Ender 3.

The Alfawise U30 is priced at around $199.99, which is $80 less than the U20, with the main difference being the print volume.

With the Alfawise U30, we see that the Chinese manufacturer has taken into account the comments of the community (except for the funny idea of ​​having placed the micro SD card reader at the back of the machine).

Alfawise U30 sale point:

1. Machine appearance using classical metal black and red
2. 2.8 inch resistance screen, easy to operate.
3. Power-off continue
4. Filament run out detection
5. Switching power supply built-in, improve safety.
6. High temperature hot bed platform stickers, clean and easy to use
7. High power hot bed with safety voltage is used for heating faster.

Update: In May 2019, the upgraded version of the U30 3D printer Alfawise U30 Pro went on sale and is currently available for $229.99. If you have a good budget, check it out.
