ANYCUBIC Mega X 2020

ANYCUBIC Mega X 2020
Brand: Other
Category: 3D Printer
  • 1: Large Build Volume
  • 2: Modular Design
  • 3: Increased Precision
  • 4: Ultrabase Platform
  • 5: Powerful extruder
  • 6: Filament Senor and Resume

ANYCUBIC Mega X 2020 - Video

ANYCUBIC Mega X 2020 - Price

ANYCUBIC Mega X 2020 - Specs

Product Details

  • Features
    300mm*300mm*305mm, more space for creation
    Big leveling knob is much more convenient to grip, significantly save you effort.
    Z-axis dual screw rod design decreases the likelihood of print errors.
  • Specification
    Printing Technology: FDM (Fused Deposition Modeling)
    Layer Resolution: 0.05-0.3 mm
    Positioning Accuracy: X/Y 0.0125mm Z 0.002mm
    Supported Print Materials: PLA, ABS, TPU, HIPS, Wood
    Print Speed: 20~100mm/s(suggested 60mm/s)
    Nozzle Diameter: 0.4 mm
    Build Size: 300 x 300 x 305mm
    Operational Extruder Temperature: Max 250ºC
    Operational Print Bed Temperature: Max 100ºC
    Printer Dimensions: 500mm x 500mm x553mm
    Input Formats: .STL, .OBJ, .DAE, .AMF
    Ambient Operating Temperature: 8ºC - 40ºC
    Connectivity SD Card, Data cable (expert users only)
    Net Weight: ~14kg
  • Package content
    1* ANYCUBIC Mega X 2020

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

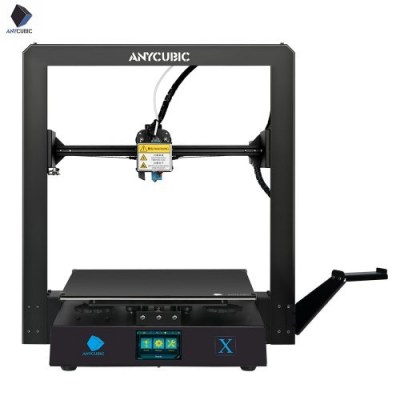

Anycubic Mega X FDM 3D Printer 2020

The well-known manufacturer of low-cost 3D printer kits Anycubic has presented the Mega X, its latest and largest model in the Mega series. The 3D printer is around 30% larger than the popular Mega S. We will present the new Anycubic Mega-X 3D printer in more detail. Anycubic from China presented its first 3D printer in 2016. It was an affordable FDM 3D printer. A series of further 3D printer series followed. We introduced the Anycubic Photon here. With the Mega X, the largest of the Mega 3D printer series is now following.

The mega-family consists of the Mega, the Mega S and the Mega X. The Mega X has a construction volume of 300 mm x 300 mm x 305 mm and is therefore around 30% larger than the Mega S. For Anycubic, it was important that the functions remained the same as those of the predecessors. The larger construction volume should offer the user more space for creativity. The installation space enables a full-size 3D-printed helmet to be made on this machine.

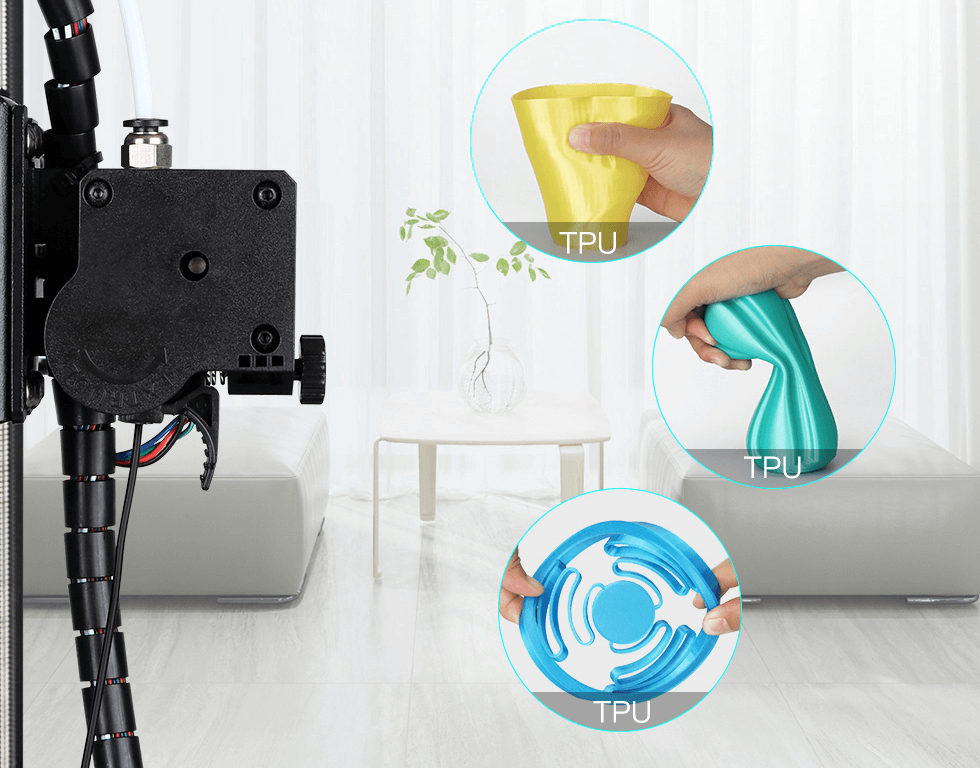

The extruder reached a temperature of 200 degrees Celsius in less than a minute. The print bed can be heated to 60 degrees Celsius in 90 to 120 seconds to ensure adhesion to the building board. The extruder is supplied with a 0.4 mm E3D V6 nozzle. It can be exchanged for another selected size at any time. The device can work with ABS, PLA, HIPS, wood and other common polymers.

Like its predecessors, the Anycubic Mega X 3D printer has a quick mounting option, a titanium extruder, two Y-axis rails that ensure greater stability of the extruder, an ultrabase surface and an end-of-filament -Sensor. With the 3.5 inch color touchscreen, the user can access all basic and advanced parameters.

The Mega X prints layers with a resolution of up to 0.05 mm and has a very stable metal frame. The new Mega X is now available on the website for a starting price of $399. Lumi Industries also announced an affordable 3D printer with the PicoFAB in early February.
