Aomway Nexus V2

Aomway Nexus V2

Brand: Other
Category: Gadget
  • 1: FHD 1080P 60fps resolution
  • 2: 5.8GHz transmission
  • 3: DVR HD recording in both transmitter and receiver
  • 4: HDMI input
  • 5: MAVLink protocol, OSD display

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 8 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

Aomway Nexus V2 Full HD Digital Link

There are several digital video transmission systems in HD. Those of DJI, on the brand’s drones and the Digital FPV system for racers, are probably the most used. But competition is organized. Aomway had released a first version of its Nexus system, it was at the beginning of 2017. The solution was handicapped by high latency. Here is the Nexus V2, which promises a video link in 1920 x 1080 pixels at 60 frames per second with a bit rate of 20 Mbps, from a source in HDMI.

The continuation of Aomway’s promises is interesting: the Nexus V2 would provide a latency of 30 milliseconds and would have a range of 7 km. Characteristics which would, in theory, allow immersion flights. However, Aomway intended its system for aerial cameras. We can deduce that the latency is greater than 30 milliseconds, if only because the video source goes through HDMI. The device operates in the 5.8 GHz ranges, without further details on these ranges or on the power developed.

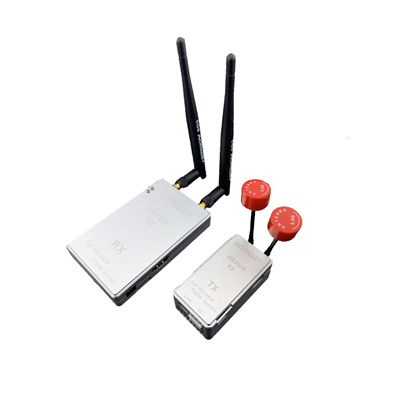

The Nexus V2 is compatible with the MavLink format, with the possibility of an OSD. It records videos on the transmitter and on the receiver, in H.264. The transmitter, to be placed on board the drone, measures 3.2 x 6.2 x 2.4 cm and weighs 60 grams. It is to be supplied with 2S to 6S. The ground receiver measures 9.3 x 5.8 x 1.7 cm and weighs 108 grams excluding antennas. And it works as announced by the technical sheet? Difficult to say without having tested it … The Nexus V2, in transmitter and receiver pack, will be offered at $399.99 at Banggood Store.

SPECS

Product Details

Features Support FHD 1080P 60fps resolution
Support 5.8Ghz transmission
Support DVR HD recording in both transmitter and receiver
Support HDMI input
Support MAVLink protocol, OSD display.
Low to 30ms lantency
Up to 7km transmission distance
Specification Resolution: Full HD input:1080p 60fps(downward compatibility)/ Camera: 1080 25fps(downward compatibility)
Auto switch frequency or manual frequency setup
Minimum transmission latency down to 30ms
HD camera with HD type C port, and HD type A port
Transmitter antenna connector is MMCX, Receiver antenna connector is SMA-jack
Fully support all MavLink protocol flight controller, and real time display OSD data on screen, such as flight controller parameters, frequency, bit stream, transmission RSSI and recording indicator etc.
HD recording on both of transmitter and receiver side (MP4 format and every 3min to save a recording file)
Advance algorithm for H.264 compressed format, 20Mbps bit stream and auto adjustment
High frequency transmission at 5.8GHz for perfect image quality
Use TF card for firmware upgrade (by manufacturer)
Weight: Transmitter 60g; Receiver 108g (not include the antennas)
Working environment: 0°C- 50°C
Dimensions:Transmitter 32x62x24mm; Receiver 93x58x17mm
Working voltage range:DC7-26V(2S-6S battery)
