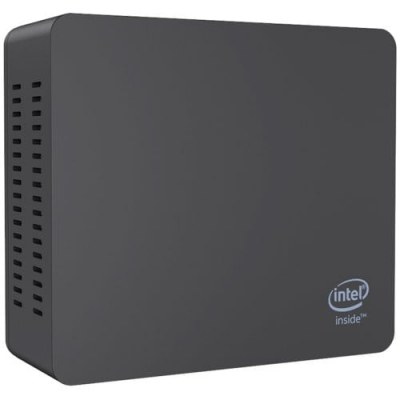

AP35 Intel Apollo Lake J3355 Mini PC

AP35 Intel Apollo Lake J3355 Mini PC
Brand: A95X
Category: Mini PC
  • 1: CPU: Intel Apollo Lake J3355
  • 2: RAM: 4G + ROM: 64G
  • 3: 5G WiFi: Yes
  • 4: Bluetooth: Bluetooth4.0
  • 5: Power Adapter Input: 100-240V / 50-60Hz
  • 6: Interface: 3.5mm Audio,DC 12V,HDMI,LAN,TF card,USB3.0

AP35 Intel Apollo Lake J3355 Mini PC - Specs

Product Details

  • Features

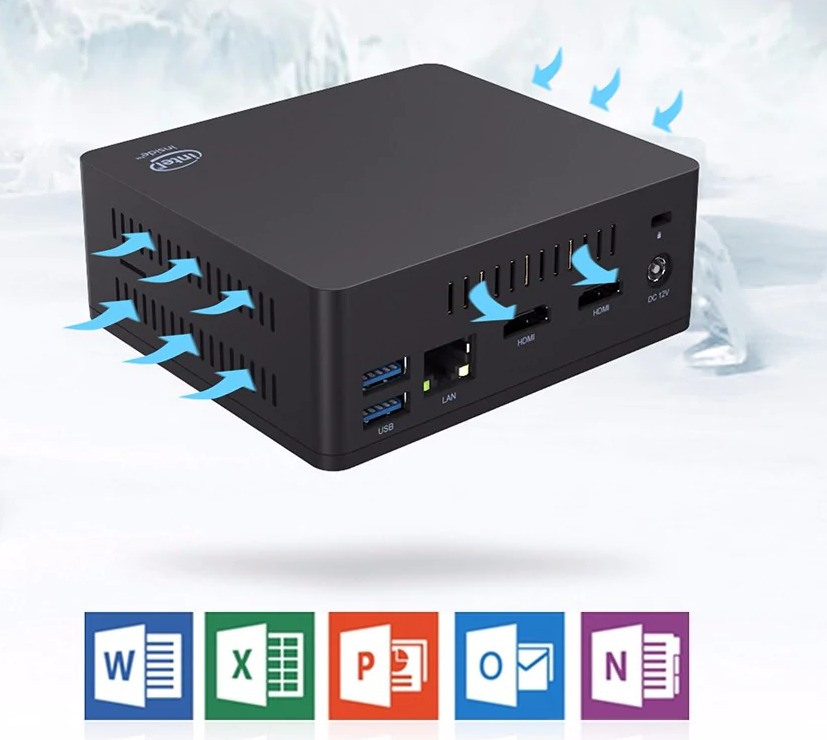

    Excellent heat dissipation performance, through the heat dissipation of the casing, achieving zero noise, giving you a quiet and comfortable environment
    Living room network TV host, connect to the network, easy to watch the massive video
    Small and light, space saving, powerful performance, easy to carry
  • Specification
    Model: AP35
    Type: Mini PC
    CPU: Intel Apollo Lake J3355
    Core: Dual Core
    GPU: Intel HD Graphics 500
    RAM: 4G
    RAM Type: LPDDR4
    ROM: 64G
    Max. Extended Capacity: TF card up to 64GB (not included)

    Decoder Format: H.263,H.264,HD MPEG4
    Video format: 4K,AVI,DAT,ISO,MKV,MP4,MPEG,MPEG-1,MPEG-4,MPEG1,MPEG2,MPEG4,RM,WMV
    Audio format: AAC,APE,FLAC,MP3,RM,WMA
    Photo Format: GIF,JPEG,JPG,PNG
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: Yes
    WIFI: 802.11 a/b/g/n/ac, Dual-band WiFi 2.4GHz/5GHz , Dual wireless antenna
    Bluetooth: Bluetooth4.0
    Power Supply: Charge Adapter
    Interface: 3.5mm Audio,DC 12V,HDMI,LAN,TF card,USB3.0
    Antenna: Yes
    Language: English,Germany,Italian,Spanish,Traditional Chinese
    DVD Support: No
    HDMI Version: 1.4
    Other Functions: Others
    Power Consumption.: Standby: less than 0.5W, Normal: less than 12W
    RJ45 Port Speed: 1000M

    System Bit: 64Bit
    WiFi Chip: Intel 3165
    System Activation: Yes

    Power Type: External Power Adapter Mode
    Power Input Vol: 12V
    Suggest Input: 12V 3A
    Power Adapter Input: 100-240V / 50-60Hz

    Product weight: 0.2230 kg
    Package weight: 0.5760 kg
    Product size (L x W x H): 11.50 x 10.20 x 4.50 cm / 4.53 x 4.02 x 1.77 inches
    Package size (L x W x H): 19.45 x 12.25 x 5.50 cm / 7.66 x 4.82 x 2.17 inches
  • Package content
    1 x Mini PC
    1 x Power Adapter
    2 x HDMI Cable
    1 x Bracket
    1 x Bag of Hard Disk Screws
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

AP35 Intel Apollo Lake J3355 Office Mini PC

Chinese company presented a Mini PC AP35 Intel Apollo Lake J3355. The new PC will have a compact case with fanless design, as well as Intel Celeron processor “Apollo Lake”.

The sizes of AP35 are 11.50 x 10.20 x 4.50 cm at a weight of about 0.223 kg. The heart of the device is the “desktop” version of the Celeron J3355 processor. This CR is made on 14nm technology and has on board four cores with a basic clock frequency of 1.5 GHz with the possibility of increasing up to 2.3 GHz.

Today we find a new mini PC called AP35 that basically catches our attention by using a very rarely seen processor in products, Chinese an Intel Celeron J3355 of the Apollo Lake family and released at the end of 2016. It seems that we are going to see even for quite some time processors of this family of Intel still on the market with the problems that Intel is having from Stock. Otherwise a mini PC with a box that we have seen before, with HDMI output for two monitors but limited to resolutions 4K 30fps and a TDP of only 10W a very low consumption for a PC with which we can move Windows 10 if we do not demand too much because it has only 4GB of RAM.

AP35 includes an Apollo lake processor manufactured in 14nm the Intel Celeron J3355 Dual Core that includes an Intel HD Graphics 500 GPU. It also includes 4GB of LPDDR4 RAM and 64GB of eMMc storage memory, although fortunately this time we have a free MSATA port and we suppose a SATA3 as it has a bay for 2.5 inch drives.

For wireless networks the AP35 includes WiFi aC Dual Band and Bluetooth 4.0 and at the level of 4 USB 3.0 ports, 3.5mm jack, microSD card reader, Gigabit Ethernet port and a pair of HDMI 1.4b video outputs. It also includes Kensington anchorage in the chassis and is compatible with VESA type brackets.

The AP35 Intel Apollo Lake J3355 Mini PC will work under the 64-bit Windows 10 Home operating system. The miniature desktop will go on sale at Gearbest Mall. Its cost will be about $146.99 for Flash Sale.
