ATOMRC Cinetern CT150 4S
-
1: FC: ATOMRC Exceed F405 DJI MINI
-
2: IMU: MPU6000 accelerometer/gyro
-
3: OSD: Betaf light OSD
-
4: Motor: ATOMRC Photon 1408 4000KV
-
5: Prop: Gemfan 75mm Propeller

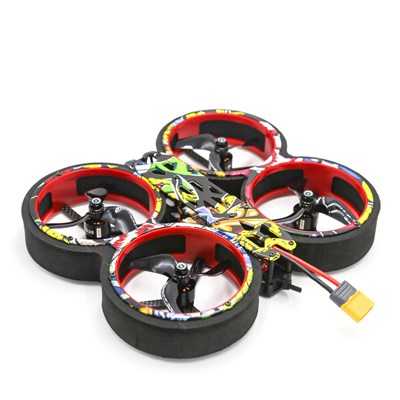

SKYZONE ATOMRC Cinetern CT150 4S Racing Drone
This brand, which belongs to the manufacturer Skyzone, offers a second Cinewhoop. More imposing than the CT100 model, the CT150 has a diagonal of 15 cm from engine to engine. It adopts the principle of many Cinewhoops of the moment: ducts that protect the propellers and engines. To prevent these ducts from being damaged in case of impact, they are wrapped with a layer of foam. The carbon structure is clad, as on the CT100, with flashy colors.
The flight controller is an AtomRC Exceed F405 Mini. This electronics is composed of a flight controller based on an F4 processor with a USB-C connector, flashed with Betaflight, with 2 UARTs, associated with an ESC 4 in 1 of 20A. The motors are brushless Photon 1408 to 4000KV for three-bladed 75mm Gemfan propellers. The camera is a Foxeer Razor Nano associated with a 25 mW analog 5.8 GHz video transmitter, capable of emitting up to 300 mW. The manufacturer recommends 4S batteries from 1300 to 2000 mAh, with an XT60 connector.
The analog 4S version is offered at $199.99 from Banggood. It should also be proposed in 6S analog and 4S digital version with an FPV Air Unit and a DJI camera.
SPECS
Product Details
| Features |
1. 3K Carbon Frame, even lighter weight and more durable 2. Pre-turned PID gives most smooth flying experience 3. Ducted design makes the drone safe to fly indoor 4. 90 Degree type-c connector easily access to FC 5. Lots of space for DJI VTX upgrading |
| Specification |
Brand: ATOMRC Item Name: CT150 Wheelbase: 150mm Frame: 3K Carbon with colorful painting FC: ATOMRC Exceed F405 DJI MINI MCU: 168MHZSTM32F411 IMU: MPU6000 accelerometer/gyro (SPI) OSD: Betaf light OSD UART: 2 PWM/Dshot Output : 6 BEC: 3.3/5V Buil t in inverter for SBUS (RX2) Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes USB connector: Type C TARGET: ATOMRCF411 ESC: ATOMRC Exceed BLS 20A 4 In 1 MINI Motor: ATOMRC Photon 1408 4000KV VTX: ATOMRC Exceed 300mW Camera: Foxeer Razer NANO 1.8mm 4:3 Prop: Gemfan 75mm Propeller Package Weight: 397g Carton Size: 22.5*26.5*8cm Battery: 4S 1300-1500mAh (Not included) |
