AuroraRC Smooth-R
-
1: Wheelbase: 100mm
-
2: Motor: 1204-5200kv
-
3: Blade: HQProp T2x2x4
-
4: VTX: 25-100-200mw 48CH VTX
-
5: Camera: Caddx ANT 1200TVLFPV

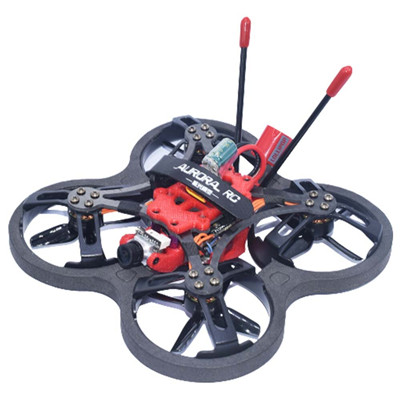

AuroraRC Smooth-R 100mm 2 Inch 3-4S FPV Racing Drone
It is a new Cinewhoop that AuroraRC offers! The Smooth-R is a device with a 10 cm diagonal from motor to motor. Its dimensions are 13.7 x 13.7x 3 cm for a weight of 90 grams without battery. The motors are brushless 1204 to 5200KV for propellers quadripal 2 inches HQProp T2x2x4.
The flight controller is a F405 flashed with Betaflight, with an active OSD, 4 UARTs, a Blackbox of 8 MB. It is coupled to a 20A BLheli_S ESC. The FPV camera is a Caddx Ant 1200TVL. The images are broadcast by a 5.8 GHz analog video transmitter compatible with 48 channels, with a power of 25 mW (the maximum allowed in France), 100 and 200 mW.
The power supply is an XT30. AuroraRC provides two Lipo 3S of 450 mAh 80C. The device is compatible with 4S up to 550 mAh. It can be delivered without radio receiver (you have to install yours), or pre-installed with a receiver FS-RX2A, AC900, XM + FrSky or Crossfire Nano RX TBS. The price? The Smooth-R starts at 187 € at Banggood (without shipping, without taxes). It’s a pity that nothing seems to be planned to accommodate a GoPro naked camera or equivalent…
SPECS
Product Details
| Features |
CPU: STM32F405RGT6 MPU: MPU6000(SPI) Firmware: Betaflight BETAFLIGHTF4.HEX(4.2.0) Built-in Betaflight OSD(AT7456E) BEC Output(two): 9V/2A,5V2.5A USART: UART1,UART2,UART3,UART6 Receiver: SBUS,IBUS,DSM2,DSMX,TBS(UART6) Blackbo: 8MB Built-in Current Sensor Input Voltage: 2-6S Lipo ESC Current:20A Firmware: BLHELI-S G-H-30.HEX |
| Specification |
Item Name: Smooth-R Drone Version:PNP, BNF Size: 137*137*30mm Wheelbase: 100mm Weight: 90g(without battery) FC&ESCI: F405 BLS 20A AIO Motor: 1204-5200kv Blade: HQProp T2x2x4 VTX: 25-100-200mw 48CH VTX Camera: Caddx ANT 1200TVLFPV camera Power plug: XT30 plug Battery: 450mah 3S 80C Battery |
