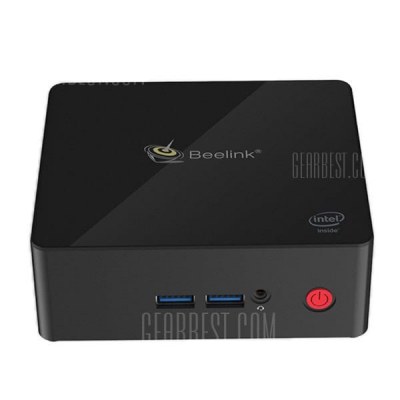

Beelink Gemini X45

Beelink Gemini X45
Brand: Beelink
Category: Mini PC
  • Feature 1: CPU: Intel Gemini Lake J4105
  • Feature 2: System: Windows 10
  • Feature 3: GPU: Intel HD Graphics 600
  • Feature 4: LPDDR4 4GB RAM + 64GB
  • Feature 5: 2.4GHz + 5GHz dual band WiFi
  • Feature 6: Video format: 1080P

Beelink Gemini X45 - Video

Beelink Gemini X45 - Price

  • GearBest.com Beelink Gemini X45 Basic Mini PC - BLACK EU PLUG ( 4GB + 64GB ) $189.99
    View Offer

Beelink Gemini X45 - Specs

Product Details

  • Features
    ● Intel Gemini Lake Celeron J4105 CPU, 4 core 4 threads,64 bit, 14nm 1.5GHz - 2.3GHz, 4M cache
    ● Intel HD Graphics 600 GPU, 4K 60Hz
    ● LPDDR4 4GB RAM + 64GB 3D eMMC / LPDDR4 6GB RAM + 128GB mSATA SSD
    ● Support Windows and Linux operation system
    ● 2.4GHz + 5GHz dual band WiFi and 1000Mbps Ethernet, fast and stable network access
  • Specification
    Brand: Beelink
    Type: Mini PC
    CPU: Intel Gemini Lake J4105
    Core: Quad Core
    GPU: Intel HD Graphics 600
    Max. Extended Capacity: TF card up to 64GB (not included)

    Decoder Format: H.263,H.264,HD MPEG4
    Video format: 1080P,AVI,DAT,ISO,MKV,MP4,MPEG,MPEG1,MPEG2,MPEG4,RM,WMV
    Audio format: AAC,APE,FLAC,MP3,OGG,RM,WMA
    Photo Format: GIF,JPEG,JPG,PNG
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: Yes
    WIFI: 802.11 b/g/n/ac
    Bluetooth: Bluetooth4.0
    Power Supply: Charge Adapter
    Interface: 3.5mm Audio,DC 12V,HDMI,LAN,TF card,USB3.0
    Antenna: Yes
    Camera: Without
    Language: English,Germany,Italian,Simplified Chinese,Spanish
    DVD Support: No
    HDMI Version: 2.0
    Other Functions: Others
    Power Consumption.: Standby: less than 0.5W; Nomal: less than 12W
    RJ45 Port Speed: 1000Mbps

    System Bit: 64Bit
    WiFi Chip: 3165

    Power Type: External Power Adapter Mode

    Product weight: 0.3080 kg
    Package weight: 0.6400 kg
    Product size (L x W x H): 11.50 x 10.20 x 4.30 cm / 4.53 x 4.02 x 1.69 inches
    Package size (L x W x H): 19.45 x 12.25 x 5.50 cm / 7.66 x 4.82 x 2.17 inches
  • Package content

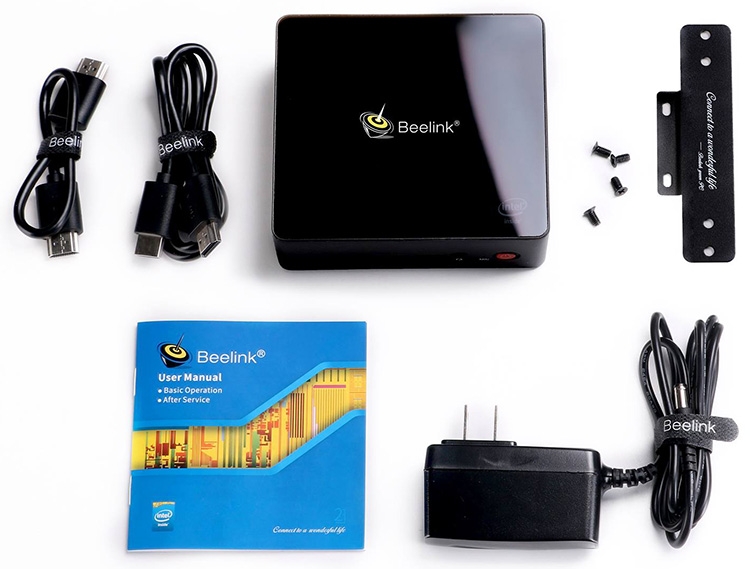

    1 x Mini PC, 1 x Power Adapter, 2 x HDMI Cable ( 20cm / 80cm ), 1 x Wall Bracket, 2 x Bag of Screws, 1 x English User Manual

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

Beelink Gemini X45 Basic Mini PC

Beelink Gemini X45



Chinese manufacturer of mini-PC and TV-box: Beelink decided to join the number of companies producing compact systems based on economical Intel Gemini Lake J-series processors, including the flagship SoC Pentium Silver J5005. Recall that the last we dedicated a separate material in the context of its successful confrontation with the legendary “quad core” Core 2 Quad Q6600.

The Mini-PC Beelink Gemini X45 will be ready to work without buying additional components, such as a drive and / or RAM. In version X55 it contains, along with a 10-watt Pentium Silver J4105 processor, 8 GB of DRAM type LPDDR4 with an effective frequency of 2400 MHz, a mSATA SSD-drive with a capacity of 64 GB, integrated into the body of SoC graphics Intel UHD 605 with support for resolutions up to 4K at 60 Hz, a wireless adapter Wi-Fi (2 × 2 802.11ac) / Bluetooth and an active cooling system of the notebook type. The aluminum body-radiator for heat removal would go better, but it is not so cheap in manufacturing.

Considered a mini-PC with a thickness of only 43 mm can be amplified by a second solid-state drive in the form of an expansion card mSATA and 2.5-inch SSD / HDD with a SATA 6 Gb / s connector. Among worthy mentioning external interface connectors are allocated USB 3.0 (4 pcs.) And HDMI 2.0 (2 pcs.), As well as an RJ-45 jack for network cable.

Along with the Gemini X55 system, Beelink will release more affordable Gemini X45 configurations with the SoC Celeron J4105 on board. One of them assumes the presence of 6 GB of RAM LPDDR4-2400 and 128-GB mSATA SSD. Alternative and, apparently, the cheapest configuration of all is limited to 4 GB DRAM and 64-GB flash memory chip eMMC.

The results of the internal testing of the Gemini X mini-PCs show a significant advantage over the 64-GB eMMC chip Samsung CJNB4R: 482/444 MB / s (read / write) versus 166/133 MB / s (read / write) in the AS SSD 2.0 test. Complex benchmark PCMark 10 evaluates the performance of the older version of Gemini X in 1993 points, which is quite good for a computer on the “former Atom”.

The standard bundle of Beelink Gemini X includes two HDMI cables, a mount, a user’s manual and an external power adapter of low power. With prices for the Gemini X55 and Gemini X45, the manufacturer will be determined a little later.
