Beelink Kaby G5 Mini PC

Beelink Kaby G5 Mini PC
Brand: Beelink
Category: Mini PC
  • 1: Intel Kaby Lake i5-8305G CPU
  • 2: Intel HD Graphics 630 GPU
  • 3: Support 4TB or 2.5 inch HDD
  • 4: Support H.265 decoding
  • 5: Support 4K video display
  • 6: 1000Mbps Ethernet

Beelink Kaby G5 Mini PC - Coupon

Geekbuying Coupon For You!
i5-8305G Barebone – Coupon: QWYTEPJD  Price: $559.00
i5-8305G 8GB/256GB – Coupon: PGGFFYTH  Price: $759.00
i5-8305G 16GB/256GB – Coupon: FCAAYGHM  Price: $799.00

Beelink Kaby G5 Mini PC - Price

  • Geekbuying.com Beelink Kaby G5 - i5-8305G Barebone - Coupon: QWYTEPJD $559.00
    View Offer
  • Geekbuying.com Beelink Kaby G5 - i5-8305G 8GB/256GB - Coupon: PGGFFYTH $759.00
    View Offer
  • Geekbuying.com Beelink Kaby G5 - i5-8305G 16GB/256GB - Coupon: FCAAYGHM $799.00
    View Offer
  • GearBest.com Beelink Kaby G5 $1099.99
    View Offer

Beelink Kaby G5 Mini PC - Specs

Product Details

  • Features
    Intel Kaby Lake i5-8305G CPU,quad-core, 8 thread, 3.8GHz
    Intel HD Graphics 630 GPU
    Support 4TB or 2.5 inch HDD
    Support H.265 decoding, saving bandwidth
    Support 4K video display
    1000Mbps Ethernet, fast network access
    2.4GHz + 5.8GHz dual-band WiFi
  • Specification
    Brand: Beelink
    Type: Mini PC
    CPU: Intel Kaby Lake i5-8305G
    Core: Quad Core
    GPU: Intel HD Graphics 630
    RAM Type: DDR4
    Maximum External Hard Drives Capacity: 4TB

    Decoder Format: H.263,H.264,H.265,HD MPEG4
    Video format: 4K,AVI,DAT,ISO,MKV,MP4,MPEG,MPEG1,MPEG2,MPEG4,RM,WMV
    Audio format: AAC,APE,FLAC,MP3,OGG,RM,WMA
    Photo Format: GIF,JPEG,JPG,PNG
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: No
    WIFI: 802.11 b/g/n/ac
    Bluetooth: Bluetooth4.0
    Power Supply: Charge Adapter
    Interface: 3.5mm Audio,DC Power Port,DP,HDMI,Mic,RJ45,SPK,USB3.0
    Antenna: Yes
    Camera: Without
    Language: English,French,Germany,Italian,Japanese,Russian,Spanish
    HDMI Version: 2.0
    Other Functions: Others
    Power Consumption.: less than 108W
    RJ45 Port Speed: 1000Mbps

    System Activation: Yes

    Power Type: External Power Adapter Mode

    Battery Type: CR2032 Button Battery ( built-in )
    Battery Capacity: 210mAh

    Product weight: 1.3620 kg
    Package weight: 2.7540 kg
    Product size (L x W x H): 17.30 x 15.30 x 6.50 cm / 6.81 x 6.02 x 2.56 inches
    Package size (L x W x H): 21.70 x 18.50 x 12.40 cm / 8.54 x 7.28 x 4.88 inches
  • Package content
    1 x Mini PC, 1 x Power Adapter, 1 x AC Cable, 1 x DP Cable, 1 x HDMI Cable, 1 x Hard Disk Cable, 1 x Bag of Screws, 1 x English Manual

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 10 / 10
  • Connectivity 9 / 10

Beelink Kaby G5 i5-8305G / Mini PC

Beelink Kaby G5 Mini PC

Beelink Company at the Hong Kong Sourcing fair presented a scattering of mini-PCs aimed at different segments.

In July 2018, the Chinese manufacturer of mini-PCs and set-top boxes Beelink introduced its new compact device called Beelink Kaby G5. The new mini-PC is characterized by a relatively good price and a powerful Intel Kaby Lake i5-8305G processor.

In this article we will make the first review of the novelty from Beelink and try to find out if it is worth its money. So, let’s start with the design.

Beelink Kaby G5 Mini PC

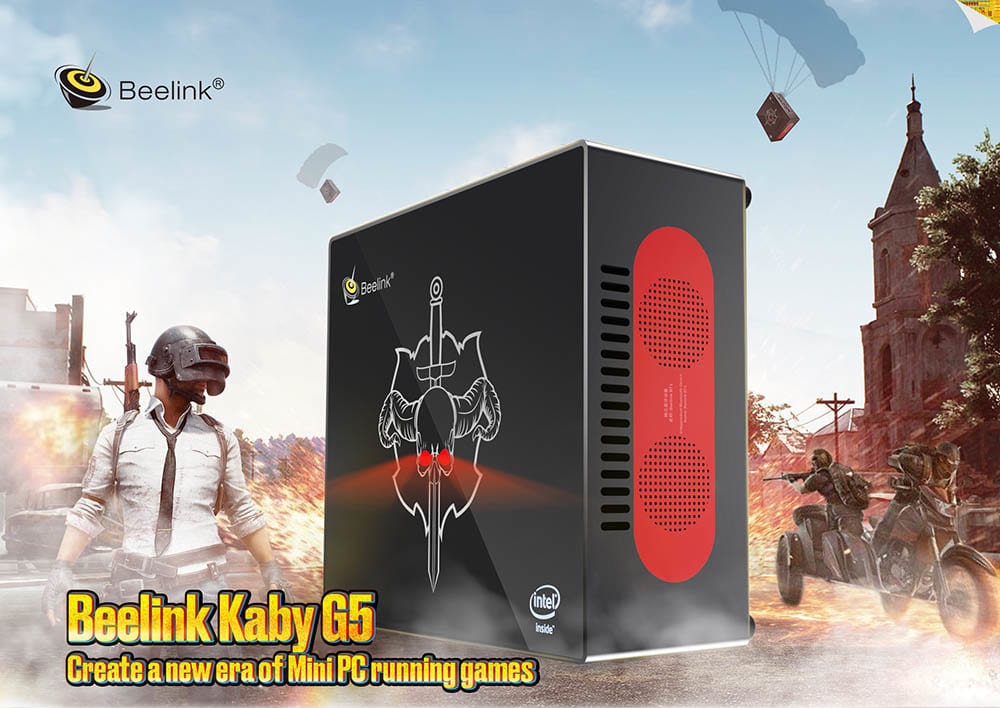

Externally, Beelink Kaby G5 is not much different from other modern mini PCs. This is a compact plastic box in black. The height of the case is 173 mm, width 153 mm, thickness 65 mm, weight 1362 grams. In other words, this device has a size slightly larger than a 6.2 inch smartphone.

The use of plastic as the main material allowed to minimize the cost and thickness. Even so, the mini PC has many ports and connectors. On the front and back panels are: power button, 4 USB 3.0 ports, headphone jack with microphone support, LAN port, 12v DC port and 2 HDMI 2.0 video outputs.

Beelink Kaby G5 Mini PC

On the side face is a slot for TF memory card and a grid for ventilation and cooling mini PC.

The package includes: mini PC, power adapter, 2 HDMI cables, wall bracket, spare screws, user manual.

Model Kaby G5 received a Quad-core Intel Kaby Lake i5-8305G processor with a clock frequency of 2.5 GHz – 3.8 GHz. Also, the device comes with an Intel HD Graphics 630 GPU.

As for the memory, the Kaby G5 received 8/16 GB of RAM + 256 GB mSATA-SSD drive. You can also find the basic version of Beelink Gemini X45 with 4 GB of RAM LPDDR4 + 64 GB with 3D eMMC drive. Even the basic performance is sufficient for viewing web pages, simple games or playing multimedia content in a 4K resolution with a frequency of 60 Hz.

Fast and stable network access provides 2.4 GHz + 5 GHz dual-band WiFi and 1000 Mbps Ethernet.

Beelink Kaby G5 Mini PC

Beelink Kaby G5 has support for Windows and Linux operating systems.

Also, there is an active cooling system, like a laptop. The system is made entirely of copper. It consists of heat pipes, a radiator and a small cooler. Of course, the aluminum radiator housing would be better suited for heat dissipation, but then the price of a mini PC would be higher.

Beelink Kaby G5 Mini PC - Reviews

  • Be the first to add a Review

    Please post a user review only if you have / had this product.
