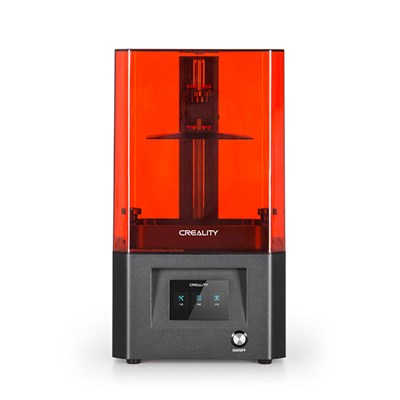

Creality 3D® LD-002H

Creality 3D® LD-002H
Brand: Creality3D
Category: 3D Printer
  • 1: Large Molding Size
  • 2: LCD HD Screen
  • 3: Upgrade UV Light Source Module
  • 4: Z-axis Linear Rail
  • 5: Air Filtration System
  • 6: Manually Leveling System

Creality 3D® LD-002H - Video

Creality 3D® LD-002H - Coupon

Banggood Code: 9465bc
Price: $229.00
Time: 2020-10-26 CN

Creality 3D® LD-002H - Price

Creality 3D® LD-002H - Specs

Product Details

  • Features
    1. Large Molding Size
    2. Refined Results
    3. LCD HD Screen
    4. Upgrade UV Light Source Module
    5. Z-axis Linear Rail
    6. Air Filtration System with Activated Carbon
    7. Manually Leveling System
    8. Powerful Slicer Software
    9. 3.5 Inchi Full-color Touch Screen
  • Specification
    LD-002H Resin 3D Printer Properties
    Modeling Technology: LCD
    Print Size: 130x82x160mm
    Print Speed: 1-4s/layer
    LD-002H Resin 3D Printer Hardware
    Screen: 3.5-inch touch screen
    Machine Size: 221x221x403mm
    Package Size: 295x295x540mm
    Machine Weight: 8.3KG
    LD-002H Resin 3D Printer Extruder Hardware
    Layer Height: 0.03-0.05mm
    XY axis Precision: 0.051mm
  • Package content
    1 x 3D Printer

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

Creality 3D® LD-002H UV Resin 3D Printer

The Chinese brand of 3D printers, Creality, is trying to make this technology available to the masses. With simple device assembly options, control thanks to a lightweight UI and 3D models available almost everywhere, it’s a toy even for the less able. Creality LD-002H is the latest model in the segment of UV resin printers.

Compared to the first generation, it contains improvements and a new red design. The most significant improvements clearly include a print speed of up to 1 – 4 s per layer, larger print dimensions of 130 x 82 x 160 mm or a 2K LCD screen to capture the greatest possible detail.

Our verified seller of Creality printers, e-shop Banggood, has included in the offer the improved Creality LD-002H so far only in Chinese stock. A coupon and European Railway Direct Mail train service are available for this, which is slower but is free and you do not pay customs duties.

However, if you are very interested in this 3D printer, you can also choose the more expensive EU Priority Line transport, with which the package will be delivered to you from 15 to 20 working days.

The resin 3D printer segment is not so popular, but there are still rock fans who prefer them to those classic FDM printers. Creality LD-002H is basically an improved version of Creality LD-002R and brings faster printing and different dimensions for printing.

Now to the numbers themselves. The print speed here is 1-4 s per layer, which is a significant improvement over 6-18 s per layer. The print size has dimensions of 130 x 82 x 160 mm, where there is also a difference compared to the previous model.

The size of the entire 3D printer is 221 x 221 x 403 mm and if you want to move it, you have to lift 6.5 kg, which is an acceptable weight. Resin 3D printers also boast extreme accuracy, which in this case is 0.051 mm accuracy of the X and Y axes.

It can print layers as thin as 0.03 – 0.05 mm, which no FDM 3D printer can do. The 2K LCD HD screen with an accurate resolution of 2560 x 1620 px helps to do this . It also has an advanced UV light source with a power of up to 8000 uw / cm².

The front also contains a 3.5″ touch screen, which is used to control the Creality LD-002H 3D printer. Many printers only contain segment displays that are operated by a button, so this is an advanced feature.

Of course, there is also the possibility of printing 3D models via a USB key, it has an activated carbon filtration system, a simple leveling system or practical software for editing 3D models called CHITU BOX.

When printing, you can use a conventional solid photosensitive resin, a standard resin, an elastomeric resin, a high-strength resin, a dental resin or a transparent resin.
