Diatone 2019 GT R249

Diatone 2019 GT R249
Brand: Diatone
Category: Drones
  • Feature 1: Receiver:Frsky XM Plus
  • Feature 2: Wheel base: 95mm
  • Feature 3: Propeller: 2 inch
  • Feature 4: Lipo battery: support 4S ( not included )
  • Feature 5: ESC: F25 / 25A 4S ESC Dshot600
  • Feature 6: Motor: Racing MB1105 5500KV

Diatone 2019 GT R249 - Price

Diatone 2019 GT R249 - Specs

Product Details

  • Features
    BNF version which has a Frsky XM plus receiver
    F4 flight controller with OSD
    25A ESC
    RunCam Micro Swift camera
    RunCam TX200U 48CH 25 / 200mW
  • Specification
    Receiver:Frsky XM Plus
    Wheel base: 95mm
    Propeller: 2 inch
    Lipo battery: support 4S ( not included )
    Flight controller: F405 mini, MPU6000, AT7456 OSD, 16M flash, 5V 1A BEC
    ESC: F25 / 25A 4S ESC Dshot600
    Motor: Racing MB1105 5500KV
    Camera: RunCam Micro Swift
    VTX:RunCam TX200U 48CH 25 / 200mW

    Type: Frame Kit

    Product weight: 0.0750 kg
    Package weight: 0.1200 kg
    Product size (L x W x H): 11.00 x 11.00 x 3.50 cm / 4.33 x 4.33 x 1.38 inches
    Package size (L x W x H): 15.00 x 15.00 x 5.00 cm / 5.91 x 5.91 x 1.97 inches
  • Package content
    1 x Diatone 2019 GT R249 RC Drone
    1 x Receiver

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

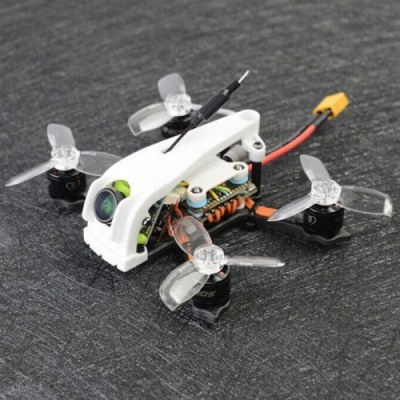

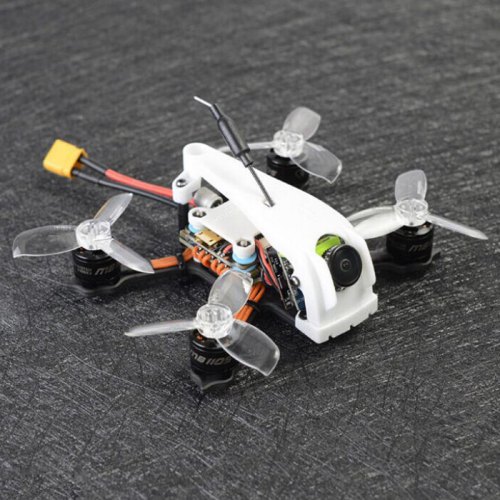

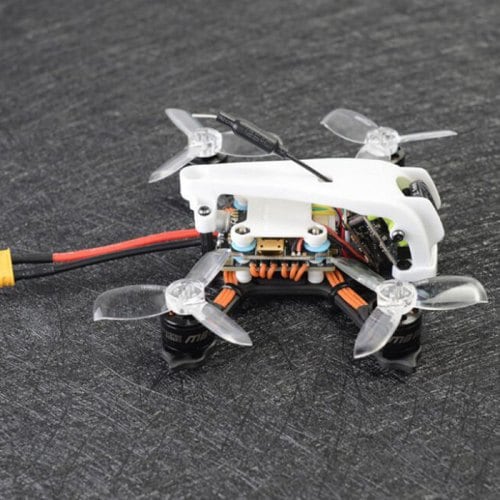

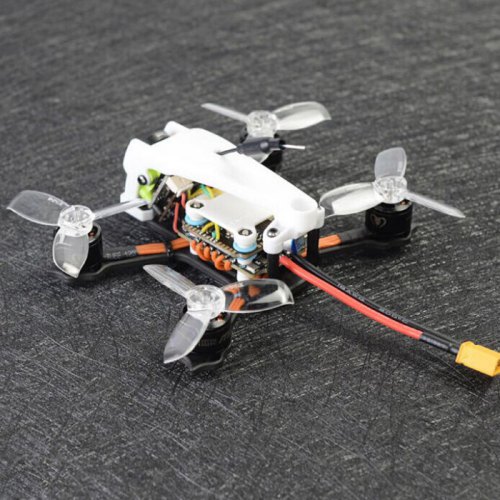

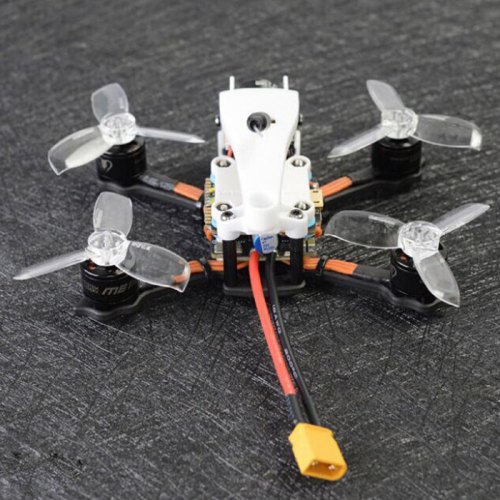

Diatone 2019 GT R249 95mm 2 inch 4S FPV Racing RC Drone

Until 2019, another month and a half, but the other day Diatone announced 4 micro quadrocopters FPV for 2019, under the digital names: GT R239, R249, R249+ and R349. All of them differ in size, so the smallest version with a size of 90 mm is the GT R239, and its case is plastic, and it also has protection + it flies on the 3S battery, while all the others have a carbon fiber frame and 4S batteries.

Diatone 2019 GT R249

And so, the dimensions of the drones are as follows:

  • Diatone GT R239 – 90 mm;
  • Diatone GT R249 – 95 mm;
  • Diatone GT R249+ – 115 mm;
  • Diatone GT R349 – 135 mm.

The manufacturer promises micro drones in 3 colors:

  • White;
  • Transparent;
  • The black.

All quadcopters are equipped with a flight controller Mamba F405, which is designed specifically for micro dimensions. Classic Camera – RunCam Micro Swift. Video transmitter also from RunCam – RunCam TX200U with adjustable power from 25 to 200mW.

Diatone 2019 GT R249

For easy comparison, let’s look at the table below:

Version GT R239 GT R249 GT R249 + GT R349
The size 90 mm 95 mm 115 mm 135 mm
Frame material plastic carbon fiber carbon fiber carbon fiber
Propeller protection there is not not not
Flight controller Mamba F405 mini Mamba F405 mini Mamba F405 mini Mamba F405 mini
Motors MB1105 5500KV MB1105 5500KV MB1105 5500KV MB1408 4000KV
Propellers 2 inches 2 inches 2.5 inches 3 inches
Speed ​​Regulators Mamba F25 / 25A 3S Mamba F25 / 25A 4S Mamba F25 / 25A 4S Mamba F25 / 25A 4S
Camera RunCam Micro Swift RunCam Micro Swift RunCam Micro Swift RunCam Micro Swift
Video transmitter RunCam TX200U 48CH / 5.8G 25 ~ 200mW RunCam TX200U 48CH / 5.8G 25 ~ 200mW RunCam TX200U 48CH / 5.8G 25 ~ 200mW RunCam TX200U 48CH / 5.8G 25 ~ 200mW
Battery type 3S 4S 4S 4S
Battery Connector Type Jst XT30 XT30 XT30
Weight 72 g 75g 77 g 130 g



Diatone 2019 GT R249

You can see these two drones below and it will become clear to you that they do not have any particular visual differences – the same carbon frame, no protection. The only difference is in the size of the frames and the size of the propellers. The Diatone 2019 GT R249 has a frame size of 95 mm and 2 inch propellers, while the R249+ has a frame of 115 mm and 2.5-inch propellers. Everything else, including the engines – the same.

Diatone 2019 GT R249

Summary

Excellent micro drones for flying around the house and on the street, due to their small size, they do not require large platforms for flying, like standard mini racing drones with a frame of 220 mm and more. All are quite powerful regulators of revolutions of 25 amperes, which can easily give all the power to engines with a huge rating of 5500KV.

Plastic in R239 from the company Mitsubishi, stated that this composite is very durable and poorly susceptible to deformation. Engines develop traction up to 120 grams per 1 engine; this is a very good indicator for such small motors. In all other respects, it is quite good quadrocopters in the MICRO niche, for an adequate price, starting at $109.99. This drone will be a great gift and just a good choice for yourself.

Do not forget that, complete with the drone, there is no control equipment and FPV glasses / helmet, you need to buy it separately, but do not worry, these components need to be bought for all less serious racing quadcopters.
