DIGOO DG-KS7204

DIGOO DG-KS7204

Brand: Other
Category: Cameras
  • 1: Rated Voltage DC12V 2A
  • 2: Rated Power 100W
  • 3: Support H.264
  • 4: Compatible Protocol Onvif protocol
  • 5: Effective Pixels 1080P, 2 megapixel

Our Rating

The overall rating is based on review by our experts

8.4
  • Design 8 / 10
  • Camera 9 / 10
  • Display 8 / 10
  • Features 9 / 10
  • Performance 8 / 10

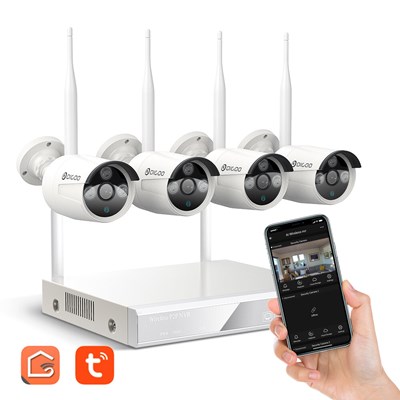

DIGOO DG-KS7204 NVR Suit with 4 Pcs 1080P Wireless IPC Cameras

We present you a new set of four Digoo DG-KS7204 IP cameras with ONVIF protocol support, FullHD resolution, night vision and motion detection. In addition to cameras, you will also find an NVR recording device in the set, to which you can add an SSD or HDD disc.

The Digoo DG-KS7204 set contains 4 wireless cameras with antenna, NVR device (without disk), 4 power cables for the camera and one for NVR, screws for fixing the cameras, mouse, Ethernet cable and screws for fixing the disk.

The cameras have a 1 / 2.9″, 2 MPx CMO S sensor with 1080p resolution. Their viewing angle is 130°, they have night vision support and also IP66 certification. The cameras are also suitable for outdoor use. As for the connection between the cameras and the NVR device, you do not need any cables. This connection is wireless.

The NVR device offers rich connectivity. There are 2 USB ports, RJ45 port for connection to the router, VGA and HDMI. The dimensions of this device are 26 x 4.5 x 24 cm (width, height, depth). It has two antennas for wireless connection to cameras. The maximum distance between the NVR and the camera can be 30 meters outdoors or 10 meters indoors with walls as obstacles.

You can connect up to 8 cameras to the NVR device at the same time. Thanks to the ONVIF protocol, there may be other cameras that support this protocol.

Each camera has 3 IR LEDs that take care of night vision. Of course, you will also find a PIR sensor here, which, if it detects movement, sends a notification to the phone. DigooLife or Tuya APP are applications that you can use to pair with your smartphone. You need to pair an NVR device, not a camera separately.

With this set, you can monitor the space 24 hours a day, 7 days a week. To save videos, you need to connect a hard drive to the NVR device. Supported are 2.5″ and 3.5″ drives with a maximum capacity of 4 TB.

SPECS

Product Details

Features Rated Voltage: DC12V 2A
Rated Power: 100W
Quantity of Screen Display: 1CH/4CH/8CH
Support APP: DigooLife / TuyaSmart APP
Specification Effective Pixels: 1080P, 2 megapixel
Lens: 1/2.9" 2.0M Pixel CMOS
Illuminance: 0.01Lux@F1.2 (color mode); 0.001 Lux@F1.2 (black and white mode); ≤0Lux (infrared light on)
Viewing Angle: 130°
Night Vision Distance: 15M
Playback Speed: 1/4, 1/2, 2X, 4X speed adjustable
Waterproof Level: IP66 Waterproof
Number of infrared lights: 3
Two-way intercom: not supported
Connection Method: Wireless IPC Mode
Interface: Power interface and reset button
