DJI MAVIC 2 Zoom

DJI MAVIC 2 Zoom

Brand: DJI
Category: Drones
  • 1: Sensor: 1/2.3 inch CMOS
  • 2: Still image size: 4000 x 3000
  • 3: Shutter speed: electronic shutter: 8 - 1/8000s
  • 4: Max. wind speed resistance:: 29 - 38kph
  • 5: GNSS: GPS + GLONASS

Our Rating

The overall rating is based on review by our experts

9.5
  • Design 10 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 10 / 10

DJI MAVIC 2 Zoom RC Drone

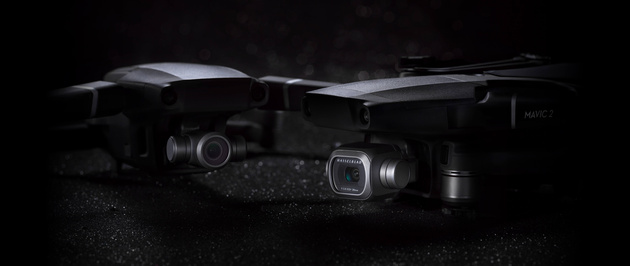

DJI Company in New York introduced a series of drones Mavic 2, which included two new quadrocopter: Mavic 2 Zoom and Mavic 2 Pro.

DJI MAVIC 2 Zoom

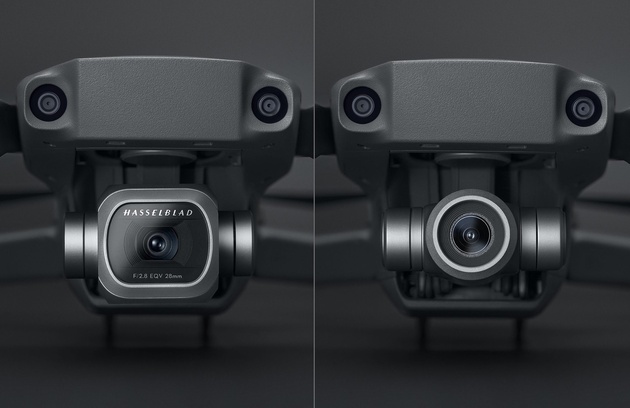

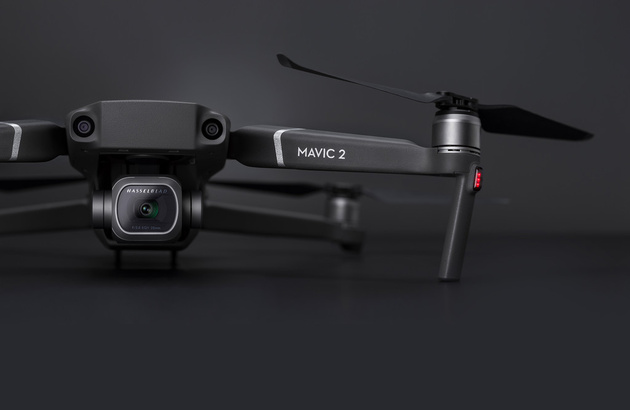

The main chip DJI Mavic 2 Pro, the price of which is set at around 1449 US dollars, is the use of a Hasselblad camera. Thus, this is the first quadrocopter with a camera from a Swedish manufacturer. It uses a 20-megapixel inch sensor, similar to what was installed in the Phantom 4 Pro.

DJI MAVIC 2 Zoom

The contribution of Hasselblad lies in optics, optimization and processing. The equivalent focal length of the lens is 28 mm, and the aperture is F/2.8. The new drone supports a ten-bit D-Log, Hybrid Log Gamma and is capable of shooting video in 4K HDR resolution.

DJI MAVIC 2 Zoom

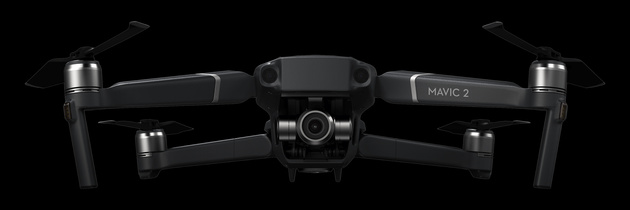

DJI Mavic 2 Zoom will cost cheaper – $1249. On the one hand, this quad copter is simpler in terms of camera characteristics: a 12-megapixel sensor measuring 1/2.3 inches. The main chip lies in the name – the lens of this drone covers a focal length of 24-48 (eq.), That is, the quadrocopter has a double optical zoom. To it is added a double digital zoom and if you shoot video in Full HD at the expense of a crop, the quality will not be lost, and the focal length will increase to 96 mm (eq.). Mavic 2 Zoom can also record 4K video at 30 frames per second. The video bitrate will be 100 megabits per second.

Interestingly, a new Dolly Zoom mode appeared: the camera holds the object, the drone flies back, but due to the zoom, a unique effect is obtained, which is often used in feature films.

Also, it was the Mavic 2 Zoom that got Super Resolution mode, which works in the telephoto position of the lens (48 mm): the drone shoots 9 photos and glues them into one, creating a 48-megapixel photo.

Mavic 2 Pro and Mavic 2 Zoom both received the Hyperlapse mode: a timeline in motion on a preprogrammed route.

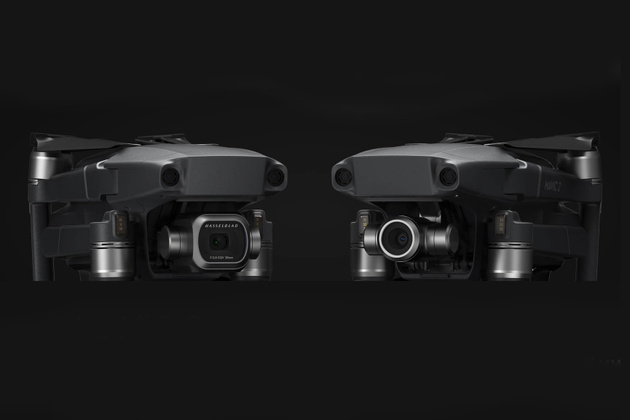

The difference between Mavic 2 Pro and Mavic 2 Zoom is only in the cameras, the Quadrocopters themselves are the same. Here DJI took great care about the flight time, increasing it to 31 minutes. New drones develop speeds of up to 72 kilometers per hour. In this case, the propellers became even quieter.

DJI MAVIC 2 Zoom

From the point of view of software, the ActiveTrack system was updated, which not only learned to better monitor the object, but also anticipated its movement if it disappeared from sight: for example, a car can go over a mountain or hide in trees – the drone will continue to track it, thanks to artificial intelligence.

Also updated the controller. The main innovation is the ability to receive video in Full HD quality at a distance of up to 8 kilometers. For comparison, in the previous version the transmission distance was twice less, and the quality was only 720p.

DJI MAVIC 2 Zoom

Drones began to be sold immediately after the presentation: it was this that DJI explained the delay in the announcement of the device and the large number of leaks.

SPECS

Product Details

Features Sensor: 1/2.3 inch CMOS, effective pixels: 12 million
Lens: FOV: about 83 degree ( 24mm ), about 48 degree ( 48mm ), 35 mm format equivalent: 24 - 48mm, aperture: f/2.8( 24mm ) – f/3.8 ( 48mm ), shooting range: 0.5m to infinity
ISO range: video: 100 - 3200; photo: 100 - 1600 ( auto ), 100 - 3200 ( manual )
Shutter speed: electronic shutter: 8 - 1/8000s
Still image size: 4000 x 3000
Still photography modes: Single Shot, Burst Shooting: 3 / 5 / 7 frames, auto exposure bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias, Interval ( JPEG: 2 / 3 / 5 / 7 / 10 / 15 / 20 / 30 / 60s, RAW: 5 / 7 / 10 / 15 / 20 / 30 / 60s )
Video resolution:
4K: 3840 x 2160 24 / 25 / 30fps
2.7K: 2688 x 1512 24 / 25 / 30 /48 / 50 / 60fps
FHD: 1920 x 1080 24 / 25 / 30 / 48 / 50 / 60 / 120fps
Max. video bitrate: 100Mbps
Color mode: D-Clinelike
Supported file system: FAT32 ( 32GB or less ); exFAT ( more than 32GB )
Photo format: JPEG / DNG ( RAW )
Video Format: MP4 / MOV ( MPEG-4 AV / H.264, HEVC/H.265 )

Aircraft
Takeoff weight: 905g
Dimensions: 214 x 91 x 84mm ( folded ); 322 x 242 x 84mm ( unfolded )
Diagonal length: 354mm
Max. ascent speed: 5n/s ( S-mode ), 4m/s ( P-mode )
Max. descent speed: 3m/s ( S-mode ), 3m/s ( P-mode )
Max. speed ( near sea level, no wind ): 72kph ( S-mode )
Max. service ceiling above sea level: 6000m
Max. flight time ( no wind ): 31 minutes ( at a consistent 25kph )
Max. hovering time ( no wind ): 29 minutes
Max. flight distance ( no wind ): 18km ( at a consistent 50kph )
Max. wind speed resistance:: 29 - 38kph
Max. tilt angle: 35 degree ( S- mode, with remote controller ), 25 degree ( P-mode )
Max. angular velocity: 200 degree / s
Operating temperature range: -10 to 40 Deg.C
Operating frequency; 2.400 - 2.483GHz, 5.725 - 5.850GHz
Transmission power ( EIRP ): 2.400 - 2.483GHz ( FCC: 26dBm or less, CE: 20dBm or less, SRRC: 20dBm or less, MIC: 20dBm or less ); 5.725 - 5.850GHz ( FCC: 26dBm or less, CE: 14dBm or less, SRRC: 26dBm or less )
GNSS: GPS + GLONASS
Hovering accuracy range: vertical: + / -0.1m ( when vision positioning is active ), + / -0.5m ( with GPS positioning ); horizontal: + / -0.3m ( when vision positioning is active ), + / -1.5m ( with GPS positioning )
Internal storage: 8GB

Sensing System
Sensing System: omnidirectional obstacle sensing
Forward: precision measurement range: 0.5 - 20m, detectable range: 20 - 40m, effective sensing speed: 14m/s or less, FOV: horizontal: 40 degree, vertical: 70 degree
Backward: precision measurement range: 0.5 - 16m, detectable range: 16 - 32m, effective sensing speed: 12m/s or less, FOV: horizontal: 60 degree, vertical: 77 degree
Upward: precision measurement range: 0.1 - 8m
Downward: precision measurement range: 0.5 - 11m, detectable range: 11 - 22m
Sides: precision measurement range: 0.5 - 10m, effective sensing speed: 8m/s or less, FOV: horizontal: 80 degree, vertical: 65 degree
Operating environment: Forward, Backward and Sides: surface with clear pattern and adequate lighting ( more than 15 lux ), Upward: detects diffuse reflective surfaces ( more than 20 percent ) ( walls, trees, people, etc. ), Downward: surface with clear pattern and adequate lighting ( more than 15 lux ),, detects diffuse reflective surfaces ( more than 20 percent ) ( walls, trees, people, etc. )

Charger
Input; 100 - 240V, 50 / 60Hz
Output: Main: 17.6V 3.41A or 17.0V 3.53A, USB 5V 2A
Voltage: 17.6 + / -0.1V
Rated power: 60W

App
Video transmission system: OcuSync 2.0
Name: DJI GO 4
Live view quality: remote controller / DJI goggles / DJI goggles RE: 720P 30fps / 1080P 30fps
Latency ( depending on environmental conditions and mobile device ): 120 - 130ms
Max. live view bitrate: 40Mbps
Required operating system: iOS 9.0 or later, Android 4.4 or later

Gimbal
Mechanical range: tilt: -135 to 45 degree, pan: -100 to 100 degree
Controllable range: tilt: -90 to 30 degree, pan: -75 to 75 degree
Stabilization: 3-axis ( tilt, roll, pan )
Max. control speed ( tilt ): 120 degree / s
Angular vibration range: + / -0.01 ( Mavic 2 Pro ); + / -0.005 degree ( Mavic 2 Zoom )

Remote Controller
Operating frequency: 2.400 - 2.483GHz, 5.725 - 5.850GHz
Max. transmission distance ( unobstructed, free of interference ): 2.400 - 2.483GHz, 5.725 - 5.850GHz ( FCC: 8000m, CE: 5000m, SRRC: 5000m, MIC: 5000m )
Operating temperature range: 0 - 40 Deg.C
Transmission power ( EIRP ): 2.400 - 2.483GHz ( FCC: 26dBm or less, CE: 20dBm or less, SRRC: 20dBm or less, MIC: 20dBm or less ); 5.725 - 5.850GHz ( FCC: 26dBm or less, CE: 14dBm or less, SRRC: 26dBm or less ), 5.725 - 5.850GHz ( FCC: 26dBm or less, CE: 14dBm or less, SRRC: 26dBm or less )
Battery: 3950mAh
Operating current / voltage: 1800mA / 3.83V
Supported mobile device size: max. length: 160mm, max. thickness: 6.5 - 8.5mm
Supported USB port types: lightning, micro USB ( Type-C )

Intelligent Flight Battery
Capacity: 3850mAh
Voltage: 15.4V
Max. charging voltage: 17.6V
Battery type: LiPo 4S
Energy: 59.29Wh
Net weight: 297g
Charging temperature range: 5 to 40 Deg.C
Max. charging power: 80W

Supported SD Cards
Supported SD cards: Micro SD, with capacity up to 128GB and R/W speed up to UHS-I Speed Grade 3
Specification Brand: DJI
Type: Quadcopter
Features: Camera,Radio Control,WiFi APP Control
Functions: Aerial Photography,Around Flight,Auto Landing,Automatic Return,Automatically Following,Camera,One Key Landing,One Key Taking Off,Turn left/right,Up/down,WiFi Connection
Level: Beginner Level

Remote Control: 2.4GHz Wireless Remote Control
Channel: 4-Channels
Radio Mode: Mode 2 (Left-hand Throttle),WiFi APP
Compatible with Additional Gimbal: No

Battery: 15.4V 3850mAh LiPo

Product weight: 0.9050 kg
Package weight: 2.0800 kg
Product size (L x W x H): 21.00 x 9.00 x 9.00 cm / 8.27 x 3.54 x 3.54 inches
Package size (L x W x H): 30.00 x 30.00 x 15.00 cm / 11.81 x 11.81 x 5.91 inches
