Eachine EW30

Eachine EW30
Brand: Eachine
Category: Gadget
  • 1: Frequency: 5.8GHZ
  • 2: Receiver Sensitivity: ≤-93DB
  • 3: Antenna impedance: 50Ω
  • 4: Video format: NTSC/PAL
  • 5: Pupil Distance adjusting: 56-72mm
  • 6: Power input: DC 7.4V-28V

Eachine EW30 - Price

Eachine EW30 - Specs

Product Details

  • Features
    2 Inch TFT LCD 480*360 *2 Display
    5.8Ghz 48CH 60-68mm IPD
    Adjustable FOV 120° FPV Goggles
  • Specification
    Brand: Eachine
    Model: EW30
    Screen: 2 inch TFT LCD 480*360 pix *2 display,300cd/㎡
    Lens: FOV:120°, Magnification: 3.5X, Material: PMMA, Distortion: No, Vitreousness: >93%
    Battery: 3.7v 1000mAh Li-ion
    Consumption: 3.7V/400-600mAh. 1.5W-2.2W
    Frequency: 5.8GHz,48CH
    Ports: 3.5mm AV in, Micro USB(Support DC5V power charge), TF card and up to 32 Gb
    IPD: 60-68mm(Adjustable)
    Working temperature: -10℃-50℃
    Storage temperature: -20℃-90℃
    Weight: 200g
    Dimension: 152mmX92mmX70mm
  • Package content
    1 X Eachine EW30
    1 X Zipper case
    1 X 18650 battery case
    1 X Sponge
    2 X EVA pad
    2 X Eyeglass frames
    2 X Third party module cover
    2 X FPV receiver
    1 X Lens wiping cloth
    1 X User Manual

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

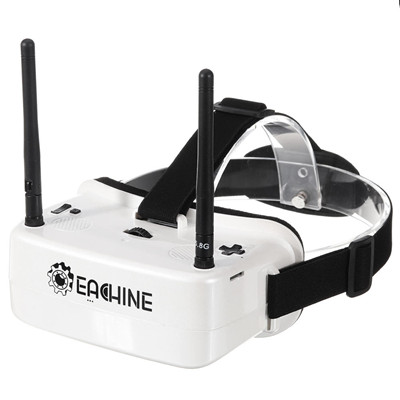

Eachine EW30 2 Inch 120° FPV Goggles For RC Drone

Chinese manufacturer Eachine is expanding its range of light-priced 5.8 GHz immersion masks with a new model, the EW30. This is a significant break with the idea that the biggest expense in an FPV system is the viewing device. Obviously, to get a floor price, Eachine made some sacrifices.

The mask measures 15.2 x 9.2 x 7 cm and weighs 200 grams. It is based on two 2-inch LCD screens with a resolution of 480 x 360 pixels. This is not much compared to its more expensive competitors, and it is probably its main flaw. These screens are placed behind lenses that magnify 3.5x to obtain a 120° FOV. The mask is adjustable to fit the pupil distance, with an adjustable IPD between 60 and 68 mm. A foam isolates the mask from the face.

Inside the mask is a 48-channel 5.8 GHz compatible video receiver. It is based on two antennas – but this does not mean that it is a Diversity model. These two antennas are provided, they are stick models that can be replaced by more efficient ones. It is possible to choose the reception frequency manually or to let the mask do the search on its own. Bonus: A video recorder (DVR) is available on the EW30, it allows you to store flight videos on a microSD memory card.

The mask is powered by an integrated 1S 3.7V 1000 mAh 1S 3.7V battery to be charged with a USB connector. It has a 3.5 mm jack to display a signal from an external receiver. Its price? Eachine’s EW30 will be available for $46.99 at Banggood (without shipping, without taxes), in black or white packaging.
