Eachine Tyro119 HD

Eachine Tyro119 HD

Brand: Eachine
Category: Drones
  • 1: Input Voltage: 3-6S Lipo
  • 2:  Con. Current: 40A
  • 3: Burst Current: 45A (5S)
  • 4: MOS Model: QN3019M6
  • 5: Firmware: BLheli_32

Our Rating

The overall rating is based on review by our experts

7.8
  • Design 8 / 10
  • Features 7 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

Eachine Tyro119 HD 260mm 6 Inch Frame Kit

It is a revisit of the Tyro119, a racer designed to accommodate 6-inch propellers, that Eachine offers with the Tyro119 HD. Why HD? Because this new model is designed to host an FPV Air Unit and a DJI camera. Enough to enjoy a real time digital and HD video return on a super light price device. But on one condition, the same as with all the other devices in the Tyro range: you have to set it up yourself.

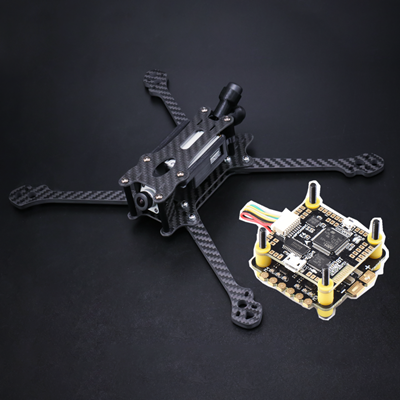

The Tyro119 is based on a carbon structure with a 26 cm diagonal motor-to-motor diagonal, with 5 mm thick arms. It comes with a HifiOnRc F405 Pro flight controller based on an F4 processor and flashed with Betaflight, with several UARTs to connect the DJI module and a 9V power supply (which hopefully remains stable), a TBS Crossfire type radio control if you don’t have the DJI’s one, a GPS… It is associated with an ESC 4 in 1 of 40A BLheli_32 compatible 4S to 6S. In the pack are provided a TPU support for the DJI FPV Air Unit, a TPU support for the DJI antennas, a bag of shock absorbers, a cable between FC and ESC. And?

It’s your job to provide the engines. The models recommended by the manufacturer are the Eachine 2407 to 1800KV, which are capable of holding 6S batteries. You also need a power cable with an XT60 plug, and it is preferable to add a capacitor to the assembly. Finally it is up to you to provide the FPV Air Unit and the DJI camera.

SPECS

Product Details

Features Brand Name: HIFIONRC
 Item Name: 30.5x30.5mm F4 FC & 40A 4in1 ESC Stack
 F405 Pro F4 OSD Flight Controller
 MCU: STM32F405RGT6 168MHz
 Gyroscope: MPU6000
 OSD: Betaflight SPI OSD
 UART: UART 1/2/3/6
 BEC Output: 5V 3A & 9V 3A
 Input Voltage: 3-6S Lipo
 Blackbox: 16MB
 Firmware: Betaflight F405
 LED: 4 Ways independent LED Pad, support WS2812 Programable LED
 Dimension: 36.5x36.5mm
 Mounting Hole: 30.5x30.5mm, M4
 Weight: 6.6g
 - Onboard Voltage Sensor
 - Support SBUS, CRSF, IBUS, Spektrum 1024/2048, XBUS, SumD & SumH Receiver, Built-in inverter
 - Support Support 3.3V Satellite Receiver ; PPM Receiver
Specification Brand Name: Eachine
Model: Tyro119 HD
Wheelbase: 260mm
Material: 3K Carbon Fiber
Arm Plate Thickness: 5mm
Upper Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Center Plate Thickness: 2mm
Side Plate Thickness: 1.5mm
Standoff Height: 35mm
Camera Mount Width: 20mm
Weight: 108g
