Eachine Novice-II

Eachine Novice-II
Brand: Eachine
Category: Drones
  • Feature 1: Nano X F4 pro flight controller
  • Feature 2: Powerful and smoothly
  • Feature 3: Led Strip ready
  • Feature 4: Built-in Buzzer
  • Feature 5: New design 1103 KV8500 motors
  • Feature 6: Camera Angle adjustable

Eachine Novice-II - Price

Eachine Novice-II - Specs

Product Details

  • Features
    Nano X F4 pro flight controller
    Powerful and smoothly
    Led Strip ready
    Built-in Buzzer
    New design 1103 KV8500 motors
    Camera Angle adjustable
    VTX power switchable 25mw~200mw
    Smartaudio ready , change VTX bands, powers, channels via OSD
    Ready to fly
    Compatible both for 1s-2s Lipo/LIHV
  • Specification
    Brand Name: Eachine
    Item Name: Novice-II 1-2S RTF & Fly more
    Wheelbase: 120mm
    Size: 100mm*100mm*40mm
    Weight: 50g(without battery)

    Mode: EX1103
    KV options: KV8500
    Configu-ration:9N12P
    Stator Diamter:11mm
    Stator Length:3mm
    Shaft Diameter: Φ1.5mm
    Motor Dimension(Dia.*Len):Φ13.5mm*16mm
    Weight(g):3.8g

    Capacity:460mAh
    Voltage:3.8v
    Continuous Discharge Rate: 50C
    Instantaneous discharge rate: 100C
    Size: 60mmx18mmx7mm
    Weight: 13.6g
    Connector: PH2.0
  • Package content
    1 x 120mm Frame
    1 x Nano X F4 Flight Controller
    4 x Eachine NC1103 KV8500 Brushless Motor
    2 x HQPROP T65 bi-blade Propeller (4cw+4ccw)
    1 x Caddx EOS2 v2 version 4:3 Camera
    1 x 5.8g 25mw~200mw Switchable Whoop VTX
    2 x 3.8v 460mAh Battery
    1 x 6 In 1 6-way LIPO/LIHV ChargerR
    1 x Eachine WT8 2.4G Radio Transmitter
    1 x Eachine VR009 5.8G 40CH Goggles
    1 x Propeller Disassemble Tool
    1 x Screwdriver

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

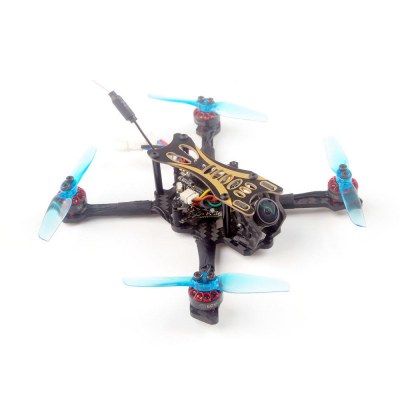

Eachine Novice-II 1-2S 2.5 Inch FPV Racing Drone

This device is offered in a package with everything you need to pilot, i. e. a radio control and an immersion mask. It echoes the Novice-I pack, already proposed by Eachine with a Tinywhoop type nano racer (see here). The Novice-II is also a nano racer, but a version without propeller guards, intended for slightly more engaged flights. It is equipped with 1103 to 8500KV brushless motors for HQProp T65 two-bladed propellers. The structure on which they are mounted is made of carbon, with a diagonal of 12 cm from motor to motor for dimensions of 10 x 10 x 10 x 4 cm and a weight of 50 grams without the battery.

There is a Nano X4 flight controller Nano X X F4 flight, with a current sensor, a FrSky D8 compatible radio receiver, flashed with Betaflight and an active OSD. It is associated with a 4 in 1 ESC of 5A DShot600. The video part is provided by an EOS2 V2 camera from Caddx, 1200TVL, whose angle can be modified, associated with a 5.8 GHz video transmitter of 40 channels capable of transmitting at 25 mW (the maximum authorized in France) or 200 mW SmartAudio compatible for settings from the radio control. A buzzer is integrated in the assembly, to find the device more quickly in case of a crash.

The Novice-II is designed for 1S or 2S batteries. It is delivered with 2 copies of LiHV 1S 3,8V of 460 mAh. So it’s not a power monster, but since it’s small and lightweight, it probably allows flights fast enough to be a racer-school! It is probably a little more reactive with 2S batteries. For this purpose, the device is equipped with two PST PH2.0 connectors.

The Novice-II is available in RTF version for $155.00 at Banggood (without the port, without taxes), ready to fly, with 2 batteries, a 6 battery charger, the Eachine WT8 FrSky compatible remote control in mode 2 (gas on the left), and an immersion mask with a 5.8 GHz Eachine VR009 receiver.
