Eachine LAL5

Eachine LAL5
Brand: Eachine
Category: Drones
  • 1: Customized LAL-F405 Bluetooth Flight Controller
  • 2: Caddx Tarsier V2 4K HD Camera
  • 3: Powerful and smoothly
  • 4: ND8 filter, Extend exposures
  • 5: VTX power switchable 25mw~800mw
  • 6: Compatible both for 4s-6s Lipo/ LIHV

Eachine LAL5 - Specs

Product Details

  • Features
    Customized LAL-F405 Bluetooth Flight Controller
    Caddx Tarsier V2 4K HD Camera
    Powerful and smoothly
    ND8 filter, Extend exposures and capture a range of creative effects
    VTX power switchable 25mw~800mw
    Compatible both for 4s-6s Lipo/LIHV
  • Specification
    Brand Name: Eachine

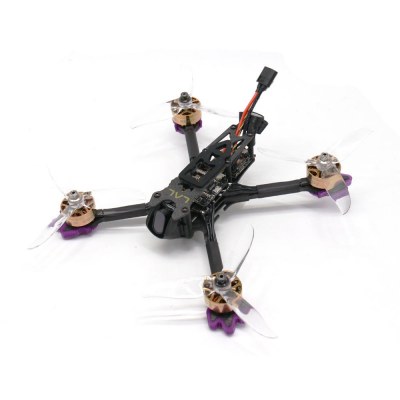

    Item Name: LAL5 225mm 5 Inch 4K 6S FPV Racing Drone
    Wheelbase: 225mm
    Weight: 411.8g (without battery)
    Package size: 270x270x160mm
    Package weight: 1034.7g

    Wheelbase: 225mm
    Arm thickness: 5mm
    X plate: 2mm
    Bottom plate: 2mm
    Upper plate: 2mm

    Mode: 2507
    KV: 1850
    Idle current (IO/10V): 1.42A
    No.of Cells(Lipo): 3-6S
    Peak current: 45A
    Max. power: 1080W
    Max. thrust: 1750g(6s/5“)
    Internal Resistance: 0.0398Ω
    Stator diameter: 25mm
    Stator thickness: 7mm
    Height: 19.5mm
    Width: φ31mm
    Shaft diameter: φ5mm
    Motor mount hole size: M3
    Recommend propeller: 5-7 Inch
    Weight: 43g

    Cadax TARSIER 4K V2
    FOV: KF2.8.FOV150M16/9), FPVFOV165(4/3>
    Lens: DUAL Lens F2.8/12Mega
    CPU: Dual core dual system
    Sensor: 12M sensor,1/1.8INCHM/2.9INCH
    Main Resolution:
    4K/30fps 16:9
    2.7K/60fps 4:3
    1440P 60fps/30fps 4:3
    1080p/90fps,60fps,30fps 16:9
    720P120fps 16:9
    CAMERA Bitrate : 50kbps/66kbps
    Video System: NTSC/PAL
    ANTI-SHAKE:Hardware anti-shake
    Scene Mode: Auto/Personage/Scenery/Defog
    Dimension CAMERA: 19><20mm / DVR :29x29mm(HOLE:20x20mm)
    Weight : 18g

    Model: Eachine TX805
    Item name: FPV Transmitter VTX
    Frequency: 5.8G
    Channels: 40CH
    Input voltage: 7V~24V
    5V camera supply: 120mA(MAX)----25mW@12V
    5V camera supply: 200mA(MAX)----200mW@12V
    5V camera supply: 300mA(MAX)----600mW@12V
    5V camera supply: 350mA(MAX)----800mW@12V
    Extra features: Smart audio
    Power supply: 5V output for Camera
    Output power: 25mW/200mW/600mW/800mW switchable
    Antenna connector: MMCX
    Cable connector: Solder pads
    Dimensions: 36mm*22mm*5mm,30.5 stackable hole
    Weight: 8g(excluding antenna)
  • Package content
    1 x 225mm Stretch X Frame
    1 x LAL-F405 Bluetooth Flight Controller
    4 x 2507 1850KV Brushless Motor
    1 x 4 IN 4 50A 3-6S Blheli_32 Brushless ESC
    1 x Caddx Tarsier V2 Cam
    1 x Eachine TX805 25~800mW VTX
    8 x 5046 Propeller (4xCW, 4xCCW)

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

Eachine LAL5 225mm 5 Inch 4K 6S FPV Racing Drone

This 5-inch Eachine racer stands out for several reasons. The first is that it is equipped with the V2 of Caddx’s 4K Tarsier camera. The second is that it is designed for 6S batteries! Enough to ensure fast flights and high definition videos!

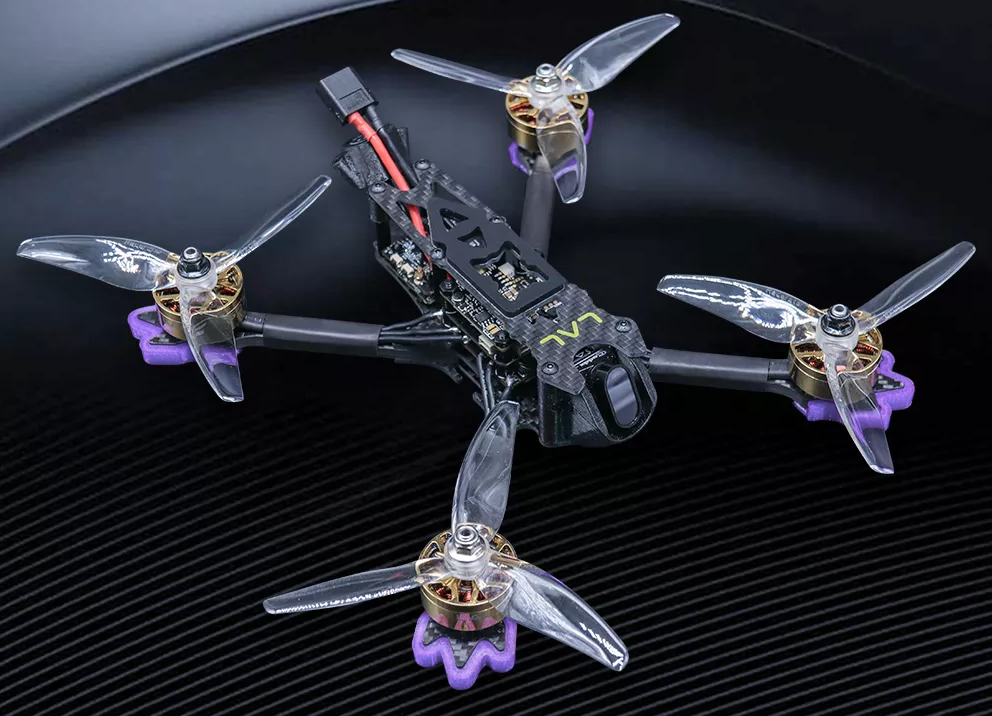

The LAL5 is based on a carbon structure of 22.5 cm diagonal from motor to motor, with dimensions of 27 x 27 x 16 cm and a weight, equipped but without battery and radio receiver, of 411.8 grams. The arms are 5 mm thick and easy to remove in case of breakage, the other carbon parts are 2 mm thick. The motors are brushless 2507 to 1850KV equipped with transparent Racerstar 5046 three-bladed propellers. To control these engines and support 6S batteries, the device is equipped with a 4 in 1 ESC of 50A! It is associated with a LAL-F405 flight controller.

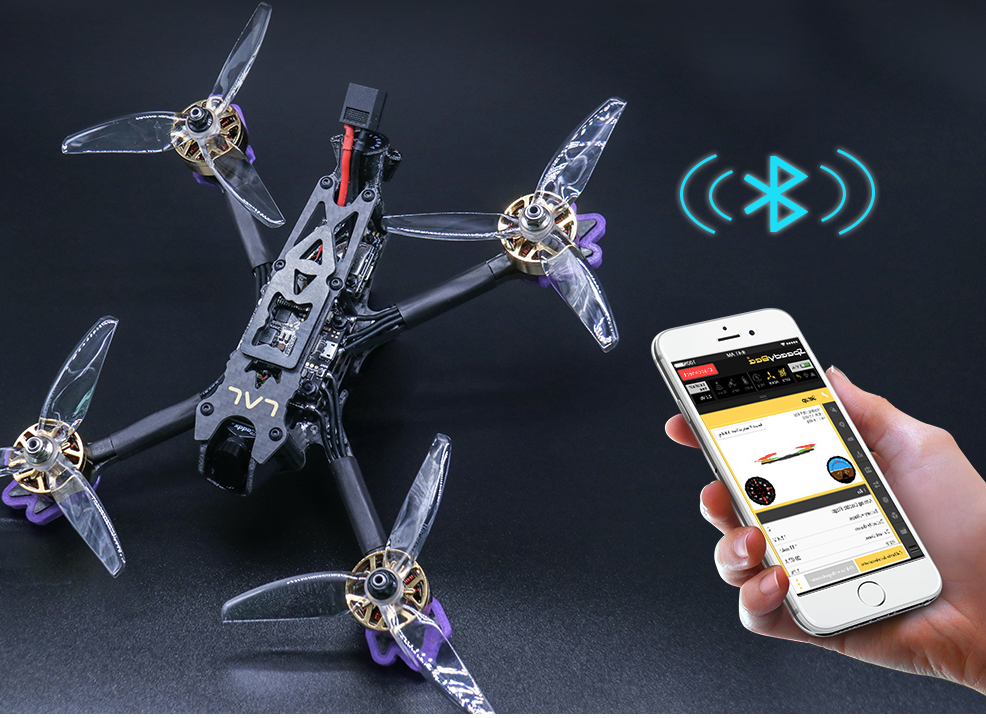

This flight controller designed by Eachine is based on an F4 processor flashed with Betaflight, in MatekF405 firmware. In addition to the usual sensors, Eachine has added a Bosch altimeter barometer and a Bluetooth module to make the settings with a smartphone, without the need for a computer. It also offers an active OSD, the VBat, it can be equipped with a buzzer and a GPS.

Caddx’s Tarsier V2 camera, which produces analog video feedback in real time and records in HD, is associated with a 5.8 GHz Eachine TX805 transmitter compatible with 40 channels, capable of transmitting at 25 mW (the maximum allowed in France), but also 200 mW, 600 mW or 800 mW to go much further (where allowed). It is SmartAudio compatible for settings from the remote control with the help of the active OSD. The polarized antenna is fixed by a TPU part and connected to the transmitter via an MMCX connector. Note that the Tarsier V2 is equipped with a removable ND8 filter.

This 6S and HD racer is quite attractive, delivered assembled but without a radio receiver – it’s up to you to add your own. Its endowment is interesting, especially since it is sold at a low price: the Banggood shop offers it at $229.00.
