Eachine EV800DM

Eachine EV800DM
Brand: Eachine
Category: Gadget
  • Feature 1: Super HD DVR
  • Feature 2: Diversity RaceBand 40ch Auto-Searching
  • Feature 3: Two system
  • Feature 4: Work friendly with player-OSD
  • Feature 5: Focal length adjustable design
  • Feature 6: Room for eyeglasses

Eachine EV800DM - Price

Eachine EV800DM - Specs

Product Details

  • Features
    Built-in with super HD DVR up to 720*576px resolution
    Diversity RaceBand 40ch Auto-Searching
    Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 super speed card to ensure the full frame recor ding)
    Work friendly with player-OSD, no block on the important flying OSD information;
    Focal length adjustable design;Room for eyeglasses
    HD high brightness 3 inch LCD specially tuned for FPV racing;
    Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
    Advanced auto-searching function and the working frequency show on screen;
    Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time;
    Wide range re-charge voltage 5-180V;
    Accept 2S or 3S batteries as back-up power source, to prolong the working time;
    Nice ergonomic design and fit different faces;
    Super-wide visible angle up to 82 degree;
    92% transparent lens adopted, no distort, no blur on the edge of screen;
    Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
    3 Inch 900*600px HD high brightness LCD
  • Specification
    Brand Name : EACHINE
    Item Name : EV800DM

    Dimension: 150*170*80mm
    Weight: 320g without antenna
    Belt : three-way adjustable belt

    Build in DVR
    recor d up to 720*576px full frame rate video, no frame lost (C10 card required)
    Re play in MENU
    Require C10 card to recor d full frame rate

    Screen size: 3.0 inch
    Screen resolution: 900*600(No blur after enlarge by the lens)
    Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
    Ratio : 4:3
    View Angle: 140/120 degree(Horizontal/Vertical)

    3x boost of the video to acquire intense feel-in-there video;
    92% transparent rate distort if light;

    20mm focal length adjustable;
    Multi stop points design for vertical individual user adjust;
    For more users with different eyesight

    Fit for wear with glasses;
    Glasses Fit Size; 140mm*40mm;
    Focal length need to be reset when wear glasses

    Built-in 3.8V/2000mAh battery;
    Each battery circle offer around 2.2hr working time;
    5-18V wide range recharging voltage range, typical recharging with 5V/2A
    Charger : 5V, 2A, DC 2.5mm
    2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.
  • Package content
    1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
    1 x Clover Antenna
    1 x Panel Antenna
    1 x Battery Charger
    1 x USB Power Charging Cable
    1 x AV In/Out cable
    1 x User Manual

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

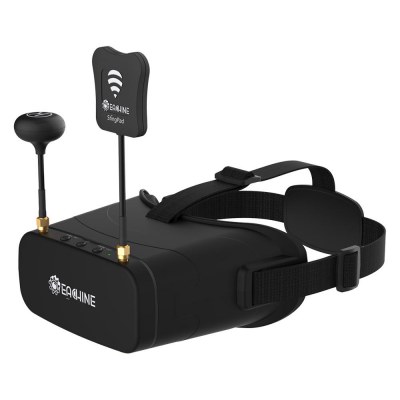

Eachine EV800DM Varifocal 5.8G 40CH Diversity FPV Goggles

If the immersion glasses seem too expensive, choose a mask. The newcomer to Eachine is the EV800DM. It measures 15 x 17 x 8 cm and weighs 320 grams without antennas, and is based on a 3-inch screen with a resolution of 900 x 600 pixels in the format 4:3. The screen is enlarged through a 3x lens for an FOV of 82° without distortion or blurring in the corners.

The EV800DM has an adjustable focal length of 20 mm, with the possibility of wearing corrective eyeglasses. The integrated battery is a 2000 mAh LiHV 3.8V 3.8V that provides more than 2 hours of flight time. It is charged with a supplied USB cable, and can be powered by a 2S or 3S battery. Image reception is provided by two RX5808 Pro Diversity type modules, with a sensitivity of -90 dBm, with a directional patch antenna and a polarized mushroom antenna. A frequency scanner allows you to quickly find the one you are transmitting on among the 40 supported.

Eachine has added a 720 x 576 pixel video recorder, ensuring that it doesn’t miss a frame even in case of poor reception – unlike FatShark DVRs for example. Why two Diversity modules? For, according to Eachine, one to take care of the display and the other of the recording, independently but by sharing the antennas. The mask has an AV/In-Out connector to provide video input and output. Its price? It will be offered at $95.99 at Banggood.
