Eachine VR005

Eachine VR005
Brand: Eachine
Category: Gadget
  • 1: Small size and light weight
  • 2: Low power consumption
  • 3: 5.8GHZ 48CH auto-search receiver
  • 4: 2.7 inch 960*240px resolution HD display
  • 5: 1S 3.7V 1000mAh LiPo battery
  • 6: 300cd/m² of high brightness for outdoor use

Eachine VR005 - Specs

Product Details

  • Features
    - Small size and light weight.
    - Low power consumption, working current 300-350MA.
    - Built-in high sensitivity 5.8GHZ 48CH auto-search receiver,especially suitable for RaceBand.
    - Built-in with 2.7 inch 960*240px resolution HD display.
    - Built-in 1S 3.7V 1000mAh LiPo battery.
    - Stable picture quality,not dizzy,zero delay.
    - Super-wide visible angle up to 120 degree.
    - 300cd/m² of high brightness for outdoor use.
    - 98% transparent lens adopted, no distortion.
    - Nice ergonomic design and fit different faces.
    - Humanized design, easy to wear,soft and comfortable.
  • Specification
    Brand Name: Eachine
    Item Name: VR005
    Color: Black
    Size: 150mmX120mmX60mm
    Weight: 145g
    Package Weight: 267g

    Screen Size: 2.7 inch
    Resolution: 960*240 pix
    Brightness: 300cd/m² of high brightness, for outdoor use
    FOV: 0/120 degrees (horizontal / vertical)
    Magnification: 3.5x
    Distortion: No distortion
    Material: PMMA
    Transparency: > 98%

    Frequency : 5.8G 5333Mhz-5945Mhz
    Channel: 48CH
    Working Temperature: -10℃ ~ 60℃
    Storage Temperature: -20℃ ~ 90℃
    Video Format: NTSC/PAL
    Power Input: 3.7V
    Battery: 1S 3.7V 1000mAh
    Charging: USB Cable
  • Package content
    1x Eachine VR005

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

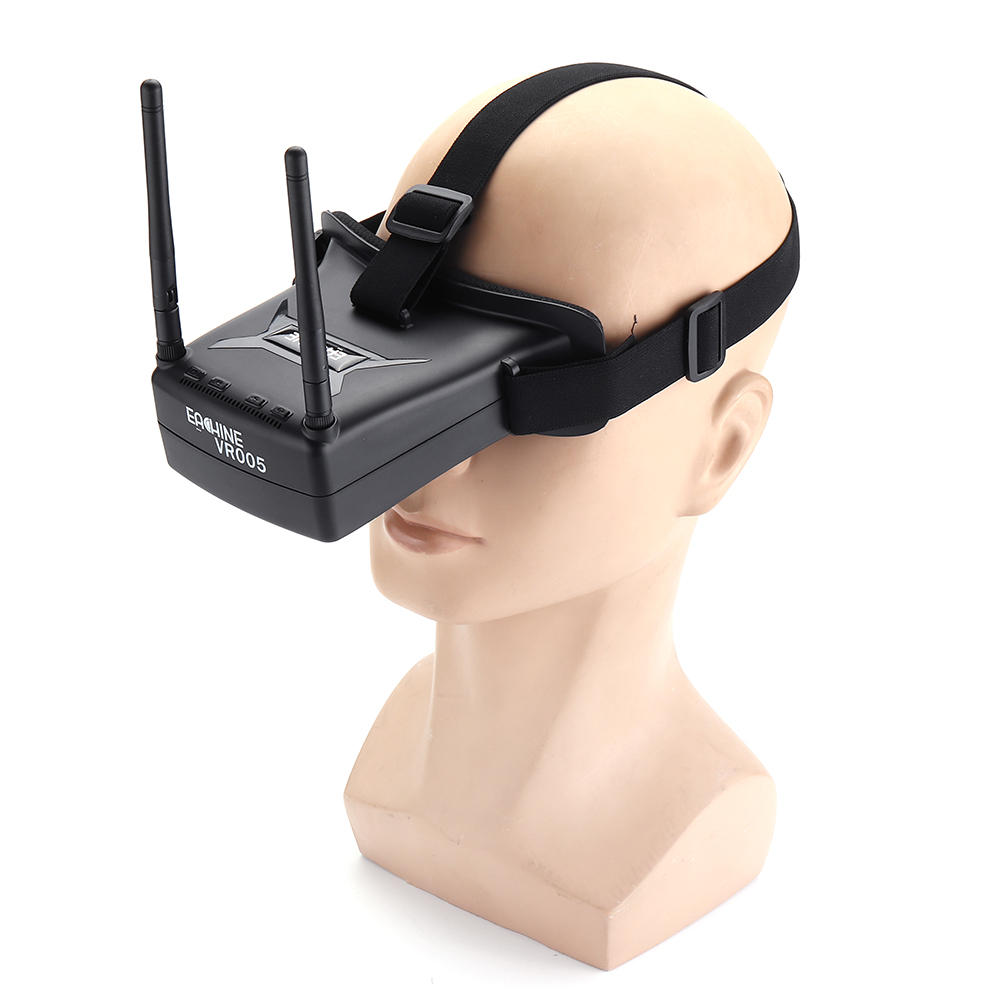

Eachine VR005 2.7 Inch 5.8G 48CH FPV Goggles

“Flying in FPV is great, but the devices to receive and view images in real time cost a kidney. That was before. “Immersion masks (as opposed to glasses) are lightweight and have an inversely proportional weight. That was before… Because Eachine announced the availability of the VR005 immersion mask…

It weighs only 145 grams, for dimensions of 15 x 12 x 6 cm. The price? The VR005 only costs $36.99 at Banggood! It is based on a 2.7-inch screen with a resolution of 960 x 240 pixels behind a 3.5x magnifying lens with a FOV of 120. This is not great, but the price makes it possible to forget the low definition of the images.

The floor price is all the more appreciable as the mask comes with an integrated 5.8 GHz receiver module, compatible with 48 channels including Raceband frequencies. It is a model with two stick antennas delivered (but probably not Diversity). It has an automatic frequency search function. The battery, also delivered, is a 1000 mAh Lipo 1S with USB charging. Eachine’s VR005 is therefore ready to use, to start in FPV at a light price, or to have a secondary viewing device to equip “passengers”…
