EACHLINK H6 Max

EACHLINK H6 Max
Brand: EACHLINK
Category: TV Box
  • Feature 1: Supports HDR 6Kimage
  • Feature 2: 4GB RAM + 64GB ROM
  • Feature 3: Android 9.0 operation system
  • Feature 4: Allwinner H6 CPU, quad core, Cortex A53
  • Feature 5: Mali T720 GPU
  • Feature 6: 2.4G +5.8G WiFi

EACHLINK H6 Max - Price

  • GearBest.com EACHLINK H6 Max Android 9.0 TV Box $49.99
    View Offer

EACHLINK H6 Max - Specs

Product Details

  • Features
    Supports HDR 6Kimage
    4GB RAM + 64GB ROMlarge memory and expandable storage
    Android 9.0 operation system
    Allwinner H6 CPU, quad core, Cortex A53
    Mali T720 GPU
    2.4G +5.8G WiFi
    Supports H.265 decoding
  • Specification
    Brand: EACHLINK
    Model: H6 MAX
    Type: TV Box
    GPU: Mali-T720
    System: Android 9.0
    CPU: Allwinner H6
    Core: Quad Core
    RAM: 6GB
    RAM Type: DDR3
    ROM: 64GB
    Max. Extended Capacity: 64G

    Decoder Format: H.264,H.265
    Video format: 4K,ASF,AVI,DAT,FLV,ISO,MKV,MOV,MPEG,MPG,TS,VOB,WMV
    Audio format: AAC,APE,DDP,FLAC,HD,MP3,OGG,WAV,WMA
    Photo Format: BMP,GIF,JPEG,PNG,TIFF
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: No
    Bluetooth: Bluetooth 4.1
    Power Supply: Charge Adapter
    Interface: AV,DC Power Port,HDMI,LAN,SPDIF,TF card,USB2.0,USB3.0
    Language: Multi-language
    DVD Support: No
    HDMI Version: 2.0
    Other Functions: Others
    HDMI Function: CEC,HDCP
    Power Consumption.: 6W
    RJ45 Port Speed: 100Mbps

    System Bit: 64Bit
    WiFi Chip: 8723

    Power Type: External Power Adapter Mode
    Remote Controller Battery: 2 x AAA Battery ( not included )

    Product weight: 0.1200 kg
    Product size: 9.60 x 9.60 x 1.90 cm
    Package weight: 0.3800 kg
    Package size: 17.50 x 16.50 x 4.50 cm

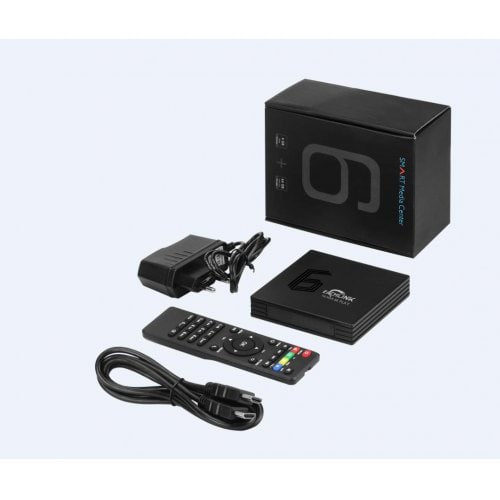

  • Package content
    1 x EACHLINK H6 Max TV Box
    1 x Remote Control
    1 x HDMI Cable
    1 x Power Adapter
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

EACHLINK H6 Max Android 9.0 TV Box

The EACHLINK H6 MAX is the new Android TV box based on the Soc Allwinner H6 platform, which is specifically designed to handle high resolution multimedia content of 4K/60fps and even 6K/30fps.

EACHLINK H6 Max

But it so happens that there are only a few models of TV boxes with this processor on the market, the most famous of which is its little brother EACHLINK H6 MINI, the main share of this segment is occupied by SoC from Amlogic, Rockchip. Although Allwinner H6 is also not bad and is a fairly powerful quad-core processor with the architecture of Cortex A53, with a maximum frequency of 1.8 GHz, and work with such heavy video formats is achieved with the help of the GPU Mali-T720MP2 and Allwinner Phoenix 3.0 VE accelerator. The set-top box also includes 3GB of DDR3 RAM, 32GB of flash memory, 2.4GHz WiFi, Bluetooth 4.1 and Ethernet up to 100M. By the way, on the shop’s website and even in some reviews, the type of RAM is specified as DDR4, although in reality it is DDR3.

EACHLINK H6 Max

Past the powerful platform, the EACHLINK H6 MAX is remarkable for its good communication capabilities. There is a wide range of external connectors: USB 2.0 and USB 3.0 ports, digital output SPDIF (3.5 mm) for audio output to receivers and analog AV output for connecting to old TVs, HDMI 2.0a and LAN port, Micro USB power port and even an external infrared receiver socket for the case of hidden placement of the TV box behind the TV.

EACHLINK H6 Max

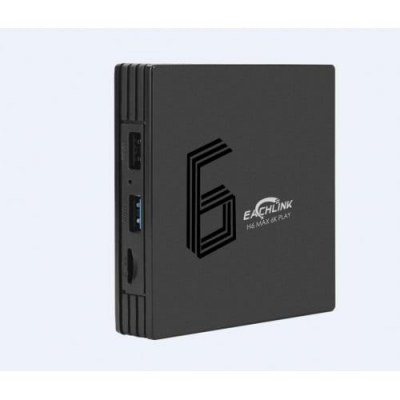

The housing of the EACHLINK H6 MAX TV set-top box is made of thin plastic and has a square shape. The size of the set-top box is 9.60 x 9.60 x 1.90 cm. The appearance is very attractive due to the beautiful textured surface on the top cover.

After a short loading time, we get to the desktop of the lounge with labels in the form of large tiles. The interface with the clock and weather is beautiful and fully optimized for the control panel. All shortcuts, except the bottom row, fixed, to access Netflix, Youtube, Google play, media player, music player, settings menu and applications. The bottom row contains shortcuts to the latest apps you’re running. The top notification bar and bottom navigation bar are missing. The interface image is displayed in 1080p resolution and works very quickly, without delays.

The set-top box initially has a minimum set of applications: photo gallery, calendar, calculator, audio player, clock, browser, mail client, file manager, MX Player, Miracast, Modbro and FilmOn Live TV media player for viewing online channels (foreign), Netflix, YouTube, Play Market and RocketClean memory cleaner.

EACHLINK H6 Max

Summary

EACHLINK H6 MAX is a low-cost Android TV set-top box that runs on a specific processor, specially designed to work with high-quality video content. During its testing, no significant drawbacks were found, except for an emerging error with Play Store (you need to update Google Services) and problems with the stated playback of some 6K video. Perhaps the manufacturer will be able to fix these problems in the next software update, although without it, the console is quite worthy of attention. In general, it works smoothly and clearly, without overheating and hangs. And taking into account its present value – $55.99 with free delivery – it turns out to be an excellent option for a budget home multimedia system.
