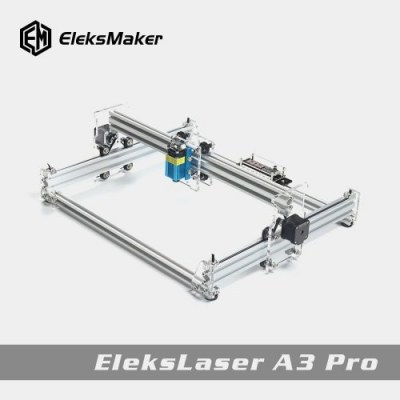

EleksMaker EleksLaser A3 Pro

EleksMaker EleksLaser A3 Pro
Brand: Other
Category: 3D Printer
  • 1: Wavelength:445nm
  • 2: Power Input:AC100-240V
  • 3: System Support:Win XP/7/8/10
  • 4: Working Voltage:DC 12V
  • 5: Laser Power:2.5W / 1.6W
  • 6: Engraving Accuracy:0.01mm

EleksMaker EleksLaser A3 Pro - Video

EleksMaker EleksLaser A3 Pro - Price

EleksMaker EleksLaser A3 Pro - Specs

Product Details

  • Features
    1. 30X38 cm ultra large engraving area,gantry shape design, no engraving height limitation.
    2. Three stepper motor drive providing faster moving speed.
    3. Violet laser module with heat sink, high laser engraving power and long-term available.
    4. It can print any pictures easily.
  • Specification
    Model:EleksLaser-A3 pro
    Control Board:EleksMana SE
    Communication Port:MircoUSB
    Laser Quick Replace:Support
    Stepper Motor:42H34S-1304A
    Power Input:AC100-240V
    System Support:Win XP/7/8/10
    Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
    Supported Formats:jpg, bmp, svg, G-code
    Material:Stainless Steel and Acrylic
    Working Voltage:DC 12V
    Working Current:DC 4-5A
    Laser Power:2.5W / 1.6W
    Control Software System:EleksCam, T2-Laser, GrblController, LiteFire, Laser GRBL, etc.
    Engraving Accuracy:0.01mm
    Engraving Area:30x40cm / 11.81 x 15.75inch (maximum)
    Engraved object height limitation:No Limitation
    Packaging Size:58x40x14cm
    Assembled Product Size:60x46x18cm
    Package Weight:4.90kg
    Can Engrave:Wood, Plastic, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
    Can not engrave:Metal, Stone, Ceramics, Glass, Reflective or Transparent Material
    Certification:CE, FCC, FDA(Please contact us if you need them)
    Function:ideal for amateur laser engraving usage low-light positioning and freedom positioning functions.
  • Package content
    1* EleksMaker EleksLaser A3 Pro

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

EleksMaker EleksLaser A3 Pro 2500mw Laser Engraving Machine CNC Laser Printer DIY

I have been wanting a laser engraver for quite some time now. The only thing stopping me was the Health Canada rules. I wasn’t sure what they were and I didn’t want to spend the money just to have it turned away at the border. When it arrived I wasn’t even expecting it. I was very surprised and eager to try it out. However, I had the Tevo Tornado to build and review, so I put this laser engraving review on the back burner for a few days.

The A3 Pro laser engraver is a Diode Laser, aka semiconductor laser. A diode laser is the most common laser manufactured. It is used in many devices such as laser printers, CD/DVD/Blu-ray players, barcode readers, etc. The other common laser is a gas laser which is used to cut hard materials. Diode lasers are used more for engraving which is why the A3 Pro uses a 2.5W laser. It has a nice engraving area of 37cm x 38cm (14.5 in x 14.9 in). It uses Extruded Aluminum and stepper motors similar to 3D printers and other CNC machines, which are also on my list to build and review. While fun and exciting, lasers are dangerous and can hurt you in a flash. They can also cause irreparable damage to your eyes. So, it is imperative to use caution with these.

This laser engraver uses a micro arduino on a control bar with two stepper driver boards. One for X and the other is for Y. The board also has a switch for power and a micro USB port to connect to the PC. The laser module has a soft beam switch that you use to focus the laser. If you leave the focus switch on when you start the engraving in the software then it will not burn. You also need to leave the power off when you plug the USB into the PC or open the software application. The reason is because the laser fires for 2-3 seconds. If you have good materiel under the laser then it will be ruined. In fact, it’s good practice to keep a piece of scrap wood or something there until you are ready to start. Always wear your safety glasses and keep it unplugged while not in use. Also, it’s important not to leave it unattended when in use.
