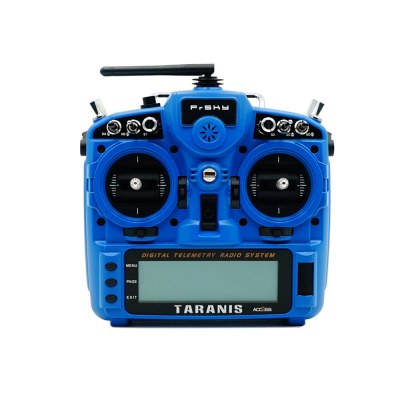

FrSky Taranis X9D Plus 2019

FrSky Taranis X9D Plus 2019

Brand: Other
Category: Drones
  • 1: Classic Taranis form factor design
  • 2: Program navigation button
  • 3: High-speed module digital interface
  • 4: Easy launch momentary button
  • 5: Installed with ACCESS protocol

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

FrSky Taranis X9D Plus 2019 2.4G 24CH ACCESS ACCST D16 Transmitter Supports Spectrum Analyzer Functionfor for RC Drone

The Taranis X9D has a new look! This best-seller who made a hit among FPV Racing drivers with his OpenTX firmware is back. There are very few changes on the outside, so much so that they can easily be confused.

The little detail that makes the difference? Instead of the 3 buttons on the right of the 212 x 64 pixel monochrome widescreen display, there is a wheel. On the top left side is a temporary switch. At the rear, the hatch for an outdoor module is small (not directly compatible with TBS Crossfire modules). That’s about it for the exterior appearance.

This is where you can find the most news. For example, the adoption of FrSky’s new Access protocol, which allows 24 channels with less latency, or a spectrum analyzer. There is the Taranis X9D Plus 2019 version, and a Taranis X9D Plus SE version that offers Hall effect joysticks, more refined switches and the PARA wireless function that allows training flights. Power is supplied by a 2S battery, which can apparently be charged via a microUSB socket. The price? The Taranis X9D Plus 2019 will be offered at $182.00 at Banggood. The X9D Plus SE 2019 version is available for $249.99, still at Banggood Store.


Product Details

Features Classic Taranis form factor design
Program navigation button
High-speed module digital interface
Easy launch momentary button
Installed with ACCESS protocol
Supports spectrum analyzer function
Accurate SWR indicator
G9D potentiometer gimbal
Haptic vibration alerts and voice speech outputs
Supports wired training function
Specification Brand: FrSky
Item name: X9D Plus Transmitter
Dimension: 200*194*110mm (L*W*H)
Weight: 670g (without battery)
Operating system: OpenTX
Number of channels: 24 channels
Internal RF module: ISRM-S-X9
Operating voltage range: 6.5 - 8.4V
Operating current: 130mA@8.2V
Operating Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉ )
Backlit LCD resolution: 212*64
Smart Port, Micro SD card slot and DSC Port
Micro USB interface: supports 2S Li-battery balancing charge
Model memories: 60 models (expandable by Micro SD card)
Compatibility: ACCST D16 and ACCESS receivers
Color: Ash White/Sky Blue/Silver
