Frsky Xlite PRO

Frsky Xlite PRO

Brand: Other
Category: Drones
  • 1: Operating voltage range: 6.0 ~ 8.4V
  • 2: Operating current: 190mA@7.4V
  • 3: Backlit LCD resolution: 128 x 64
  • 4: Micro USB interface: supports 2S Li-battery balancing charge
  • 5: Number of channels: 24 channels

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

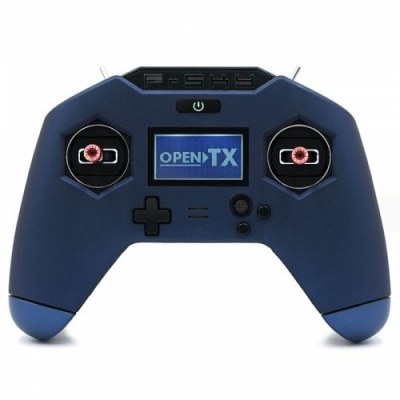

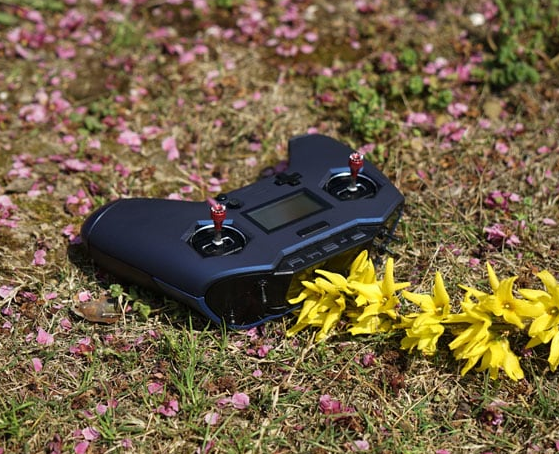

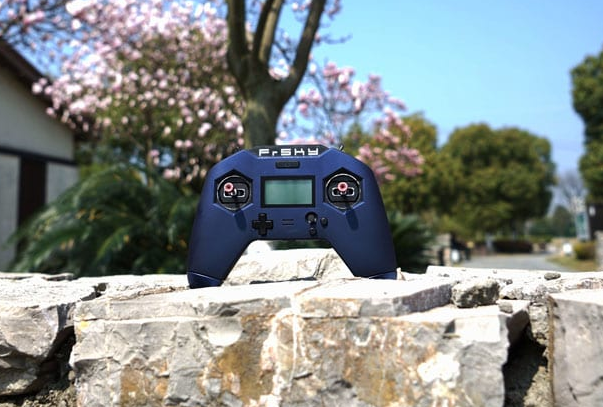

Frsky Xlite PRO Upgraded Compact Transmitters Taranis for FPV Racing Drone

FrSky has listened to the feedback from its users. The Taranis FrSky X-Lite (which remains my favorite radio control today) is available in improved versions. These are the X-Lite S and X-Lite Pro.

The new XLite Pro features a more powerful radio transmitter (optional on the S version). This reduces order transmission latency while improving range. Both models can be recharged by micro USB and have 2 temporary buttons (momentary), 2 large gaps of the first version! They also have a 6-axis motion sensor (most certainly an accelerometer) which also makes it possible to send commands to the drone or to orient a camera. They also make it possible to do native schooling, with or without wires.

The X-Lite Pro is equipped with 2 M12 gimballs with an all-metal hall effect, machined at the CNC. It also provides an accurate analysis of the radio environment using a SWR Meter and a Power meter. This allows you to take advantage of the spectrum analyzer available in OpenTx.

While prices are already known, $149.99 for the S version and $227.79 for the Pro version, no release date has yet been announced. I find the price of the Pro a little high. On the other hand, the S version is relatively well positioned on this subject and offers the most interesting upgrades. In my opinion, this is perfect for new users. In any case, personally, I will not replace my X-Lire first of the name. Especially as we approach the TBS Tango 2 (really?) !


Product Details

Features Ergonomic and compact design
MC12 Lite all-metal CNC digital hall sensor gimbal
Upgraded RF module with installed ACCESS protocol
More sensitive and lower latency (down to 12ms)
High-speed digital interface of internal and external modules (Baud rate: 450K)
Longer range with 40% enhanced performance
Accurate SWR indicator
Supports power meter function
Supports spectrum analyzer function
Wireless function
Higher-speed training system with a lower latency
Compatible with FrSky Free Link App
Supports wired training function
High-efficiency quick-charge system
Supports 2S Li-Battery balancing charge
Supports motion sensing control
Integrated with 6-axis sensor unit
Haptic vibration alerts and voice speech outputs
Specification Number of channels: 24 channels
Operating voltage range: 6.0 ~ 8.4V
Operating current: 190mA@7.4V
Operating Temperature: -20Deg.C ~ 60Deg.C (-4Deg.F ~ 140Deg.F)
Backlit LCD resolution: 128 x 64
Model memories: 60 models (expandable by micro TF card)
Micro USB interface: supports 2S Li-battery balancing charge

Product weight: 0.3760 kg
Product size: 18.00 x 13.00 x 7.00 cm
Package weight: 0.5600 kg
Package size: 26.00 x 18.00 x 11.00 cm
