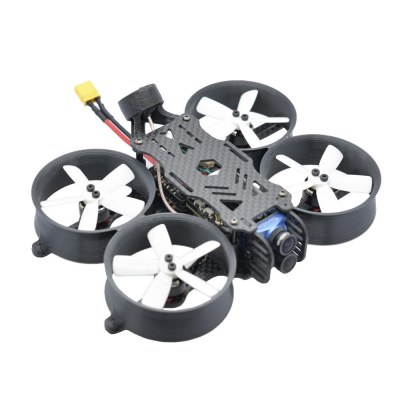

FullSpeed 4K TurboWhoop

FullSpeed 4K TurboWhoop
Brand: Other
Category: Drones
  • Feature 1: Motor: 1104 5500kv
  • Feature 2: Propeller: 1935 5-blade propeller
  • Feature 3: Camera: Caddx.us Tarsier 4K 1200TVL Dual Lens
  • Feature 4: Flight controller: FSD428 F411 Flight controller built-in OSD
  • Feature 5: Thickness of side plate: 1.5mm
  • Feature 6: Thickness of bottom plate: 2mm

FullSpeed 4K TurboWhoop - Price

FullSpeed 4K TurboWhoop - Specs

Product Details

  • Features
    FullSpeed FSD428 F411 Flight controller
    Size: 27.5mm * 27.5mm * 5mm
    Mounting hole: 20mm * 20mm
    MCU: STM32 F411

    Firmware: FULLSPEEDF411 Betaflight
    BEC: 5V/3A
    Input Voltage: 2-4S
    Built-in Betaflight OSD

    FullSpeed FSD482 28A BLHELI_S 4in1 ESC
    Size: 27mm * 27mm * 5mm
    Mounting hole: 20mm * 20mm
    Firmware: BLHELI_S
    Input voltage: 2-4S
    Continuous current: 28A
    BEC Ouput: NO

    FullSpeed FSD TX600 25mW-600mW VTX FPV Transmitter
    Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
    Control mode:BFOSD control(support IRC Tramp)/button
    Video system: NTSC/PAL
    Antenna: IPEX
    BAT: 5V Recommended
    Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
    (TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
    if you need to unlock the frequency.)
    Size: 26*26mm(L*W),Hole:20*20mm
    Weight: 2.3g
  • Specification
    Brand Name: FullSpeed
    Item Name: 4K TurboWhoopFrame Wheelbase: 100mm
    Thickness of bottom plate: 2mm
    Thickness of side plate: 1.5mm
    Weight:110g(without battery)
    Flight controller: FSD428 F411 Flight controller built-in OSD
    ESC: FSD428 28A ESC BLHELI_S 2-4S 4in1 ESC Dshot600
    Motor: 1104 5500kv
    Propeller: 1935 5-blade propeller
    Camera: Caddx.us Tarsier 4K 1200TVL Dual Lens
    VTX: FSD TX600 Pit/25/100/200/400/600 switchable VTX(support IRC Tramp)
  • Package content
    1 x 4K TurboWhoop frame kit
    1 x FSD428 2-4S 28A Flight tower
    4 x 1104-5500KV brushless motor
    2 x 1935 5-blade propeller(CW)
    2 x 1935 5-blade propeller(CCW)
    1 x Caddx.us Tarsier 4K 1200TVL Dual Lens
    1 x FSD TX600 25mW-600mW VTX FPV Transmitter

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

FullSpeed 4K TurboWhoop FSD428 F411 100mm 1200TVL 4K PNP BNF FPV Racing RC Drone

And a new Cinewhoop based on the Caddx Tarsier camera (see the test here) to offer 4K videos! The 4K TurboWhoop is a Tinywhoop type brushless device with larger than usual engine fairings, with a 10 cm motor motor diagonal. The propellers are 1.9-inch 5-blade 1935 models. They are powered by 1104 to 5500KV brushless motors and a 4 in 1 ESC of… 28A, BLheli_S. The flight controller is an FSD428 based on an F4 processor flashed under Betaflight, with an active OSD.

It is provided by Caddx’s Tarsier camera, which shoots in 4K at 30 frames per second, 2.7K at 60 frames per second and 1080p at 90 frames per second. It also sends an analog video stream to a 5.8 GHz TX600 video transmitter, which is compatible with 48 channels and transmits at 0 mW (pitmode), 25 mW (the maximum allowed in France), and… 600 mW to go further or penetrate thicker obstacles indoors. It is IRC Tramp compatible to make settings via remote control and OSD.

The FullSpeed 4K TurboWhoop is available in a version without a radio receiver, or with a Flysky, FrSky XM+, DSM2 / DSMX, or Crossfire Nano RX receiver to go further. To power it? It is possible to choose a 3S battery, but given the low KV and strong ESC, this 4K TurboWhoop probably holds the 4S batteries very well…
