GEPRC CineKing

GEPRC CineKing

Brand: Other
Category: Drones
  • 1: Wheelbase: 95mm
  • 2: Camera: RunCam Hybrid 4K
  • 3: Motors: GR1105 5000KV
  • 4: Recommend battery: 3-4S 450-550mAh Batter
  • 5: Weight: 4s version 99g (Without battery)

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

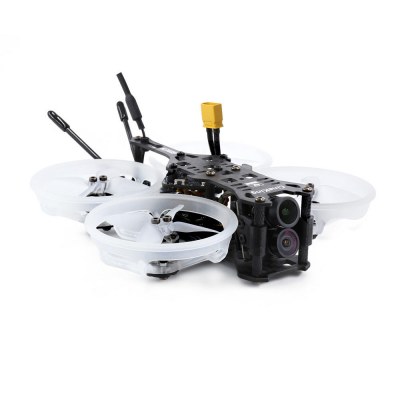

GEPRC CineKing 95mm 4S 2Inch 4K RunCam Hybrid 4K HD FPV Racing RC Drone

Does GePRC CineKing mean anything to you? It’s normal, I told you about it here. It is a Tinywhoop type nano racer, even Cinewhoop oriented, since it is able to film in 4K and provide real-time video feedback. This model is almost the same, with a flight controller based on an F4 processor, a 12A 4-in-1 ESC, 2-inch quadripetal propellers, all supporting Lipo 3S and 4S.

Instead of the 4K Tarsier camera, GePRC has installed a 4K RunCam Hybrid. The principle is the same: it is a box with a dual camera, FPV and 4K, associated with a recording component on a microSD memory card. Unfortunately, I have not yet tested this camera to evaluate it against the Tarsier. The video transmitter is a 5.8 GHz compatible with 40 channels, with a power of 25 mW (the maximum allowed in France), 100 mW or 200 mW. It is optional, with the possibility of adjustment from the remote control and the active OSD, via the IRC Tramp protocol.

A 450 or 550 mAh 3S or 4S battery is required. GePRC offers to deliver the device without a receiver, or with a Flysky A8S, FrSky R-XSR or XM+, or TBS Crossfire Nano receiver. The GePRC CineKing 4K RunCam version will be available from $229.99 at Banggood store.

SPECS

Product Details

Features Runcam Hybrid HD Video Recording: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
Dual Camera System: True 145° Wide Angle 4K HD & FPV Camera
New Propeller Guard: Better airflow, higher flight efficiency.
Using STABLE F411 electronic system, which is very stable.
Full Soft Mounted FC System: Provides a clean operating environment for gyro.
Say Goodbye to Jelly: Stable video and comfortable FOV.
The newly designed GEP-CK2 frame has a more reasonable layout.
Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.
Exquisite Assembly Process: Eliminate any potential installation problems.
Fine pre-tuned PIDs by GEPRC team, you can bind and fly.
Specification Model: CineKing
Frame: GEP-CK2
Wheelbase: 95mm
FC: STABLE F411 SYSTEM
Camera: RunCam Hybrid 4K
Propeller: 2inch
Receiver option: Frsky XM+/ Frsky R-XSR//TBS Nano SE/FlySky
Motors: GR1105 5000KV
Recommend battery: 3-4S 450-550mAh Battery
Weight: 4s version 99g (Without battery)

Specifications(Runcam Hybrid 4K):
HD sensor:SONY 8MP
Analog sensor:SONY 1.3MP
Field of View (FOV):HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
Video Resolution:4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
TV Mode:NTSC (720*480)/PAL (720*576) Switchable
Interface:HD supports UART remote control; FPV(Analog) supports UART fimrware update.
Lens Specs: HD Lens : M10 FPV Lens : M8
Power Input:DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with battery will generate surges and burn the camera.)
Working Current:480mA @5V / 140mA @12V
Max Micro SD Card Supported: Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.

Runcam Hybrid 4K:

Manual

STABLE F411 Micro System:
STABLE F411 Flight Controller(16*16mm)

MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@2A
Size: 21mm*21mm
Mounting holes: 16mm*16mm
Integrated LC Filter
Input voltage 2-4S LIPO
Firmware target: MATEKF411
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)

MCU: BB21F16G
Continuous current: 12A
Input voltage : 2-4S LIPO
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Firmware target: Blheli_S G_H_30
Current meter: 210
STABLE F411 VTX 5.8G 200mW(16*16mm)

Power : PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Integrated LC Filter
