Geprc CineStyle 4K 144mm

Geprc CineStyle 4K 144mm
Brand: Other
Category: Drones
  • Feature 1: Drone Wheelbase: 144mm
  • Feature 2: Frame Model: GEPRC GEP-CS3
  • Feature 3: Bottom Plate Thickness: 3mm
  • Feature 4: Top Plate Thickness: 3mm
  • Feature 5: Material: Full 3K Carbon Fiber & CNC 7075
  • Feature 6: Net Weight: 163g ( without battery , propellers)

Geprc CineStyle 4K 144mm - Price

Geprc CineStyle 4K 144mm - Specs

Product Details

  • Features
    Brand Name: Geprc
    Model: CineStyle 4K
    Item Name: 144mm Stable Pro F7 3 Inch FPV Racing Drone
    Drone Wheelbase: 144mm
    Material: Full 3K Carbon Fiber & CNC 7075
    Frame Model: GEPRC GEP-CS3
    Bottom Plate Thickness: 3mm
    Top Plate Thickness: 3mm
    Net Weight: 163g ( without battery , propellers)
  • Specification
    Geprc Stable Pro F7 Stack-
    Dual Gyro F7 Flight Controller:
    Brand Name: Geprc
    Model: Stable Pro F7
    Item Name: Dual Gyro F7 Flight Controller
    MCU: STM32F722RET6
    IMU: 2x ICM20689(SPI)
    BlackBox: 32Mb onboard Flash
    OSD: BetaFlight OSD w/ AT7456E chip
    Baro:NO
    BEC Output: 5V@3A
    Integrated LC Filter
    Input Voltage: 2-6S Lipo
    Firmware target: EXF722DUAL
    Size: 26x26mm board, 20mm mounting holes (M2)

    Geprc Stable Pro F7 Stack-
    35A BLheli_32 4in1 ESC:
    MCU:STM32F051
    Input:2-6s lipo
    Constant:35Amps
    Burst:45Amps
    Dimensions:31*31mm(including the power pads)
    Mounting Holes:20*20mm,M2
    Supports Dshot1200,Proshot,Oneshot,Multishot
    Current meter: Yes
    Target: GEPRC-BL32-4IN1

    Geprc Stable Pro F7 Stack-
    5.8G 48CH 500mW VTX:
    Input voltage: 5V
    Channel: 48
    Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
    Size: 24 * 26 mm
    Mounting Holes Dimension: 20mm x 20mm
    Connector type: MMCX Connector
    BEC Output: 5V/1A for Camera of FC
    Weight: 2.3g
    - Traditional button
    - IRC Tramp protocol

    Geprc GR1507 3600KV Motor:
    Brand Name: Geprc
    Model: GR1507
    Item Name: 1507 3600KV Motor
    KV: 3600KV
    Configuration:12N14P
    Stator Diamter:15mm
    Stator Length:7mm
    Shaft Diameter:2mm (Hollow)
    Motor Dimension :19.6x29.1mm (Dia.xLen)
    No.of Cells: 3-4S Lipo
    Internal Resistance:104mΩ
    Max Current(15S): 35A
    Rotor: N52H arc magnets
    Bearings: NSK
    Base casing: Al 7075
    Wire AWG: 24AWG
    Weight: 15.5g

    Geprc 3042 3-Blade Propeller:
    Brand Name: Geprc
    Item Name: 3042 3x4.2 3 Inch 3-Blade Propeller
    Quantity: 10 CW & 10 CCW
    Color: Transparent Grey

    Caddx Tarsier 4K 1200TVL Dual Lens Camera:
    Dimension: Camera 19x20mm ; DVR 29x29mm (Hole: 20x20mm)
    Weight: 18g
    Color: Bule
    FOV: 4K F2.8, FOV 150 Degree(16/9) ; FPV FOV 165 Degree(4/3)
    Lens: Dual Lens F2.8/12Mega Video System: NTSC/PAL
    Input: 5-12V

    Optional Receiver Version:
    PNP Version: Without Receiver
    - Frsky XM+ Receiver
    - Frsky R-XSR Receiver
    - TBS Nano SE Receiver
  • Package content
    1x Geprc Cinestyle 4K FPV Racing Drone
    1x Momoda RHCP Antenna
    1x Spanner
    1x 1.5L Type Screwdriver
    2x Antivibration Sponge
    2x 2.4G Antenna Tu

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

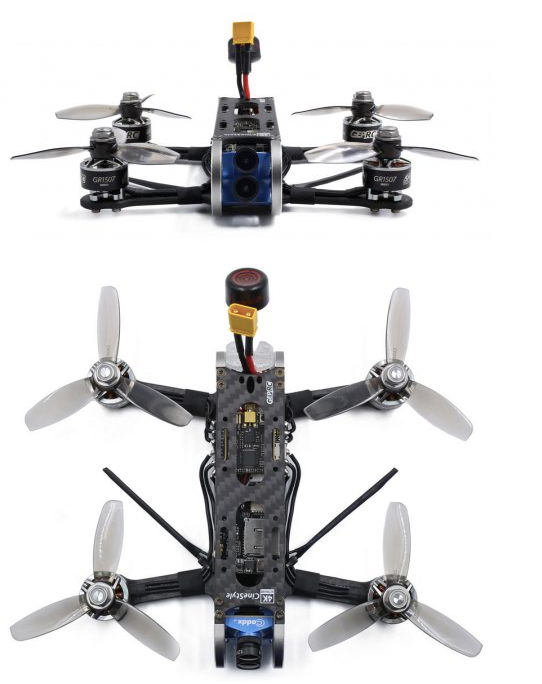

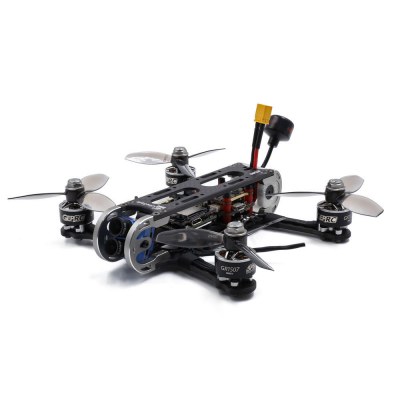

Geprc CineStyle 4K 144mm Stable Pro F7 3 Inch FPV Racing Drone

One of the trends in mid-2019 is the devices equipped with Caddx’s Tarsier camera, which allows real-time video feedback and HD recording (see test here). GePRC’s CineStyle 4K is part of this family, since its 3 mm thick carbon frame and 14.4 cm motor diagonal accommodate the famous camera. The images are recorded in 4K, 2.7K or 1080p on a memory card, they are broadcast at the same time via a 5.8 GHz transmitter of 48 channels with a power of 0 mW (Pitmode), 25 mW (the maximum allowed in France), 100 mW, 200 mW, 400 mW or 500 mW ! The polarized antenna is connected with an MMCX connector.

The engines are 1507 to 3600KV brushless motors for 3-inch 3042 three-bladed Gemfan propellers, all powered by a 35A 4-in-1 ESC and a flight controller based on an F7 processor. With one particularity: the presence of 2 gyroscopes to ensure, according to GePRC, a better stability to the device. The CineStyle 4K 144mm is available without a radio receiver, with a FrSky R-XSR or XM+ receiver, or a TBS Nano SE receiver to go further. To power it, GePRC recommends a 650 to 850 mAh 4S battery (not included). The price? It will be offered from $259.99 at Banggood.
