GEPRC Dolphin

GEPRC Dolphin

Brand: Other
Category: Drones
  • 1: Flight Controller: GEP-20A-F4 AIO
  • 2: Camera: Caddx Turbo Eos2
  • 3: Motor to motor: 153mm
  • 4: Propeller: HQ4*4.3*3 V1S
  • 5: Antenna: RG178 5.8g RHCP

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

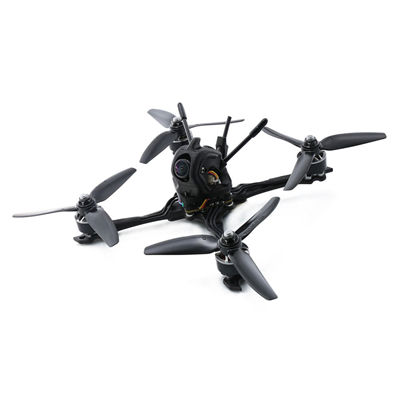

GEPRC Dolphin 153mm 4S 4Inch FPV Racing RC Drone

The GePRC Dolphin looks a bit like a toothpick with its sleek look. It also borrows a lot from other devices with its central plot in the shape of a ghost of Pac-Man and its small shark fin. It is a device with a diagonal of 15.3 cm from motor to motor, which rests on the carbon structure GEP-DX4, with arms of 4 mm thick, and reinforcement plates of 2 mm. The motors are 1507 to 3200KV brushless for 4-inch HQprop V1S three-blade propellers. The heart of the aircraft is based on a GEP-20A-F4 AIO flight controller based on an F4 processor flashed with Betaflight, and incorporating a 20A BLheli_S DShot600 4 in 1 ESC.

The FPV camera is a Caddx Turbo EOS2 associated with a 5.8 GHz video transmitter compatible with 40 channels, adjustable via the IRC Tramp protocol, capable of transmitting at 0 mW (pitmode), 25 mW (the maximum authorized in France), 100 mW or 200 mW. It is equipped with a dipole antenna. The total weight of the set is 136 grams, without the receiver and the battery. It is possible to acquire the device without a receiver, or with a FrSky R-XSR or XM +, or Crossfire Nano RX receiver from TBS. To power it all, GePRC recommends a Lipo 4S from 650 to 850 mAh. The price ? The Dolphin is offered from $161.99 at Banggood Store.

SPECS

Product Details

Features - Remote control: You can choose,Frsky X9d or something like that
- Goggle: Such as FatShak V2 or something like that
- Battery: It is recommended to use 4S 650~850mAh battery
Specification Brand Name: GEPRC
Model: GEP-Dolphin 4 inch
Flight Controller: GEP-20A-F4 AIO
Camera: Caddx Turbo Eos2
Motor to motor: 153mm
Propeller: HQ4*4.3*3 V1S (4 pairs)
Antenna: RG178 5.8g RHCP
Motor to motor: 1507 3200KV
Weight: 136g without battery
Receiver: Without Receiver/Frsky R-XSR / Frsky XM+

Frame: GEPRC GEP-DX4
Carbon: Full 3K carbon fiber
Motor to motor: 153mm
Bottom plate: 2mm
Reinforce plate: 2mm
Arms plate: 4mm
