MINGDA D3

MINGDA D3

Brand: Other
Category: 3D Printer
  • 1: LCD Screen: Yes
  • 2: Nozzle quantity: Single
  • 3: Material diameter: 1.75mm
  • 4: File format: G-code,STL
  • 5: Working Power: 24V

Our Rating

The overall rating is based on review by our experts

8
  • Design 8 / 10
  • Features 8 / 10
  • Connectivity 8 / 10
  • Performance 8 / 10

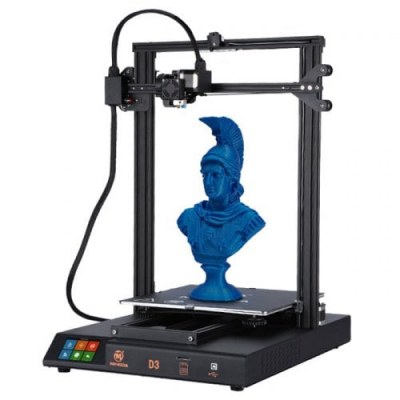

MINGDA D3 320 x 310 x 400mm Quickly Assemble DIY 3D Printer

With the WiFi function you can connect the MINGDA D3 by phone to control the working status of the 3D printer at any time. Equipped with LED lights to illuminate the platform, you can check the printing process, and see the printing effect at night.

Internationally renowned power supply Automatic adaptation regulator High-quality power supply, mature technology, stable power supply,safe and secure 360W wide voltage power supply automatic switching under 110-220V, easy operation.

Independent research and development of the motherboard stable performance, high precision. The motherboard is independently developed and upgraded by MINGDA D3. The four-layer PCB board uses solid-state capacitor filtering to increase ESD static protection, and the performance is more stable TMC ultra-quiet drive, 256 subdivision printing is more elaborate.

Smart DIY Two-steps to install quickly Simplified installation steps, only four screws and racks,and standardized wire, even for the new beginner can install the 3D printer quickly.

SPECS

Product Details

Features With the WiFi function, you can control the machine with the App on mobile phone
Easy to install, only need two steps to install
High-performance near-end extrusion system, improving the printing effect and can also print flexible material etc.
Dual-gears extruding, make the filament feeding more smooth
Z-axis double screw, good synchronization, and make the printing more stable
Filament detector
3.5-inch colorful touch screen, more easy to operation
High-quality platform
The high-quality platform can reach 110 Deg.C quickly, suitable to print small size models with ABS filament.
Detachable platform
Specification Model: D3
Type: DIY
Material (Frames): Aluminium Extrusion
Platform board: Aluminum Base
Engraving Area: no
Engraving Accuracy: no
Nozzle quantity: Single
Nozzle diameter: 0.4mm
Nozzle temperature: Room Temperature to 270 Degree
Product forming size: 320( L ) x 310( W ) x 400( H )mm
Layer thickness: 0.05-0.3mm
Memory card offline print: SD card
LCD Screen: Yes
Print speed: Printing speed: 120mm/s, recommended 20 - 60mm/s
Platform temperature: Room temperature to 100 degree
Supporting material: ABS,PLA,TPU
Material diameter: 1.75mm
Language: English
File format: G-code,STL
Model supporting function: Yes
XY-axis positioning accuracy: 0.0125mm
Z-axis positioning accuracy: 0.0025mm
Voltage: 110V/220V
Working Power: 24V
Host computer software: Cura
Packing Type: unassembled packing
System support: Windows / Linux / MAC
Laser Lifetime: no
Laser Wavelength(nm): no
Voltage Range: no
Current (mA): no
Connector Type: USB
Certificate: CE,FCC
