Geprc Mark4 HD5

Geprc Mark4 HD5

Brand: Other
Category: Drones
  • 1: Wheelbase: 224mm
  • 2: Material: 3K Carbon Fiber
  • 3: Arms plate : 5mm
  • 4: Side plate : 2.5mm
  • 5: Top plate : 2.5mm

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

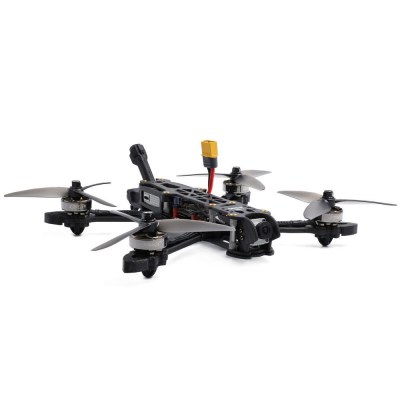

Geprc Mark4 HD5 224mm SPAN F7 BT 5 Inch 4S / 6S FPV Racing Drone

The manufacturer GePRC offers a new racer based on DJI’s digital video feedback system, fully assembled and almost ready for takeoff. It is based on a 22.4 cm carbon frame diagonal from motor to motor, with 5 mm thick arms. At the heart of the device is a GeP-Span F7 flight controller flashed with Betaflight in EF722DUAL firmware, with an active OSD. It is equipped with an altimeter barometer and a Bluetooth module to make wireless adjustments from a smartphone via the SpeedyBee application.

The motors are brushless 2306 to 2450KV for the version designed to accommodate 4S batteries, to 1850KV for the 6S version. The propellers are 5043 three-bladed. The rest of the equipment is DJI’s equipment: a camera and the FPV Air Unit which provide real-time digital video feedback, with recording on board and on the DJI mask, as well as radio link with the DJI remote control. Note that the flight controller is actually equipped with a 5.8 GHz video transmitter from 0 to 600 mW… which is not used in this configuration.

The Mark4 HD5 weighs 401 grams fully equipped without the battery. It is intended to be used, depending on the manufacturer, with 4S batteries from 1300 to 1550 mAh, or 6S from 1050 to 1300 mAh, depending on the version. The price? The device, in 4S or 6S version, is available for $389.99 at Banggood Store.

SPECS

Product Details

Features MCU: STM32F722
MPU: 2xICM20689(SPI)
Build-In: BlueTooth wireless adapter (SpeedyBee APP)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro: BMP280
BEC Output: 5V@2A / 9V@2A
Integrated LC Filter
Firmware target: EXF722DUAL
Size: 36x36mm board, φ4mm with Grommets φ3mm
Power input: 3-6S LiPo
5x UART
8x Motor outputs
Specification Brand Name: Geprc
Model: Mark4 HD5
Item Name: 224mm F7 OSD 5 Inch FPV Racing Drone
Drone Version: PNP ( Without Receiver, Battery)
Optional Version: 4S 2450KV / 6S 1850KV
Weight: 401g ( Without Battery)

MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry: Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
Firmware Version:GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo

Brand Name: Geprc
Model: GR2306.5
KV: 2450KV (4S Version) / 1850KV ( 6S Version)

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 x 21.1 x 20.1 mm
Weight: 8.2 g
