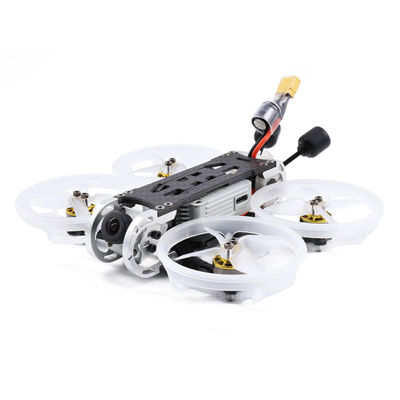

Did you think that DJI-type digital video return was going to be reserved for large devices? This is not the case, given the number of small format devices that appear from manufacturers. The GePRC Rocket is one of those: it’s a nano racer equipped with 2 inch propellers! It rests on a carbon frame 12 cm diagonally from motor to motor, with arms 3 mm thick. The flight controller is a GEP-20A-F4 AIO, which includes the flight controller based on an F4 processor and an ESC of 20A BLheli_S, all on a single component. It is flashed with Betaflight in MATEKF411 firmware. The motors are 1204 to 5000KV brushless models for 2-inch quadruple propellers, with propeller guards to facilitate indoor flights.

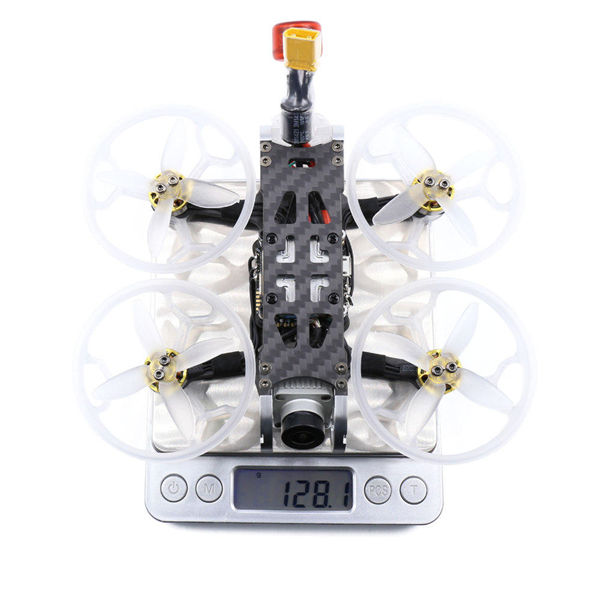

GePRC offers a Rocket Plus and a Rocket Lite. The Plus model is based on the DJI FPV Air Unit kit, with its two antennas. It allows HD video return to DJI headphones, and recording of onboard videos on a memory card (DVR). His weight? 148 grams without the battery. The Rocket Lite version is based on a Vista Caddx kit, with a single antenna. It also allows you to enjoy digital video return in HD to DJI headphones, but it does not offer recording on board – the DVR is to be recorded from DJI headphones. The weight of the Lite model, without battery, is 128 grams.
Both versions are compatible with the DJI radio remote control, which eliminates the need for a radio receiver. But they can also be acquired with an additional receiver, either a Flysky A8S V2, a FrSky R-XSR or XM+, or a TBS Crossfire Nano RX. GePRC recommends a Lipo 4S from 650 to 850 mAh. The manufacturer assures that the flight controller was mounted on shock absorbers so that the images are free of Jello.
The re-Designed Frame is very compact and sturdy, and the propeller cannot be seen in the video.
With DJI Air Unit Digital HD video transmission system, the aircraft can record 1080P 60fps video and Goggle can record 720P video
Equipped with a 2-inch Props guards, very safe for flying indoor and outdoor, and the propeller will not be scratched
Full 3K carbon fiber plate with High-precision Carbon Fiber CNC engrave
Use new GEP-20A-F4 AIO to integrate flight control and ESC system
High efficiency power system, motor GR1204 5000KV and 2 inch 4-blades propeller
The flight controller with soft mounts, so that the gyroscope has a good operating environment
Completely eliminate jelly from footage and stable Image during the flight
Light weight up to 148g (excluding battery)
Professional assembly process, eliminate some potential installation problems
Model: ROCKET Plus
Model: ROCKET Lite
Stack: GEP-20A-F4 AIO
IMU: MPU6000 gyro/accelerometer (SPI)
ESC: BLhelis 20A
FPV System: DJI FPV Air Unit (1080P 60fps Record)
Motors: GR1204 5000KV
Top plate thickness: 3mm
bottom plate thickness: 3mm
Weight: 148g(without battery)
Battery: Recommended use 4S 650-850mAh ( Not included )
