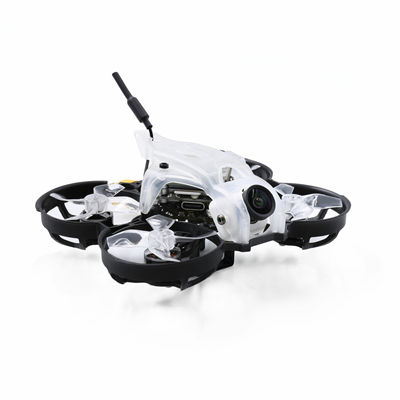

GEPRC Thinking P16 HD

GEPRC Thinking P16 HD
Brand: Other
Category: Drones
  • 1: Camera: Caddx Vista Nebula
  • 2: Motor to motor:79mm
  • 3: Antenna:5.8G
  • 4: Motor:GR1103 8000KV
  • 5: Flight Controller:GEP-12A-F4 AIO
  • 6: Gyro:MPU6000

GEPRC Thinking P16 HD - Price

GEPRC Thinking P16 HD - Specs

Product Details

  • Features
    Caddx Vista Nebula brings HD FPV experience
    Whoop style frame with prop guards. Safe to fly indoor and around soft objects.
    Stable GEP-12A-F4 AIO flight control with Betaflight OSD.
    High-efficiency powertrain provides 4 minutes of indoor flying.
    Compact design, 79mm from the motor to motor.
    Weighs only 64g w/o battery and receiver.
  • Specification
    Brand:GEPRC
    Item:Thinking P16 HD
    Flight Controller:GEP-12A-F4 AIO
    Camera: Caddx Vista Nebula
    Motor to motor:79mm
    Propeller:Gemfan 1635
    Antenna:5.8G
    Motor:GR1103 8000KV
    Weight:64g without battery
    Receiver:Without Receiver(PNP)/Frsky R-XSR / Frsky XM+ / FlySky A8S / TBS NanoRX

    Flight Controller: GEP-12A-F4 AIO
    MCU: STM32F411
    Gyro:MPU6000
    OSD:BetaFlight OSD w/ AT7456E chip
    Firmware target: GEPRCF411
    ESC: 12A * 4 BLHeli_S (Dshot/Multishot/OneShot)
    VTX: 5.8GHz (48 Channel IRC Tramp,PIT/25/100/200mW)
  • Package content
    1x Thinking P16 HD CineWhoop Drone
    4x GEMFAN 1636
    2x Battery strap 15*120
    1x 1.5mm L screwdriver
    1x 5.8G Antenna

Our Rating

The overall rating is based on review by our experts

8.0 4.0 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

GEPRC Thinking P16 HD 40mm 3S Cinewhoop Whoop FPV Racing Drone

It is the first nano racer pre-equipped with a DJI compatible digital video return system based on the Caddx Vista case and the Caddx Nebula camera. The latter is small and light, which allows the Thinking P16 HD to do without a rigid carbon plate, for the benefit of an assembly based on a plastic structure of 7.9 cm diagonal from motor to motor with protections integrated propellers. The motors are 1103 to 8000KV brushless for Gemfan 1635 quadruple propellers. The flight controller is a GEP-12A-F4 AIO. As the name suggests, it is based on an F4 processor and includes a 12h BLheli_S ESC 4 in 1. He is flashed with Betaflight. The antenna which accompanies the Vista box is a dipole, and not the usually supplied Cherry polarized antenna, probably to gain a few grams.

The Thinking P16 HD weighs 64 grams without the battery. It will be available without a radio receiver, in which case it is enough to have the DJI radio remote control so that it is ready to fly. It will also be offered with a Crossfire Nano receiver from TBS, or an XM + or R-XSR from FrSky, or an A8S V2 from Flysky. To take off, GePRC recommends a Lipo 3S of 300 mAh, which ensures according to the manufacturer about 4 minutes of autonomy. The price ? The Thinking P16 HD will be offered from $239.99 at Banggood (without shipping, without taxes).
