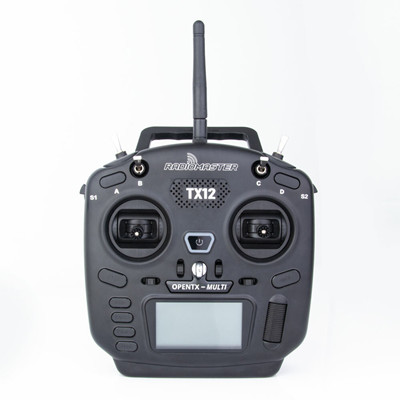

RadioMaster TX12

RadioMaster TX12
Brand: Other
Category: Drones
  • 1: Weight: 363g
  • 2: Frequency: 2.400GHZ-2.480GHZ
  • 3: RF Chip: Single-chip Multi-protocol
  • 4: Transmitting Power: 20dbm
  • 5: Antenna Gain: 2db
  • 6: Voltage Range:6.6-8.4v DC

RadioMaster TX12 - Price

RadioMaster TX12 - Specs

Product Details

  • Features
    Range: > 2km @ 20dbm (depending on receiver)
    Radio Firmware: OpenTX(Transmitter)/ Multi-Module(RF module)
    Channels: Up to 16 (depending on receiver)
    Display:128*64 Monochrome LCD display
    Gimbal: High precision potentiometer gimbals
    External module:JR/FrSKY/Crossfire compatible
    Upgrade Method: USB/SD card* & OpenTX Companion PC software
  • Specification
    Brand Name: RadioMaster
    Item Name:TX12 Transmitter
    Weight: 363g
    Frequency: 2.400GHZ-2.480GHZ
    RF Chip: Single-chip Multi-protocol(CC2500)
    Supported Protocols: Corona, Hitec, Futaba S-FHSS,Frsky D16/D8, RadioLink, Graupner HoTT
    Transmitting Power: 20dbm
    Antenna Gain: 2db
    Working Current: 160mA@8.4V
    Voltage Range:6.6-8.4v DC
  • Package content
    1x TX12 Transmitter

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

RadioMaster TX12 16ch OpenTX Multi-Module Compatible Digital Proportional Radio System Transmitter for RC Drone

This radio control looks like déjà vu? It’s normal, it’s an evolution of the T12 Jumper (see the test here). The base remains the same: it is a small (17 x 15.9 x 10.8 cm) and rather light (363 grams) radio control, running OpenTX firmware.

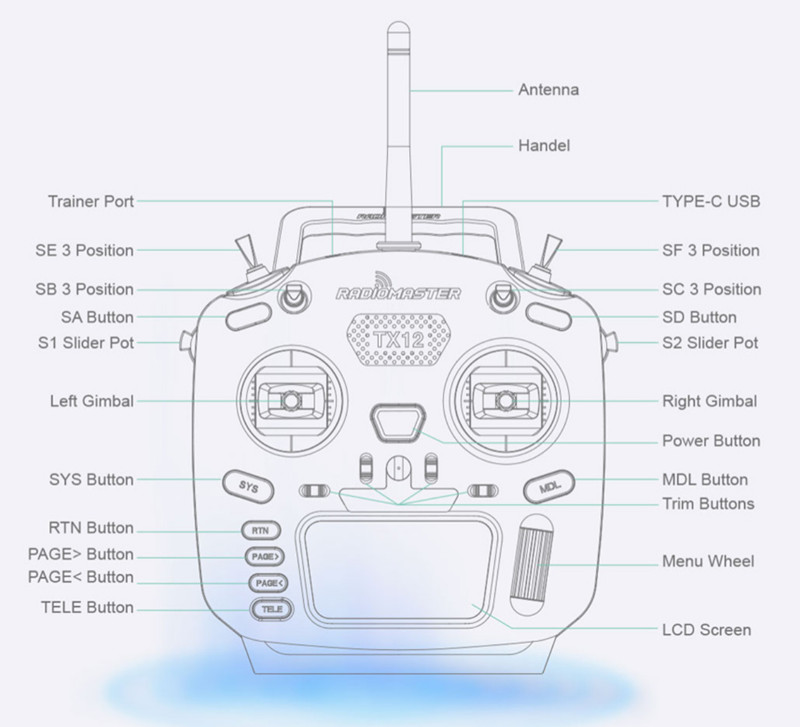

The TX12 is equipped with an internal multiprotocol module compatible with FrSky, Flysky, Spektrum, Futaba, Hubsan, Walkera, Syma, Graupner Hott, RadioLink, etc. receivers. It is capable of accommodating another radio transmission module in an external JR format bay. For example a Crossfire module from TBS… The antenna is removable. The handle at the back folds up for transport. The connector for connection to a computer, for example to drive a simulator, is a USB-C. The 3 position switches A and D are replaced by on/off buttons. Losing possibilities? Certainly, but the 2 position switches E and F are now 3 positions.

To control the OpenTX firmware interface, the TX12 offers a metal thumbwheel and several buttons. The battery compartment can accommodate two 18650 Li-Ion batteries or a Lipo 2S. The USB-C connector allows the battery to be recharged without having to remove them from the radio! The price? The TX12 radio control is proposed at $69.99 at Banggood.
