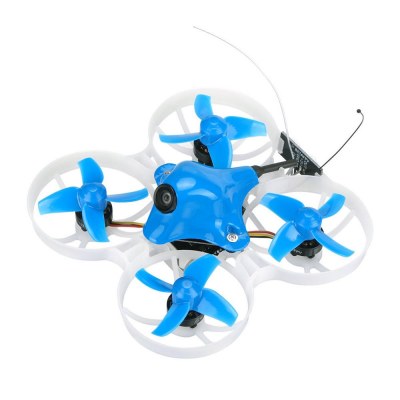

BetaFPV Beta75X 2S

BetaFPV Beta75X 2S

Brand: Other
Category: Drones
  • 1: High-performance STM32F405 processor
  • 2: FC boards
  • 3: Durable and light enough frame
  • 4: Total weight of 41g
  • 5: Whole drone no soldering

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

BetaFPV Beta75X 2S Whoop Micro F4 OSD FPV Racing Drone

The BetaFPV family is expanding with a new member, the Beta75X HD. It takes the same features as the 75X (3S version, a little different from the one I tested here, in 2S), but replaces the classic FPV camera with a hybrid HD and FPV model. The Beta75X HD is based on 1103 to 8000KV brushless motors powered by a 4 in 1 12A ESC integrated in the flight controller. The propellers are 4 cm Gemfan quadripal models (1.5 mm diameter motor shaft).

The video transmitter is a 5.8 GHz 48-channel model capable of transmitting at 25 mW (the maximum allowed in France) or 200 mW to go further, outdoors or indoors. The camera is a Caddx Turtle V2, a 1200TVL model for the FPV part, and capable of recording in 1920 x 1080 pixels at 60 frames per second. The device is equipped with a current sensor, the possibility to adjust the video transmitter with the remote control via the OSD active with SmartAudio.

The radio receiver is available in FrSky Non-Eu, FrSky EU-LBT, DSMX, Flysky, Futaba or Crossfire. You may also prefer a version without a receiver to install your own. The weight of the device, excluding battery, is 57.4 grams. BetaFPV suggests the use of 300 mAh 3S batteries with an XT30 connector. The Beta75X HD is available from $170 at BetaFPV (without shipping, without taxes). What do we think about it? This is a competitor of Happymodel’s Mobula7 HD and GoFly’s Scorpion 80 HD. It will be interesting to know if the camera is free of vibrations to ensure beautiful HD images. The published tip (here) for the Mobula7 HD will probably be very useful with the Beta75X HD…

SPECS

Product Details

Features - With the high-performance STM32F405 processor FC boards and tuned Betaflight Omnibus 3.5.0 firmware
- Durable and light enough frame is customed for the BETA75X. A total weight of 41g gives pilots a good balance of weight and nice punch on a 2S battery.
- Whole drone no soldering or tinkering necessary. Customed lightest 1103 11000KV motors with cable connectors. Just plug and play.
- 300mAh 2S high rate battery is recommended in default ( This Version doesn't include battery).
Specification Brand name: BetaFPV
Item name: Beta75X 2S FPV Racing Drone
Version: PNP ( Without receiver, battery and radio transmitter)

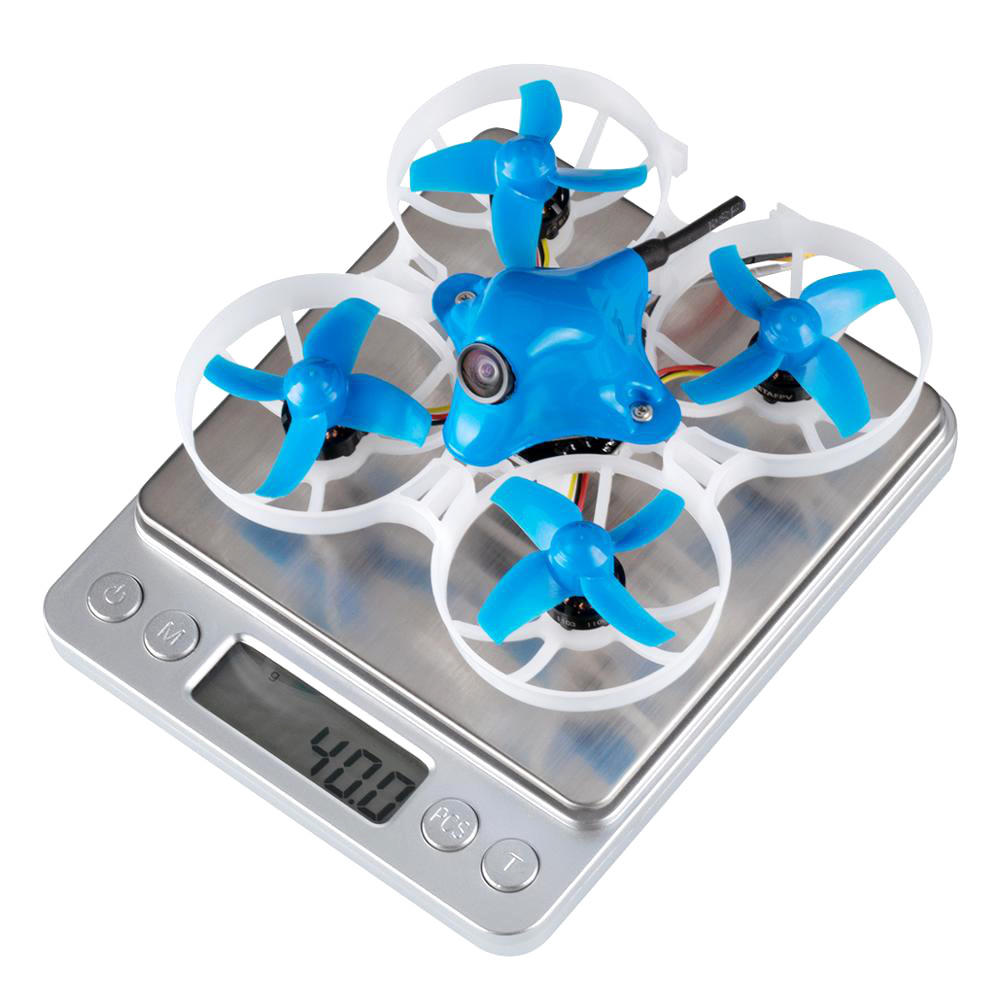

Weight: 41g (without battery)
Motors: 1103 11000KV with connector
Props: 40mm 4-blades props, 1.5mm shaft hole
Camera tilt angle: 35 degree

CPU: STM32F405
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
OSD: Built-in BETAFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Smart Audio port is available for radio control VTX


Support BLheli/BLHELI_S suite Pass-through ready
Dshot600 in default
Input voltage: 2S lipo
Cotinue current: 10A
Peak current: 15A
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G

Output power: 0mW, 25mW and 200mW (Adjustable)
Smart Audio function is included for radio control
Antenna: Dipole ANT
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
TV System: NTSC
Field of view: 100-120 degrees with 1/4 lens
