GEELANG WASP V2
-
1: Use Play F4 flight controller
-
2: Prepare Smartaudio
-
3: Support Betaflight adjustment
-
4:
-
5:

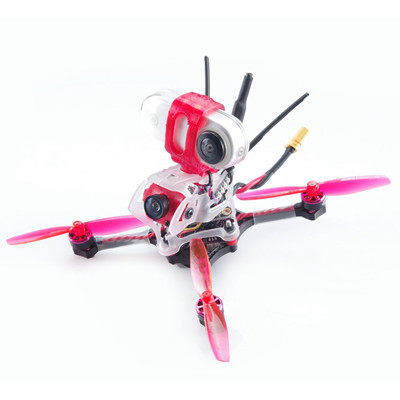

35g GEELANG WASP V2 100mm Wheelbase Play F4 Whoop 2S FC 4 In 1 ESC Toothpick FPV Racing Drone
It’s a Toothpick, at least it has the characteristics with a minimalist structure and two-bladed propellers. The Wasp V2 is based on a carbon structure with 4 mm thick arms, it measures 7.9 x 7.9 x 4.5 cm for a weight of 35 grams without the battery. The motors are brushless 0802 to 14000KV for Gemfan two-bladed propellers of 6.5 cm diameter. At the heart of the system is a flight controller based on an F4 processor, flashed with Betaflight, with an integrated OSD, and associated with an ESC 4 in 1 of 5A BLheli_S Dshot600.
The FPV camera is an 800TVL NTSC model, coupled with a 5.8 GHz analog video transmitter compatible with 40 frequencies, capable of transmitting at 25 mW, 100 mW and 200 mW, all adjustable via SmartAudio and equipped with a dipole antenna. The device is available without a radio receiver, or with a choice of a DSMX, Flysky, Futaba AC900, FrSky D8, FrSky XM, FrSky D16 Non-EU, or Crossfire Nano RX compatible receiver from TBS. To power the Wasp V2, Geelang recommends a Lipo or LiHV 2S from 350 to 450 mAh, to be connected with an XT30 connector.
Propellers and motors are matching, in pink, and the central fairing is translucent white. It holds the FPV camera and allows to tilt it. LEDs are also housed in the fairing. The Wasp V2 is shown with an Insta360 GO camera in a TPU bracket. Of course, this camera is not delivered with the camera, but the TPU bracket is included.
SPECS
Product Details
| Features |
1. Use Play F4 flight controller to support 1-2s lithium battery power. Integrated Betaflight OSD function, display the flight voltage, receiver signal, and can observe the situation in real time during the flight. 2. Prepare Smartaudio, change the VTX frequency band and channel through OSD. 3. Adjust the settings and PID of the flight controller via OSD 4. 2S ultralight toothpick drone has strong power, low noise and long flight time. 5. Support Betaflight adjustment, multiple flight modes, carefully adjusted by the original factory, suitable for novice flight practice, stable style. 6. The nacelle cover is made of a one-piece injection molded plastic of a special material. Sturdy structure and light weight. It supports multiple camera adjustments. If there is enough space, the heat dissipation effect will be better. 7. The receiver version is used independently, and the electronic control is more stable. The flight control adopts the newer version of bf4.2, the ESC adopts version 16.77, the bidirectional DSHOT mode and the gyroscope RPM filter are turned on, making the flight control more stable. Using the latest GL0802 motor with a power input of 2S and a 65mm two-blade propeller, the efficiency is extremely high. Flight control is stable. 8. Double-sided RGB LED ready. 9. The thickness of the fuselage carbon plate material is 4mm, which will not deform or vibrate during high-speed flight. 10. The whole machine is controlled at about 35 g to achieve ultra-high and flexible control. Body weight becomes a professional indicator. |
| Specification |
Brand: GEELANG Item Name: WASP V2 2S Toothpick FPV Racing Drone Wheelbase: 100mm Size: 79x79x45mm Weight: 35g (without battery) |
