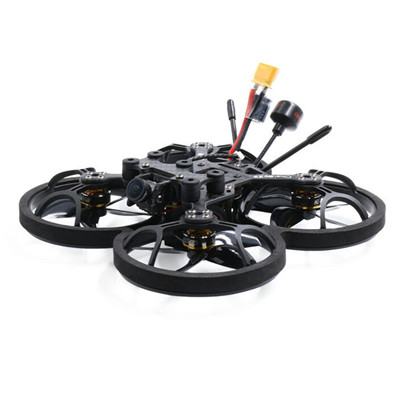

GEPRC CineLog 25

GEPRC CineLog 25
Brand: Other
Category: Drones
  • 1: New camera damping system
  • 2: Brand-new exclusive pusher frame
  • 3: Low noise optimization
  • 4: Long range flight
  • 5: Low center of gravity design
  • 6: Adjustable lens angle

GEPRC CineLog 25 - Price

GEPRC CineLog 25 - Specs

Product Details

  • Features
    1. New camera damping system
    2. Brand-new exclusive pusher frame
    3. Low noise optimization
    4. Long range flight
    5. Low center of gravity design
    6. Perfectly Compatible with most of mainstream cameras
  • Specification
    Brand: GEPRC
    Item Name: CineLog 25 Quadcopter Analog Version
    Frame: GEP-CL25
    Wheelbase: 109mm
    Flight Controller: GEP-20A-F4
    MCU: STM32F411
    IMU: MPU6000(SPI)
    OSD: BetaFlight OSD w/ AT7456E chip
    ESC: BLheli_S 20A
    VTX: 5.8G 600mW VTX
    Camera: Caddx EOS2
    Props: GEMFAN D63-5
    Motors: GR1204 3750KV
    CineLog25 Analog Weight: 111.1g(Without battery)
    Battery: Recommended 4S 450-750mAh
  • Package content
    1x CineLog Quadcopter Analog Version
    4x D63-5 Props(Pair)
    1x GOPRO Lite 3D TPU Seat
    2x EVA Pad
    2x Battery non-slip mat
    2x Batterystrap
    1x screwdriver

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

GEPRC CineLog 25 4S 2.5″ CineWhoop Version analogique FPV Racing RC Drone

The world of Cinewhoop keeps expanding! Here is the CineLog 25 HD, a camera designed to shoot in crowded environments, with engines that are mounted in a Pusher version. It competes with the Beta95X V3 from BetaFPV, or the recent Flipo95 from UrUAV.

It is based on a GEP-CL25 carbon structure with a diagonal of 10.9 cm from engine to engine, enhanced by propeller protections. The flight controller GEP-20A-F4 is flashed with Betaflight. It is based on an F4 processor and an ESC 4 in 1 of 20A. The motors are brushless GR1204 at 3750KV for D63-5 5-blade propellers. The device is designed to be powered by 4S batteries from 450 to 750 mAh, with an XT30 connector. A TPU support for GoPro Naked camera is provided with the device.

All are delivered either without a radio receiver (you have to install your own or use a DJI radio control in the case of HD versions), or with a FrSky R-XSR receiver, or a Crossfire Nano RX from TBS. The CineLog 25 is offered in a version with analog video return, based on an EOS2 camera from Caddx and an analog 5.8 GHz video transmitter capable of transmitting in 25 and 600 mW.
